Mechanism

JTL-101Y

D/A Conversion

ESS Hyper Stream

DAC IC

ES9016

Digital Filter

ES9016

Noise Shaper

ES9016

Low Pass Filter stage

HDAM

Output Buffer

HDAM SA2

Headphone amp

HDAM SA2

Frequency Response

2 Hz - 20 kHz

Dynamic Range

100 dB

Signal to Noise Ratio

110 dB

Total Harmonic Distortion

0.00002

Channel Separation

105 dB

Metal Front Panel

Yes

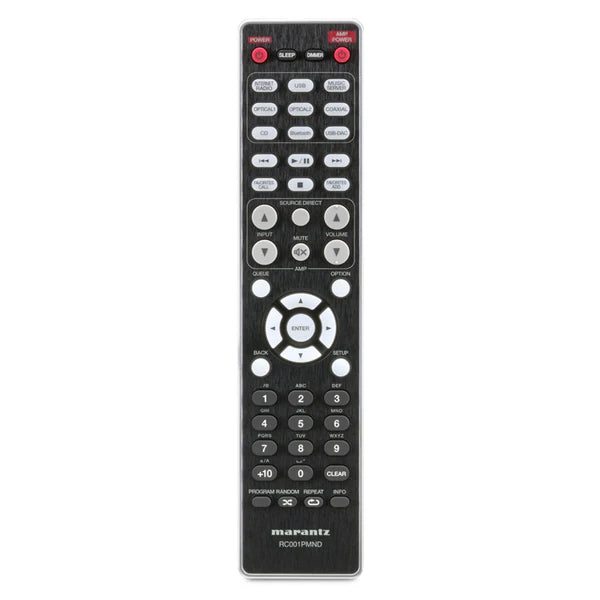

Remote Control

RC001PMND

Power Consumption in W

42

Standby Consumption in W

0.3

Auto power off

Yes

Detachable Power Cable

Yes

Maximum Dimensions (W x D x H) in mm

440 x 341 x 106

Weight

8

Network audio streaming

Yes

Spotify Connect* / Tidal* / Deezer* / others *

Yes

AirPlay Audio Streaming

Yes

Internet radio

tunein

HEOS Multiroom and Streaming

Yes

USB input for memory stick

Yes

DAC operation mode: USB-B / Coax / Optical

Yes

Asynchronous mode rear USB-B

Yes

Bit-perfect transmission

Yes

USB-B DSD Audio Streaming (DoP): DSD2.8 / DSD5.6 / DSD11.2

Yes

Signal isolator for DAC Mode operation

Yes

Jitter Reducer

Yes

HDAM version

HDAM+HDAM SA2

High Grade Audio Components

Yes

Symmetric circuit layout

Yes

Extra metal plate for chassis strengthing

1.5mm

Headphone: Standard / Buffer / Current feedback

HDAM SA2
