Output

• Output impedance: 50 ohms
• Output, digital 0dB level: RCA output - 2.2V r.m.s. nominal

DAC

• DAC circuit: 24 bit Delta-Sigma (bit stream) dual differential 8x over-sampling
• Total correlated jitter: <135 picoseconds peak to peak
• Linearity: <0.1dB down to -96dB
• Frequency response: 10Hz to 20 kHz -0.2dB max.
• Channel separation: >105dB 20 Hz to 20 kHz
• Signal-to-noise ratio: >117dB “a”- wtd.
• Total harmonic distortion: <0.003% 10Hz to 20 kHz

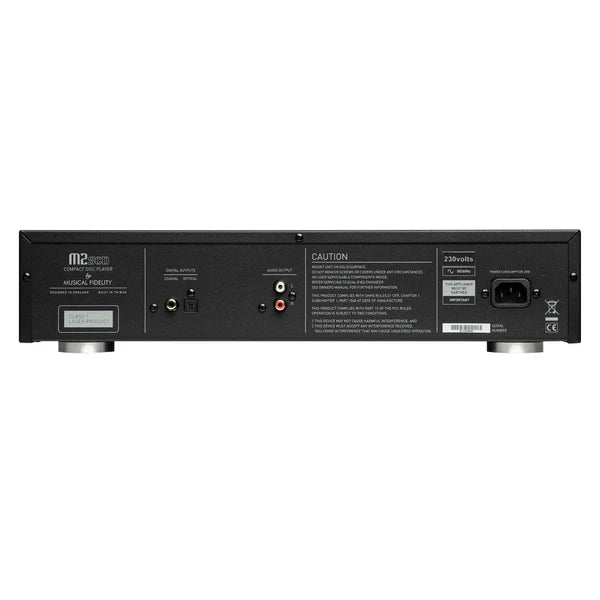

Connections

• Line level outputs: 1 pair line level RCA connectors, left and right outputs
• Digital outputs: 1 RCA coaxial connector SPDIF, 1 TOSLINK optical connector

Power requirements

• Mains voltages 115/230VAC 50/60Hz (factory pre-set)
• 100VAC 50/60Hz (alternative)
• Consumption 20 Watts maximum

Weight

• Unit only, unboxed 6.65 kg (14⅔lbs)
• In shipping carton 10.5 kg (23 lbs)

Dimensions

• Wide 440 mm (17⅓”)
• High, including feet 100 mm (4”)
• Deep (front to back) including terminals 375 mm (14
