The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed with a massive Rotel-built toroidal transformer, the A10MKII delivers 50 Watts per channel of Class A/B power into 8 ohms featuring three RCA inputs and a Moving Magnet Phono stage for vinyl lovers.
The A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience.
Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher into more challenging loudspeakers.

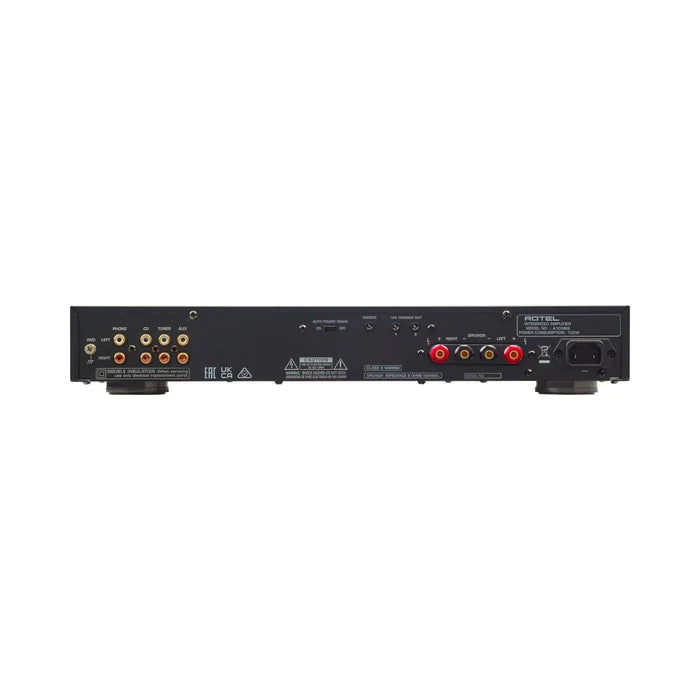

All analog sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

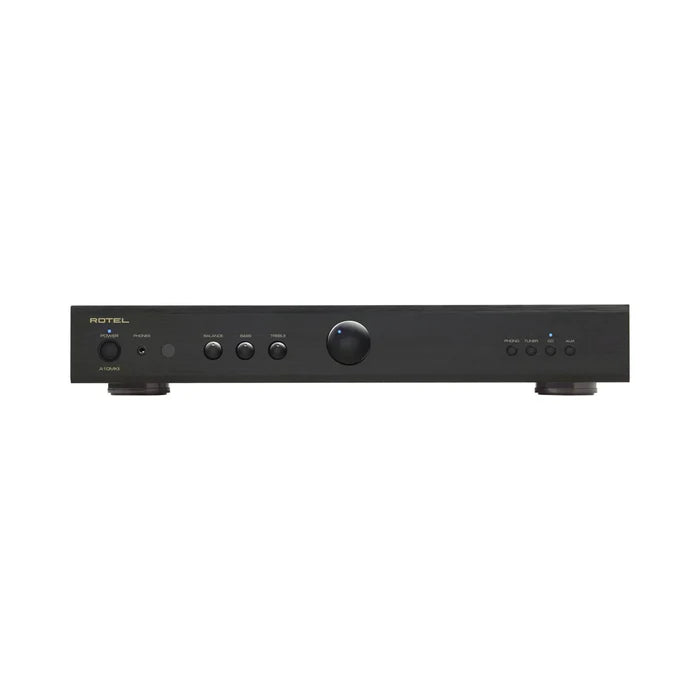

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analog volume controller extend ease of use to the listening seat.
The A10MKII is available in both black and silver colors.
Features
- 50 watts x 2 channels into 8 ohms (20-20,000 Hz) at 0.03% THD
- Class AB amplification with custom-designed toroidal transformer
- frequency response: 10-100,000 Hz (line inputs, -0.5dB/+0.05dB); 20-20,000 Hz (phono input, -0.5/+0.3dB)
- signal-to-noise ratio: 90 dB (line); 85 dB (phono)
- front-panel volume, balance, and tone controls
- detachable power cord
- remote control
Specification
|
Power Requirements
|
120V, 60Hz
|
|
Power Consumption
|
150W
|
|
Standby Power Consumption
|
<0.5W
|
|
BTU Rating (4Ω, 1/8th power)
|
450 BTU/h
|
|
Power Output
|
50W/Ch (8Ω), 60W/Ch (4Ω)
|
|
Total Harmonic Distortion (THD)
|
<0.03%
|
|
Frequency Response
|
Line Level Inputs: 10 Hz - 100kHz, -0.5dB, +0.05dB, Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB
|
|
S/N Ratio (IHF "A" Weighted)
|
Line Level Inputs: 90 dB (Max Volume), Line Level Inputs: 98 dB (Min Volume), Phono Input: 85 dB
|
|
Intermodulation Distortion (60Hz:7kHz, 4:1)
|
<0.03%
|
|
Damping Factor
|
120
|
|
Input Sensitivity
|
Line Level Inputs: 120 mV, Phono Input (MM): 1.5 mV
|
|
Input Impedance
|
Line Level Inputs: 45kΩ, Phono Input (MM): 43kΩ
|
|
Input Overload
|
Line Level Inputs : 4V, Phono Input : 50mV
|
|
Tone Controls
|
±6 dB at 100 Hz / 10k Hz
|
|
Dimensions (W × H × D)
|
430 × 73 × 347 mm (17” x 2 7/8” x 13 5/8”)
|
|
Front Panel Height
|
60 mm (2 3/8”)
|
|
Net Weight
|
6.6 kg (14.5 lbs.)
|
