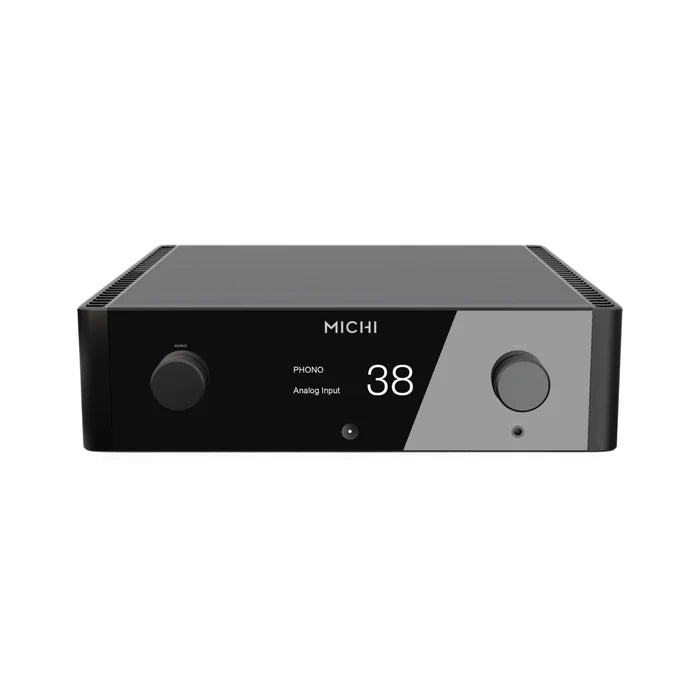

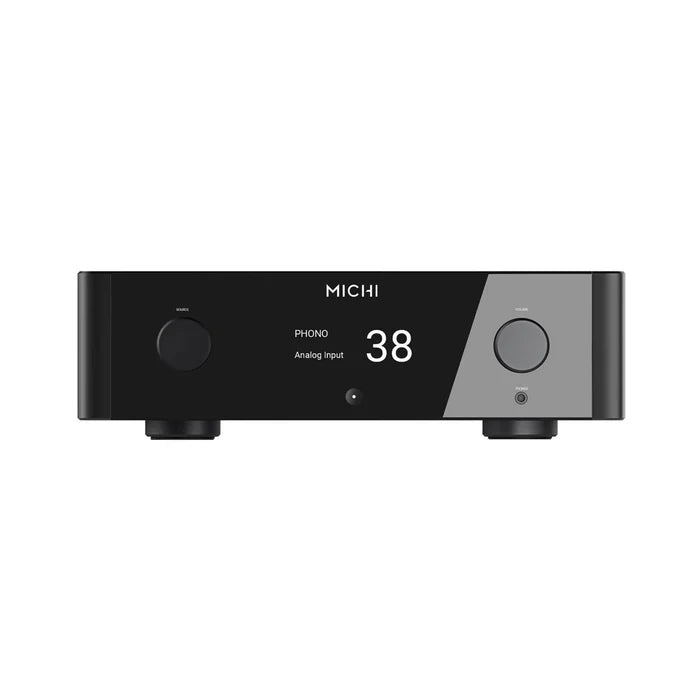

Rotel Michi X3 Series 2 - Audiophile Integrated Amplifier with Bluetooth & DAC
The Michi X3 Integrated Amplifier delivers uncompromised audio performance conveniently packaged in an elegant industrial design. The X3 delivers 350 Watts of Class AB output power into 4 ohm loads maintaining musical accuracy with exceptional acoustic detail from the Analog, Digital, PC-USB, apt-X Bluetooth and Moving Magnet Phono Stage source inputs.
Elegant, efficient, uncompromised. The Michi X3 Series 2 Integrated Amplifier combines 350 Watts of robust Class AB output power and an 8-Channel ESS SABRE Digital to Analog converter to deliver a refined and expansive performance. Analog RCA, XLR, Moving Magnet Phono, aptX™ HD Bluetooth, Coaxial, Optical, and PC-USB rendering MQA are all supported.
The Michi X3 Series 2 Integrated Amplifier delivers an unparalleled listening experience rendering audio with exceptional accuracy, refinement and detail on an expansive soundstage, courtesy of 350 Watts of robust Class AB output power and an 8-Channel ESS SABRE ES9028PRO Digital to Analog converter.
The elegant industrial design of the Michi X3 Series 2 is at home in any living space, and its 350 watts of Class AB output power pairs with nearly any loudspeaker. Analog, Digital, PC-USB (MQA, PCM, DSD), XLR Balanced, and wireless aptX™HD Bluetooth sources are all supported, and a Moving Magnet Phono Stage is included for vinyl lovers.
Performance engineered, acoustically refined, and meticulously manufactured to be operated with ease by music lovers and audiophiles alike.
Michi, expectations amplified.
Features
- 2 x 350 Watts of robust power
- Class AB amplifier design
- Bluetooth with aptX and AAC
- 8-Channel ESS SABRE ES9028PRO Digital to Analog converter
- Balanced XLR inputs
Specification
|
Maximum Power Output
|
350W/Ch (4Ω)
|
|
Continuous Power Output
|
200W/Ch (8Ω)
|
|
Total Harmonic Distortion (THD)
|
<0.008%
|
|
Frequency Response
|
Line Level Inputs: 10Hz - 100kHz (+0dB, -0.4dB), Digital Inputs: 20Hz - 20kHz (0 ± 0.4dB), Phono Input: 20Hz - 20kHz (+0dB, +0.4dB)
|
|
S/N Ratio
|
(IHF "A" Weighted), Line Level Inputs: 102dB, Digital Inputs: 102dB, Phono Input: 80dB
|
|
Power Requirements
|
230V, 50Hz
|
|
Power Consumption
|
500W
|
|
Standby Power Consumption
|
Normal: <0.5W, Network Wakeup: <2W
|
|
BTU Rating
|
1303 BTU/h
|
|
Intermodulation Distortion
|
(60Hz:7kHz, 4:1) <0.03%
|
|
Damping Factor
|
(20Hz - 20kHz, 8Ω) 350
|
|
Channel Separation
|
>55dB
|
|
Input Sensitivity
|
Line Level Inputs (RCA): 340mV, Line Level Inputs (XLR): 540mV, Phono Input (MM): 5.2mV
|
|
Input Impedance
|
Line Level Inputs (RCA): 100kΩ, Line Level Inputs (XLR): 100kΩ, Digital Inputs: 75Ω, Phono Input (MM): 47kΩ
|
|
Input Overload
|
Line Level Inputs (RCA): 3.5V, Line Level Inputs (XLR): 5.5V, Phono Input: 60mV
|
|
Preout Level
|
1.9V
|
|
Output Impedance
|
100Ω
|
|
Tone Controls
|
±10dB at 100Hz / 10kHz
|
|
Coax/Optical Digital Input Signals
|
SPDIF LPCM (Up to 24-bit/192kHz)
|
|
PC-USB
|
USB Audio Class 1 (up to 24-bit/96kHz) USB Audio Class 2 (up to 24-bit/384kHz)* *Driver installation required DSD and DoP support MQA and MQA Studio support Roon Tested support
|
|
Dimensions (W × H × D)
|
485 x 150 x 452mm, 19" × 6" × 17 3/4"
|
|
Front Panel Height
|
132 mm (5.25")
|
|
Net Weight
|
28.9kg (63.7 lbs.)
|
