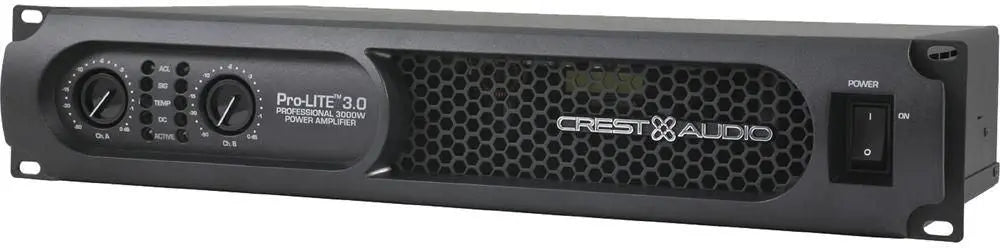

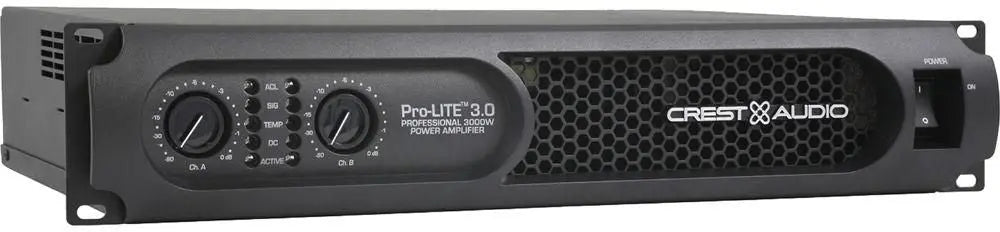

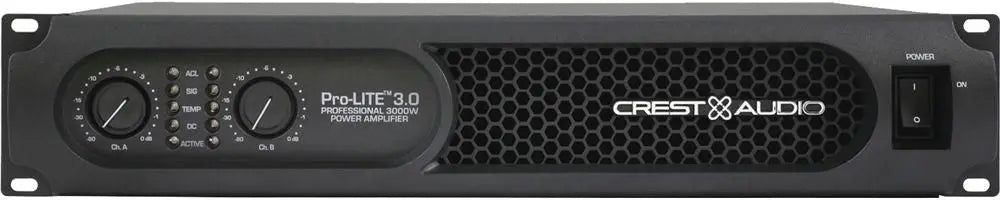

Crest Audio Pro-LITE 3.0 Professional Power Amplifier
Regular price
Rs. 150,000.00
Sale price
Rs. 148,500.00
Unit price
per
1% OFF
-
Description
-
Review
Description
Product Description
- Class D design for high efficiency and lightweight
- Weighs 7.7 kg (17 lbs) for easy transport
- Advanced power supply technology for consistent performance
- Front panel with volume control, output signal, and protection indicators
- Protection against short-circuit, thermal, and overload
- Balanced XLR and 1/4” TRS inputs
- Speakon and binding post outputs
- Active fan cooling for reduced noise and improved longevity
| IN THE BOX | |
|---|---|
| Sales Package | Crest Audio Pro-LITE 3.0 Professional Power Amplifier |
| General | |
|---|---|
| Brand | Crest audio |
| Model | Pro-LITE 3.0 |
| Color | black |
|
Number of Channels
|
2 |
|
Amplifier Power Rating
|
8 Ohms:
450 W per Channel (1 kHz, 0.15% THD)
1550 W Bridged (1 kHz, 0.15% THD)
4 Ohms:
830 W per Channel (1 kHz, 0.15% THD)
3000 W Bridged (1 kHz, 1% THD)
2 Ohms:
1500 W per Channel (1 kHz, 1% THD)
|
|
Frequency Response
|
20 Hz to 28 kHz +0/-3 dB (at 1 W) |
|
Damping Factor
|
> 255 at 8 Ohms |
|
Input Sensitivity
|
0.74 V (at 4 Ohms)
0.71 V (at 2 Ohms)
|
|
Input Impedance
|
15 Kilohms (Balanced)
7.5 Kilohms (Unbalanced)
|
|
Max Gain
|
37 dB |
|
SNR
|
> -100 dBA (at 4 Ohms) |
|
Crosstalk
|
> -70 dB (1 kHz) |
|
Slew Rate
|
> 12 V/?s |
|
Common Mode Rejection Ratio (CMRR)
|
> -76 dB |
|
Crossover
|
Low-Pass:
100 Hz, 18 dB/Octave
High-Pass:
100 Hz, 12 dB/Octave
|
|
Analog Audio I/O
|
2x Combo XLR-1/4" Input
2x speakON NL4 Output
1x speakON NL4 Bridged Output
|
|
AC Power Connector
|
1x IEC |
|
Power Consumption
|
60 W (Idle)
2 Ohms:
540 W (1/8 Power)
1310 (1/3 Power)
4 Ohms:
320 W (1/8 Power)
700 (1/3 Power)
8 Ohms:
190 W (1/8 Power)
400 (1/3 Power)
|
|
Display & Indicators
|
2x LED (Power)
2x LED (DC)
2x LED (Thermal)
2x LED (Signal)
2x LED (Limit)
|
| Dimension | |
|---|---|
| Dimension | 8.9 x 48.3 x 26.7 cm |
| Weight | 5.5 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
