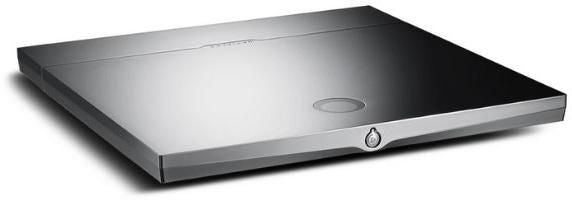

Devialet Expert 220 Pro Audio Amplifier
Regular price
Rs. 749,000.00
Sale price
Rs. 746,900.00
Unit price
per
0% OFF
-
Description
-
Review
Description
Product Description
- Expert 220 Pro embeds the full set of Devialet technologies, as well as an ultra-configurable phono stage, designed for vinyl enthusiasts.
- ADH hybrid amplification delivering the musicality of analog and the power of digital, SAM real-time speaker active matching.
- SAM enables Expert Pro to produce a signal ideally suited to your exact speaker model.
- Expert Pro online Configurator lets you tailor your system to your slightest preference.
- Coaxial or optical digital inputs, USB, AES/EBU, analog phono and line inputs, Ethernet, dual band Wi-Fi.
- Roon and Devialet are thrilled to announce that Expert Pro systems have been awarded Roon Ready certification.
| IN THE BOX | |
|---|---|
| Sales Package |
1 Devialet Expert 220 Pro
1 Expert Remote (3 AAA batteries LR03 1,5V included)
1 User Manual
1 Warranty booklet (5 years)
1 SD card
1 Power cable
1 Pair of gloves
1 Microfibre cloth
|
| General | |
|---|---|
| Brand | Devialet |
| Model | Expert 220 Pro |
| Color | silver |
| Specifications | |
|---|---|
|
RANGE
|
Stereo |
|
EXCLUSIVE TECHNOLOGIES
|
ADH®, SAM®, RAM®, AIR®, EVO®, DAC Magic Wire® |
|
STREAMING SERVICES
|
UPnP
Airplay
Spotify Connect
|
|
DAISY CHAINING
|
Up to 8 units |
|
PRE-AMPLIFIED OUTPUT
|
Optional (on order) |
|
CASING
|
Carved out from a single aluminium block |
|
PHONO STAGE
|
Standard (MM / MC) |
|
POWER SUPPLY
|
Universal 90-240Vac – 50/60Hz
Power cable provided adapted to the country
Patented single stage switching mode topology
High power level: 600W continuous, 4000W peak
High output with power factor correction
|
|
POWER
|
2x220 Watts RMS under 6Ω
|
|
DISTORTION AT FULL POWER
|
0.0005% THD+N
|
|
DISTORTION AT FULL POWER
|
0,00025% (10W / 6Ω)
|
|
DISTORTION AT 10W
|
0.00025% THD+N |
|
DISTORTION AT 10W
|
0,0005% THD+N |
|
SIGNAL-TO-NOISE RATIO
|
130dB |
|
OUTPUT IMPEDANCE
|
0.001Ω |
|
DAMPING FACTOR
|
8000 |
|
BANDWIDTH
|
DC-30kHz @ -0.1dB
DC-95kHz @ -3dB
|
|
PHASE ROTATION
|
0.4° at 20kHz
1.8° at 40kHz
|
|
WI-FI
|
2.4GHz / 5GHz 802.11ac, compatible with 802.11a/b/g/n |
|
ETHERNET
|
RJ45 100/1000 Mbps |
|
USB
|
USB Audio 2.0 Asynchronous
Very low latency
Bi-directionality (for digitisation of the analog sources)
|
|
DIGITAL COAXIAL INPUTS
|
Up to 4x RCA 75Ω |
|
DIGITAL OPTICAL INPUTS
|
1x TOSLINK
Up to 1x miniTOSLINK 3.5mm
|
|
SUPPORTED FORMATS
|
Up to 32bits / 192kHz PCM (USB)
Up to 24bits / 192kHz PCM (AIR®, UPnP, AES/EBU, Coaxial)
Up to 24bits / 96kHz PCM (Optical)
Up to 1bit / 3.072000MHz DSD64 (USB, Coaxial)
|
|
ANALOG INPUTS
|
Up to 2x RCA stereo
Sensitivity adjustable via the Configurator
Advanced phono stage (MM / MC)
|
|
SPEAKER OUTPUT
|
4mm banana plugs, fork connectors or stripped cables
Compatible with all speakers from 8Ω to 2Ω
Short-circuit protection
Active filtering available
|
|
HOME AUTOMATION
|
Up to 1x RS232 3.5mm 115200 bauds (documentation available via the Configurator) |
|
TRIGGER
|
3.5mm trigger connector Trig In and Trig Out |
| Dimension | |
|---|---|
| Dimension | Length: 383mm | Width: 383mm | Height: 40mm |
| Weight |
5.9 Kg
|
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 5 Years |
