Emotiva Rmc-1 16 Channel Dolby Atmos & Dts:x Cinema Processor
Regular price
Rs. 837,500.00
Sale price
Rs. 835,500.00
Unit price
per
0% OFF
-
Description
-
Review
Description
Product Description
- A state-of-the-art surround sound processor - designed from the ground up to serve as the nerve center of a modern home theater or surround sound music system.
- Get the best possible image quality from the latest HDR and Dolby Vision 4k UHD discs, and the advanced audio decoding.
- Audiophile grade AKM4490 Verita DACs, operating in fully balanced Mono mode, on all 16 Main Zone outputs. (Independent AKM4490 DAC for Zone 2.)
- Support for stereo and surround sound PCM digital audio via HDMI.
- Highest quality audio decoding for the latest Dolby Atmos and DTS:X object oriented surround sound formats.
- Highest quality audio decoding for high resolution surround sound formats like Dolby TrueHD and DTS-HD Master Audio.
- Digitally controlled precision analog ladder network volume controls. (Cirrus CS3318 resistor ladder network volume controls on main zone; Cirrus CS3310 resistor ladder network volume control on secondary zones.)
- Integration with universal infrared remote controls and popular infrared and network operated whole-home control systems
- High performance digital AM/FM tuner.
| IN THE BOX | |
|---|---|
| Sales Package | Emotiva RMC-1 and User Documentation |
| General | |
|---|---|
| Brand | Emotiva |
| Model | RMC-1 |
| Color | black |
| Specifications | |
|---|---|
|
Digital Decoding Modes
|
Dolby Atmos®
Dolby TrueHD
Dolby Digital Plus
Dolby Digital 5.1
DTS:Xâ„¢
DTS-HD Master Audio
DTS-HD High Resolution Audio
DTS 5.1
DTS ES Discrete 6.1
PCM-Multi 5.1
PCM-Multi 7.1
|
|
Digital Post Processing Support
|
Dolby Surround.
DTS Neural:X
|
|
Displays and Controls
|

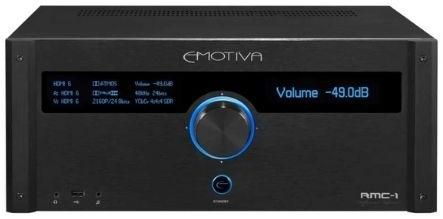

Front Panel Display:
Dual, independently configurable, 64 x 256 resolution, blue OLED displays.
On-Screen Display (OSD):
Configurable full color OSD displayed over live video, including 4k and 3D sources.
Controls and Remote Control Options:
Front panel control via unique multi-axis encoder, which combines a precision rotary encoder and a sensitive four-quadrant joystick type controller.

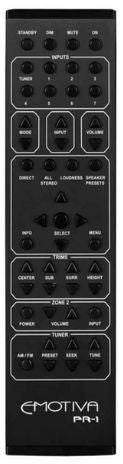

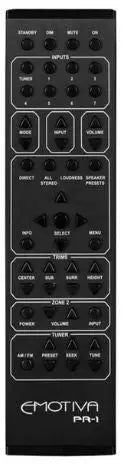

Full sized machined aluminum infrared remote control with discrete buttons for HDMI input selection, trim adjustments, and other major functions.
Remote control apps - available for Apple and Windows computers and Android phones.
Integration with universal infrared remote controls and popular infrared and network operated whole-home control systems.
Four flexible Trigger Outputs can be independently configured to activate amplifiers or other trigger-enabled equipment.
|
|

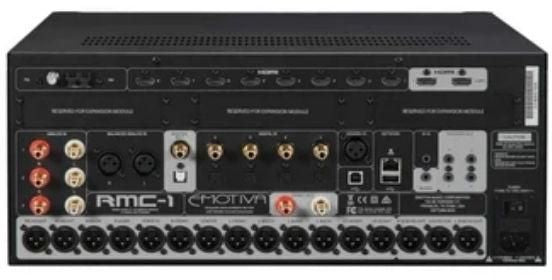

Inputs / Outputs
|
Analog Audio Inputs:
(1) pair; stereo: Reference quality analog audio (balanced XLR).
(3) pairs; stereo: Reference quality analog audio (unbalanced; machined gold-plated RCA connectors).
Analog Audio Outputs:
(1) set; 16 channels: Main analog audio outputs (balanced XLR).
(1) pair; stereo: analog line level Zone 2 output (unbalanced).
(1) high quality 1/8†stereo headphone output.
Digital Video Inputs and Outputs:
(8): HDMI digital video inputs: HDMI 2.0b with HDCP 2.2 (all inputs support HDMI 2.0b and HDR, including dynamic HDR and Dolby Vision).
(2): HDMI digital video outputs: HDMI 2.0b with HDCP 2.2 (one with CEC and ARC). (both outputs support HDMI 2.0b and HDR - including dynamic HDR and Dolby Vision).
Digital Audio Inputs:
Internal high-performance AM/FM tuner.
(4): Toslink optical S/PDIF digital audio (up to 24/192).
(4): Coax (RCA) electrical S/PDIF digital audio (up to 24/192).
(1): AES/EBU (XLR) digital audio.
(1): USB Type B digital audio (UAC2 USB audio up to 24/192k)
Digital PCM and DSD audio supported on all HDMI inputs and USB input
Digital Audio Outputs:
(1): Toslink optical S/PDIF digital audio.
(1): Coax (RCA) electrical S/PDIF digital audio.
Other Inputs:
(2): USB Type A digital data inputs (for firmware updates and future enhancements).
(1): Ethernet port (RJ-45) (network connection for Dirac and remote control applications).
(3): Expansion slots for additional optional custom Input/Output modules
|
| Dimension | |
|---|---|
| Dimension |
Unboxed: 17†Wide x 15.5†Deep x 7†High (not counting feet)
Unboxed: 17†Wide x 15.5†Deep x 7.525†High (with feet)
|
| Weight |
24 lbs / 10.89 kg (unboxed)
32 lbs / 14.51 kg (boxed)
|
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 5 Years |
