Amplifier Type
|
Preamplifier
|
|
Channels
|
15.4
|
|
DTS Compatibility
|
DTS Neural:X, DTS Virtual:X, DTS-HD Master Audio, DTS:X, DTS:X Pro, IMAX Enhanced
|
|
Dolby Compatibility
|
Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Surround, Dolby TrueHD
|
|
Auro 3D Support
|
Yes
|
|
Upmixing Technology
|
Dolby Surround, DTS Neural:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology
|
|
Supported File Formats
|
AAC, ALAC, DSD, FLAC, MP3, WAV, WMA
|
|
Supported Sample Rates
|
Up to 192 kHz / 24-Bit (AAC, ALAC, DSD, FLAC, MP3, WAV, WMA)
|
|
HDR Support
|
Yes, HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
|
|
Pass-Through Support
|
8K60p
|
|
Upscaling
|
1080p to 4K UHD
|
|
GUI
|
Yes
|
|

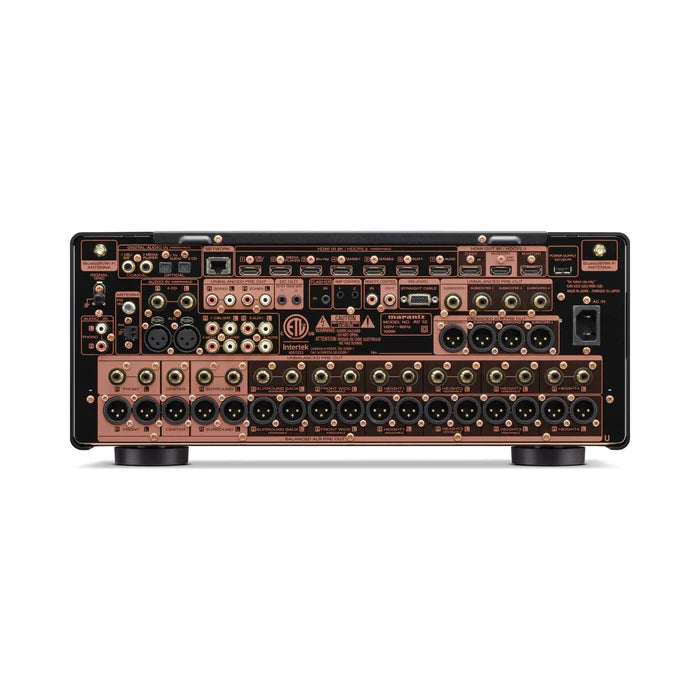

Rear A/V Inputs
|
7x HDMI
2x Digital Coaxial
2x Optical TOSLINK
5x Stereo RCA
1x Stereo XLR
|
|
Rear A/V Outputs
|
3x HDMI Zone 2
2x Stereo RCA Zone 2 / Zone 3 Pre-Out
2x 1/8" / 3.5 mm
4x RCA Subwoofer Pre-Out
5x Mono XLR Subwoofer Pre-Out
8x Stereo XLR Height / Height 2 Pre-Out
|
|
Front I/O
|
1x 1/8" / 3.5 mm Setup Mic Input
1x 1/4" / 6.35 mm Headphone Output
1x USB-A Power Output
|
|
Other Rear I/O
|
1x RJ45 (Ethernet) Input/Output
1x USB-A (Power) Output
2x Wi-Fi Coaxial F-Type Input
1x AM Block Input
1x FM Coaxial F-Type Input
2x 1/8" / 3.5 mm (12 V Trigger) Output
1x 1/8" / 3.5 mm (IR) Input
2x 1/8" / 3.5 mm (Service) Input
2x 1/8" / 3.5 mm (Remote) Input/Output
1x DE-9 (RS-232C) Input
|
|
HDCP Support
|
Yes, Version 2.3
|
|
HDMI Compression Modes
|
4K120AB / 8K60AB
|
|
Audio Return Channel (ARC)
|
ARC, eARC
|
|
HDMI CEC
|
Yes
|
|
Supported Audio Codecs
|
AAC
|
|
Wireless Audio Protocols
|
AirPlay 2, HEOS, Roon Ready, Spotify Connect
|
|
Virtual Assistant
|
Alexa Built-in, Google Assistant Built-in, Siri
|
|
Mobile App Compatible
|
Yes: Android & iOS
App Name: Marantz 2016 AVR Remote
Functionality: Remote Control
|
|
Tuner Type
|
AM, FM
|
|
Power Consumption
|
Active: 90 W
|
|
Dimensions (W x H x D)
|
17.4 x 7.4 x 19.8" / 44.2 x 18.8 x 50.3 cm (Antenna Down)
17.4 x 9.9 x 19.8" / 44.2 x 25.1 x 50.3 cm (Antenna Up)
17.4 x 7.4 x 19.0" / 44.2 x 18.8 x 48.3 cm (Antenna Removed)
|
|
Box Dimensions (LxWxH)
|
22.7 x 21.3 x 12"
|
|
Weight
|
37 lb / 16.8 kg
|
|
Package Weight
|
49 lb
|
