SPECIFICATIONS :

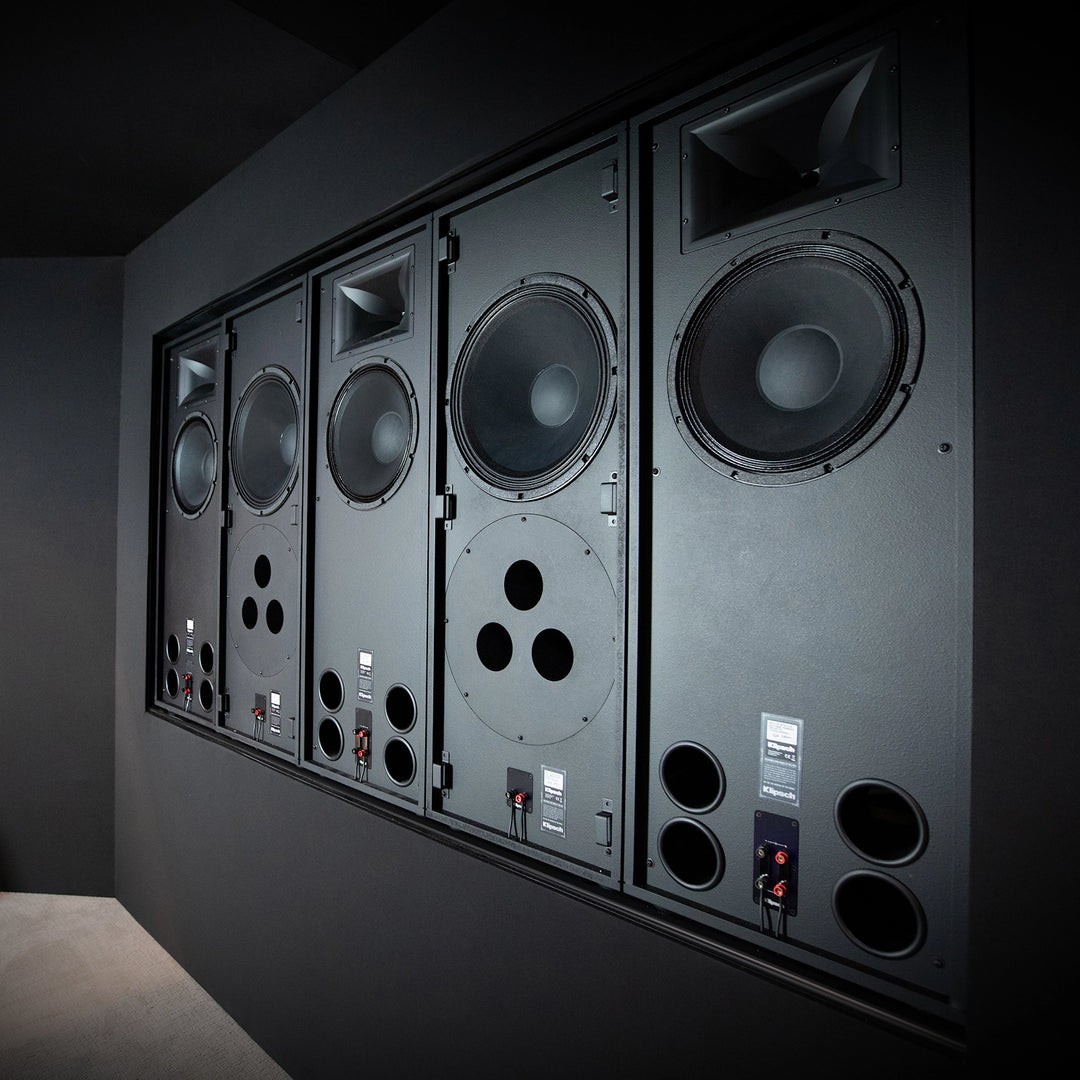

• SPEAKER SYSTEM : Behind-The Screen LCR/SUB System for Screens 112”-121” in Width
• MAX CONTINUOUS OUTPUT : 126 dB
• MAX PEAK OUTPUT : 132 dB
• SYSTEM FREQUENCY RESPONSE : 18 - 20kHz
• POWER HANDLING : LCRs (Each) : 200W Continuous, 800W Peak, SUBS (Each) : 600W Continous, 2400W Peak
• SYSTEM SENSITIVITY : 107 dB, 2.83V @ 1m, 1/2 space
• HORIZONTAL COVERAGE : 90° +/- 20 (1.1kHz - 20kHz)
• VERTICAL COVERAGE : 60° +/- 20 (2.2kHz - 20kHz)
• NOMINAL IMPEDENCE : 8 Ohm
• MINIMUM RECOMMENDED
• AMPLIFIER POWER : LCRs : 200W RMS, SUBs : 500W RMS
• HIGH-FREQUENCY DRIVERS : (3) K-702 1.75” Titanium Compression Driver Mounted on a K-603-M Horn
• LOW-FREQUENCY DRIVERS : (3) K-45-ST 15” Polyfiber Woofers
• SUBWOOFER DRIVERS : (2) K-49-EP 18” Polyfiber Woofers
• ENCLOSURE TYPE : Double Braced Dado and Rabbit MDF
• INPUTS : Dual 5-Way Binding Posts
• SYSTEM HEIGHT : 55” (139.7 cm)
• SYSTEM WIDTH : 101.25” (257.18 cm)
• SYSTEM DEPTH : 20.25” (51.44 cm)
• SYSTEM WEIGHT : 648 lbs (293.93 kg)
• FINISH : Textured Black Paint
• RECOMMENDED SCREEN WIDTH : 102” - 112”
• RECOMMENDED SCREEN SIZE
• (DIAGONAL) : 16:9: 117” - 129”, 1:2.35: 110” - 12
