Martin Logan Dynamo 1100x Powered Subwoofer
Regular price
Rs. 200,100.00
Sale price
Rs. 200,000.00
Unit price
per
0% OFF
-
Description
-
Review
Description
Product Description
- 12" inverted surround poly cone woofer.
- 1,300-watt peak amplifier.
- Sealed, non-resonant cabinet.

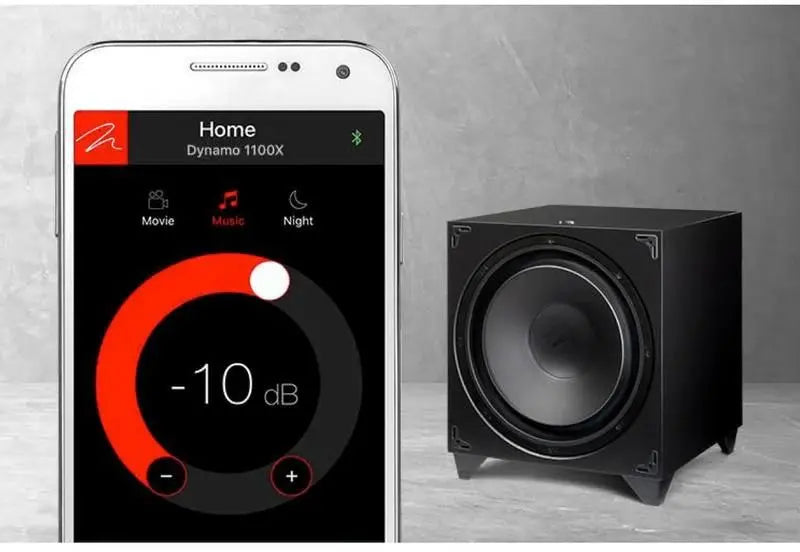

- Smartphone app for digital control.
- Anthem Room Correction (ARC®) via app or PC.
- Multiple connection options: XLR, RCA, speaker level inputs, and 12V trigger.
| IN THE BOX | |
|---|---|
| Sales Package | Martin Logan Dynamo 1100X powered subwoofer, User documentation |
| General | |
|---|---|
| Brand | Martin logan |
| Model | 1100X |
| Color | black |
| Frequency Response | 22–200 Hz ±3 dB. Anechoic in LFE mode. |
| Impedance |
RCA: 8,300 Ohms
Speaker Level: 2,000 Ohms (red to black)
XLR: 28,000 Ohms (pin 2 to 3)
|
| Low Frequency Transducer | 12†(30.5cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design. |
| Amplifier | 650 Watts (1,300 peak) |
| Software |
Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC
|
| Room Correction | Anthem Room Correction (ARC) |
| Controls (Backplate) |
Level: Min–Max
Setting Control: Local, App
Power Mode: On, Trigger, Auto
|
| Controls (via Bluetooth) |
Level: -40 to 12dB
Low-Pass Filter (Frequency): 35–120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0–180° (1° Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
20–30Hz Level: ±10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20–120Hz): On, Off, Pause (Frequency)
|

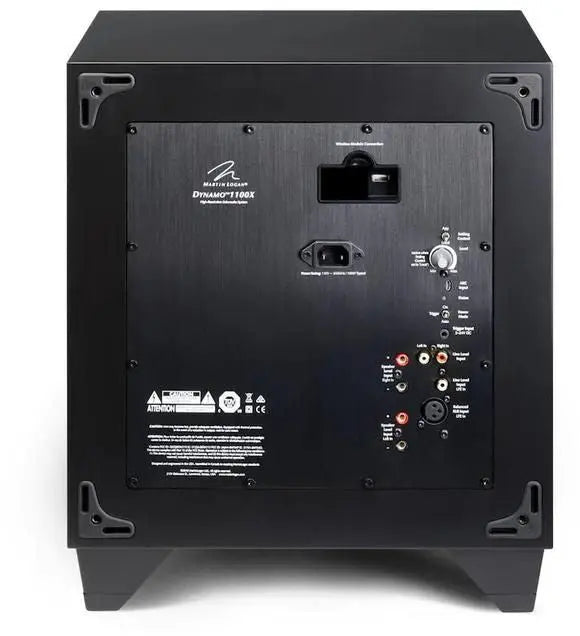

| Inputs (Audio) |
Line Level: Left, Right, and LFE
Speaker Level: Left and Right via banana jacks XLR: LFE
|
| Inputs (Audio, Wireless) | SWT-X Receiver & Transmitter (sold separately) |
| Inputs (Other) |
USB: Micro USB (for ARC/Firmware Update)
Trigger: 3.5mm, 5–24 DC
|
| Power Draw | Typical: 100W, Max: 600W, Idle: 15W, Standby: 0.5W |
| Dimension | |
|---|---|
| Dimension | 43.6 cm x 38cm x 41.1cm |
| Weight | 20.9 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 3 year |
