Analog turntable with Bluetooth® Qualcomm® aptX™ transmitter that streams music from LP Records wirelessly

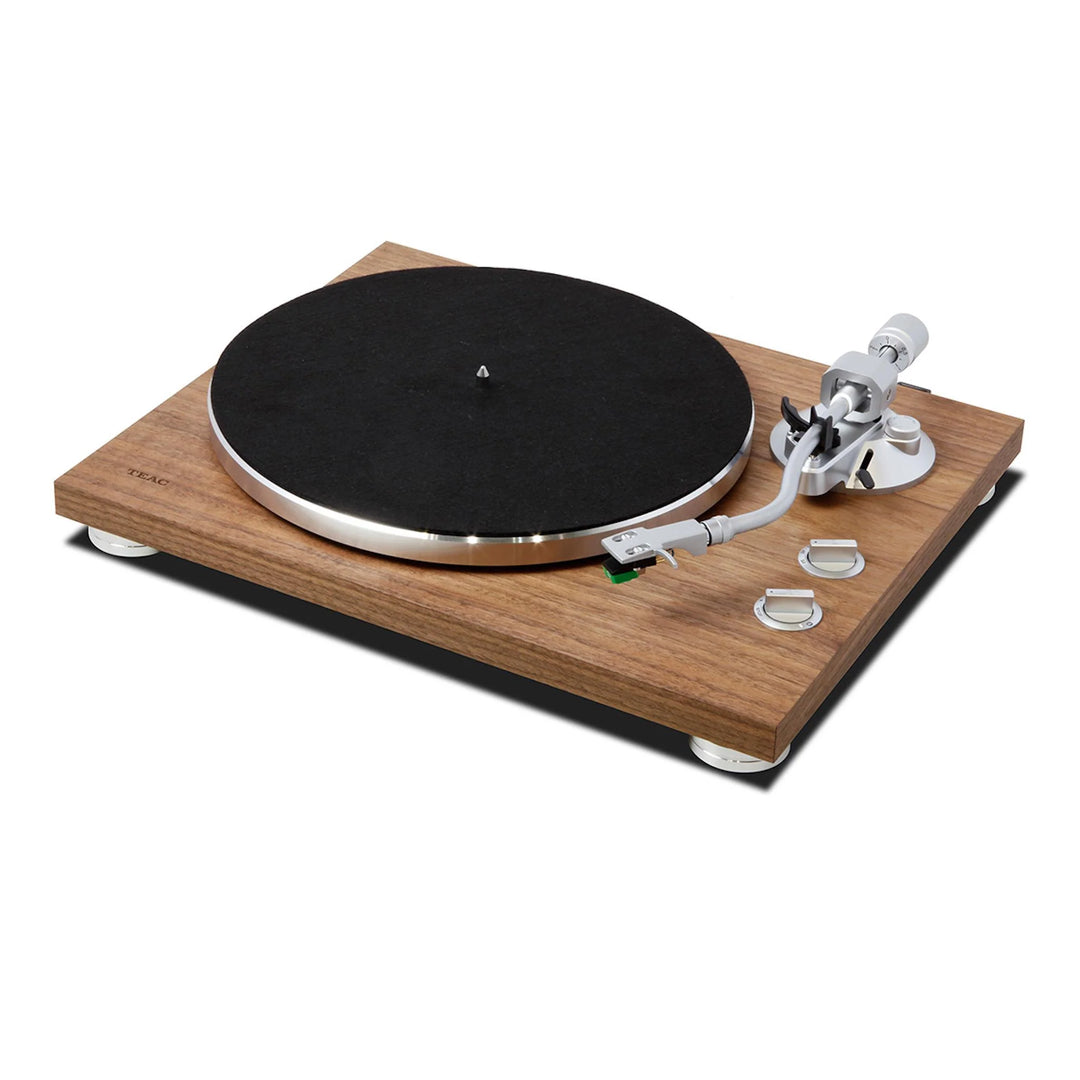

The TN-400BT is an analog turntable that also allows users to listen to LP records wirelessly via Bluetooth® headphones & speakers. A die-cast aluminium platter provides accurate rotational speed while an S-shaped static-balanced aluminum tone-arm provides accurate tracking. The built-in Phono EQ amplifier enables the TN-400BT to be connected to a conventional hi-fi amplifier or a micro hi-fi, while a universal-type headshell allows users to change cartridges with ease.
A built-in Bluetooth® transmitter also lets users listen to LP records wirelessly with high-quality audio (thanks to the the Qualcomm® aptX™ and AAC codecs). A USB output, meanwhile, enables users to digitally archive their records on a PC at 16-bit/48kHz resolution (equivalent to CD quality). For convenience, a quality Japanese-made moving magnet-type cartridge comes pre-installed, so users can quickly start enjoying their records without a lengthy set-up procedure.
Features at a glance
- Robust high-density MDF plinth provides both vibration isolation and elegance
- Available in a selection of contemporary matt finishes, or a natural walnut veneer
- 3-speed belt-drive mechanism with aluminum die-cast platter (33-1/3, 45, 78 rpm)
- Newly-developed low-resistance spindle for stable rotational speed
- Static-balanced S-shaped tone-arm with universal-type headshell
- Pre-installed MM-type AT95E cartridge from audio-technica
- Built-in Phono EQ Amplifier
- Built-in TI A/D Converter allows 16-bit/48kHz USB digital output for PC recording
- High-quality Bluetooth® Qualcomm® aptX™ wireless audio transmission
- Floating-construction using decoupled feet provides high feedback resistance
- Machined aluminum operation knobs and feet

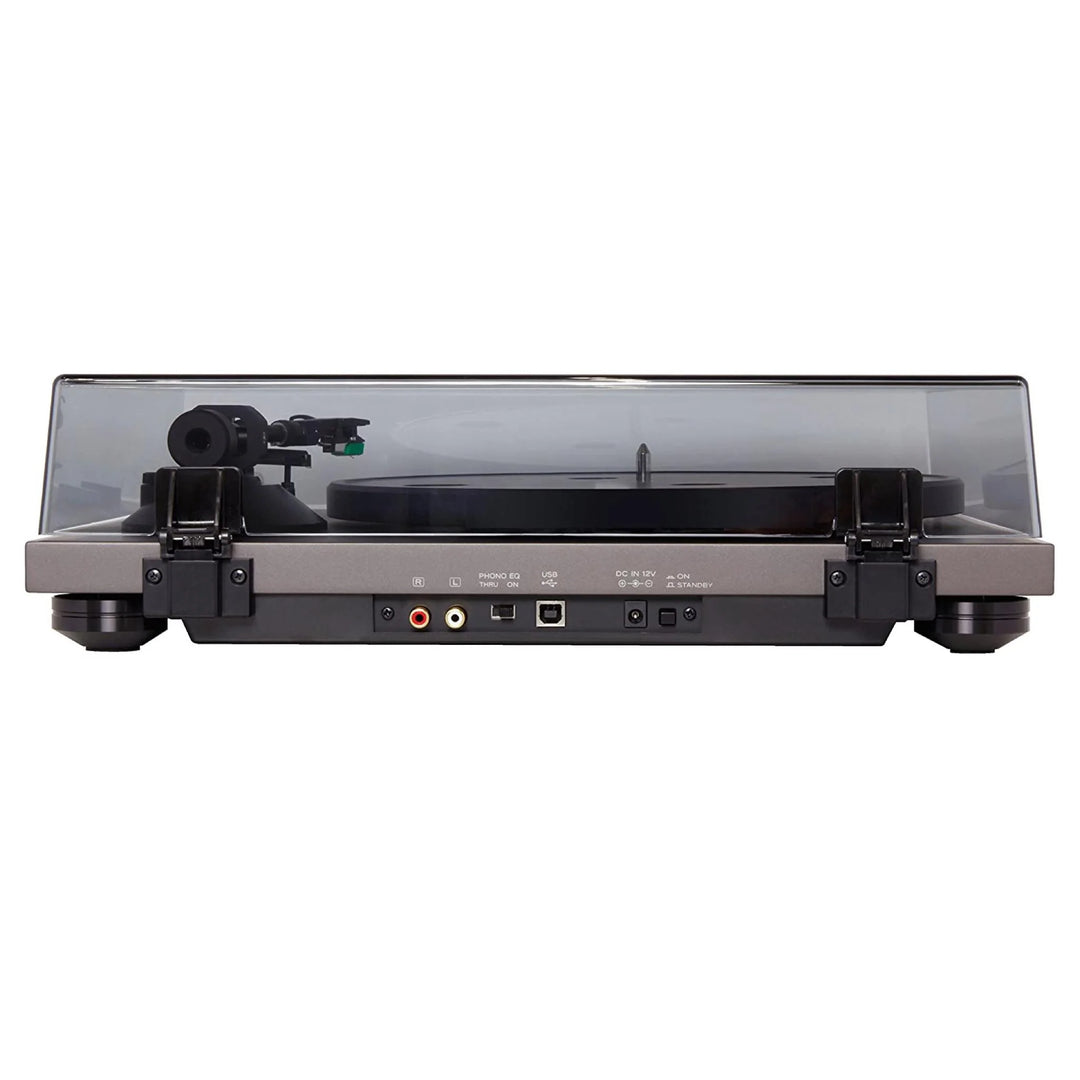

- Gold-plated RCA jacks (for LINE/PHONO output) and tone-arm contacts
- GND terminal on rear panel
- RCA audio cable with GND wiring included
Aluminum die-cast platter with 3-speed belt-drive
A die-cast, high-inertia aluminum platter is driven by a high-torque DC motor via a durable rubber flat-belt, giving immensely stable playback at 33-1/3, 45 and 78 rpm speeds.
New low-resistance spindle
A precisely-machined stainless steel spindle and durable brass bearing maintain accurate rotational speed, thanks to reduced friction.
New matt and natural walnut veneer finishes
The TN-400BT is available in four matt finishes, as well as a natural walnut veneer finish.
Built-in Phono EQ amplifier
The TN-400BT has an onboard Phono EQ amplifier that supports MM-type cartridges, allowing the deck to be connected to conventional amplifiers/micro systems that lack a dedicated turntable input. The Phono EQ amplifier employs a hi-fi quality NJM8080 op-amp chip (designed by JRC) which amplifies the tiny audio signal from the stylus with the minimum of distortion.
USB digital audio output
The TN-400BT also incorporates an A/D Converter that delivers a 16-bit/48kHz resolution digital audio signal via a rear-mounted USB port. This allows records to be digital archived on a PC. Once converted, users can then easily transfer the recordings onto devices such as smartphones and car CD players

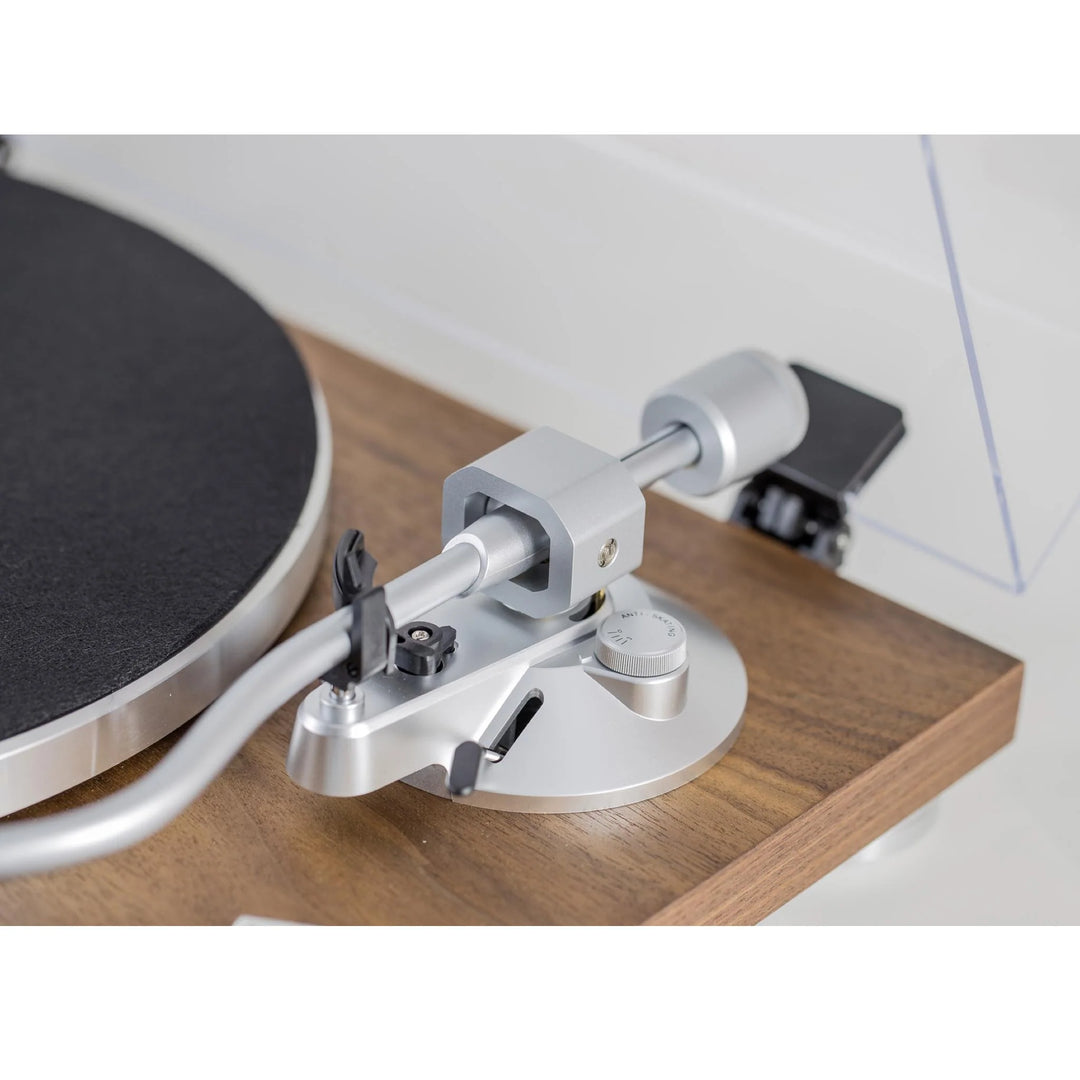

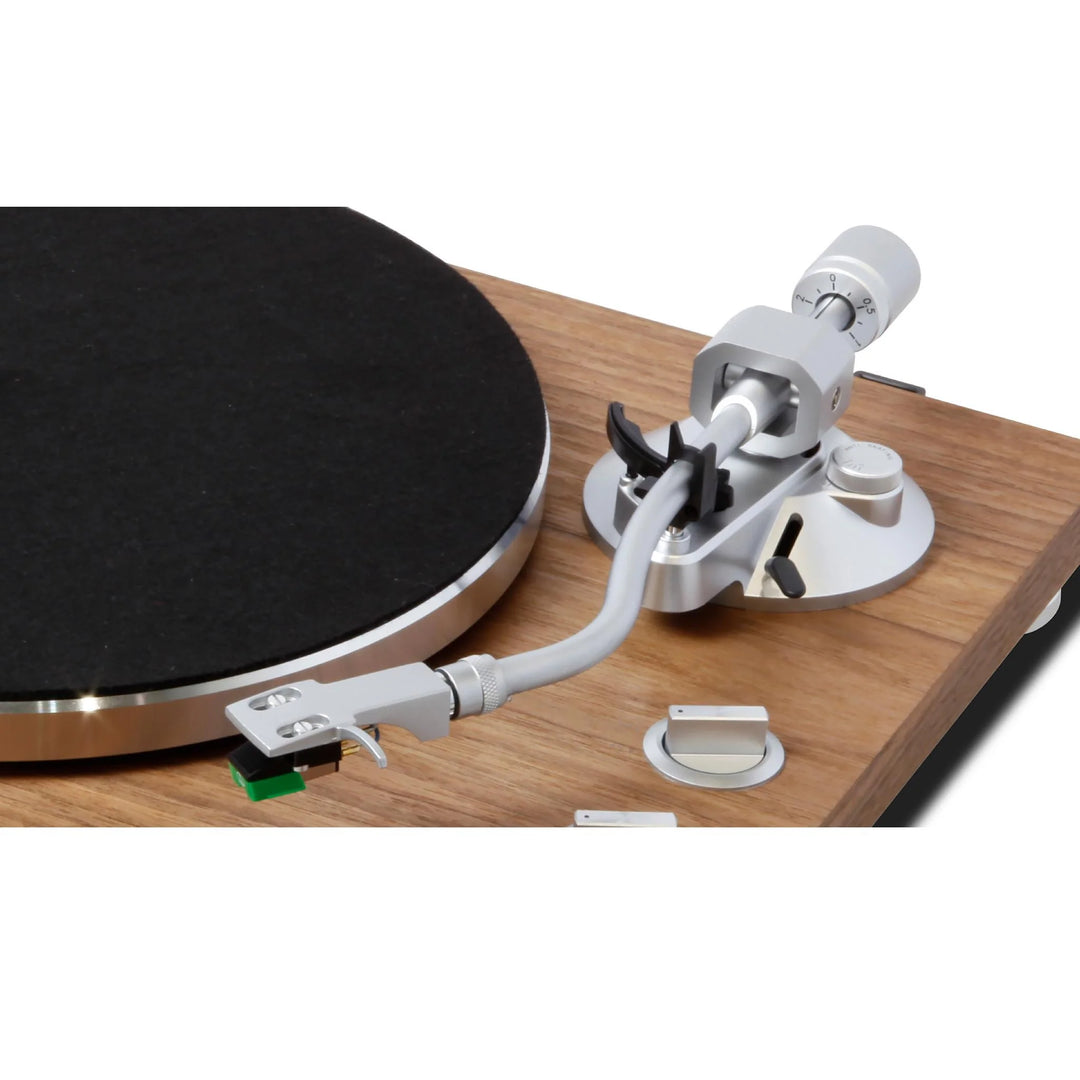

S-shaped static-balanced tone-arm
The S-shaped, static-balanced aluminum tone-arm is equipped with a counterweight and anti-skating mechanism that allow an exact setting of balance as well as tracking pressure, ensuring accurate tracking during playback. A tone-arm lifter is also fitted for smooth lowering of the tone-arm onto records.
The tone-arm takes universal-type headshells so users can change cartridges with relative ease. In order to reduce signal losses between the tone-arm and the headshell, gold-plated contact points are employed, to help deliver an uncorrupted audio signal.
Bluetooth® wireless audio streaming with Qualcomm® aptX™ codec
The TN-400BT's Bluetooth® wireless transmission system supports the higher quality Qualcomm® aptX™ and AAC codecs, as well as the conventional SBC codec. This means that even if users don't have a hi-fi system, then can still enjoy truly high-quality vinyl replay via Bluetooth®-equipped headphones or speakers. Connecting the TN-400BT to Bluetooth® headphones or speakers is achieved very simply, at the touch of a button. A single-function pairing key and an associated LED indicator provide simple and clear confirmation of the connection status.
Beautifully detailed
The TN-400BT brings elegance to the process of playing a record. The machined aluminum operation knobs ooze quality while the aluminum feet, attached to high-density MDF chassis via shock-absorbing rubber, provide a high resistance to feedback.
MM-type Cartridge from audio-technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.
MM-type Cartridge from audio-technica
The deck comes with an excellent, all-purpose MM cartridge, employing a lightweight aluminum cantilever, which helps deliver an accurate, highly musical standard of playback.
Spacification
|
Type
|
Belt Drive
|
|
Motor
|
DC Motor
|
|
Rotation Speeds
|
33 1/3, 45, 78 rpm
|
|
Wow-and-Flutters
|
0.20%
|
|
S/N Ratio
|
more than 67dB (A-weighted)
60dB (unweighted, 20kHz, LPF)
|
|
Turntable (Platter) Material
|
Aluminum Die-cast
|
|
Turntable (Platter) Diameter
|
30cm
|
|
Type
|
S-shaped, Static-balanced
|
|
Effective Length
|
223mm
|
|
Needle Pressure Range
|
0g to 5g
|
|
Compatible Cartridge Weight
|
-
4g to 8g
-
14g to 18g (including Head-shell)
|
|
Model of Cartridge
|
audio-technica AT95E
|
|
Type of Cartridge
|
MM-type (VM-type)
|
|
Frequency Response
|
20Hz to 20,000Hz
|
|
Output Voltage
|
3.5mV (1kHz, 5cm/sec.)
|
|
Channel Separation
|
20dB (1kHz)
|
|
Output Balance
|
2.0 dB (1kHz)
|
|
Needle Pressure
|
1.5g to 2.5g (appropriate value: 2.0g)
|
|
Needle Life
|
approx. 300 hours (depends on conditions)
|
|
Coil Impedance
|
2.8kohms (1kHz)
|
|
DC Resistance
|
410ohms
|
|
Loading Resistance
|
47kohms
|
|
Loading Capacity
|
100 to 200pF
|
|
Coil Inductance
|
400mH (1kHz)
|
|
Static Compliance
|
20 × 10-6cm/dyne
|
|
Dynamic Compliance
|
6.5 × 10-6cm/dyne (100Hz)
|
|
Needle Shape
|
Joint-oval 0.3 × 0.7mil
|
|
Cantilever
|
Aluminum Pipe
|
|
Vertical Tracking Degree
|
20 degrees
|
|
Overall Dimensions
|
17.0(W) × 17.2(H) × 30.5(D) mm
|
|
Weight
|
5.7 g
|
|
Head-shell Weight
|
10g (including nuts, screws, and wires)
|
|
Connectors
|
RCA jack × 1 pair (Gold-plated)
|
|
Output Voltage - PHONO
|
3.5mV +/-3dB
|
|
Output Voltage - LINE
|
155mV (-16dBV)
|
|
Connector
|
USB B-type (Full-speed, Plug-in Power required)
|
|
Audio Format
|
PCM 16-bit/48kHz
|
|
Required USB Bus Power
|
5V 500 mA
|
|
Bluetooth version
|
4.0 (DUAL MODE)
|
|
Output class
|
Class 2
|
|
Codecs
|
SBC, AAC, Qualcomm® aptX™
|
|
Maximum number of stored pairings
|
8 devices
|
|
AC Adapter Input
|
AC 100 - 240V, 50/60Hz
|
|
AC Adapter Output
|
-
DC 12V 500mA
-
1.5W or less
|
|
Standby Power
|
0.5W or less
|
|
Dimensions (including protrusions)
|
420(W) × 117(H) × 356(D) mm /
16.5"(W) × 4.6"(H) × 14.0"(D)
|
|
Weight
|
4.9kg / 10.8lbs
|
|
Operating temperature range
|
5°C to 35°C
|
|
Included Accessories
|
Felt Mat, EP Adapter, Counter Weight, Headshell (audio-technica AT95E installed), Platter, Dust Cover, Dust Cover Hinges × 2, RCA Audio Cable with GND wiring, AC Adapter (GPE053A-V120050-Z), Owner's Manual (including Warranty Card)
|
