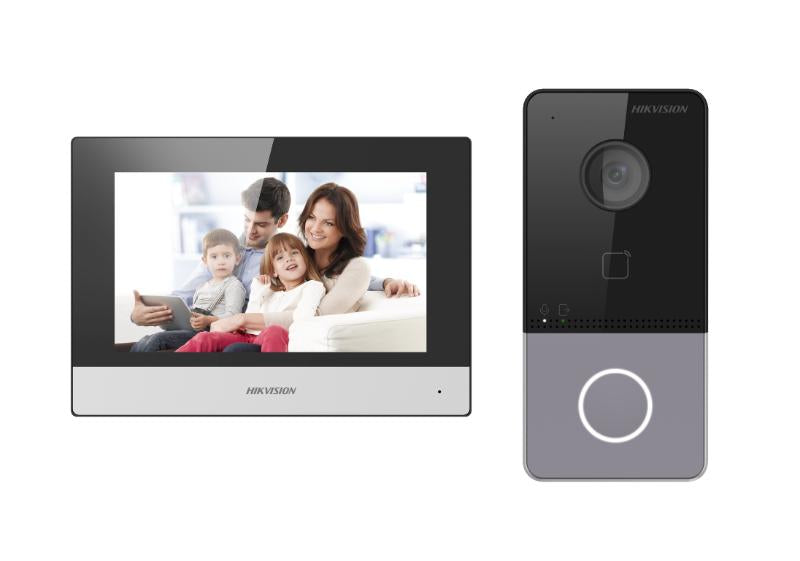

Villa Door Station
*  Standard PoE; *  2 MP HD camera; *  Noise suppression and echo cancellation; *  Low illumination; *  Access control functions; *  Tamper-proof; *  Configuration remotely via Web
Network Indoor Station
*  7-inch colorful touch screen with resolution 1024 × 600; *  Standard PoE; *  Stores messages and captured pictures in the TF card; *  Remote unlocking via the client software or the mobile
Client
*  Views live videos of door stations and linked cameras; *  Remote Access on Mobile

Door station / System parameters

• Operation system: Embedded Linux operation system
• Flash: 32 MB
• RAM: 128 MB

Door station/Video parameters

• Camera: 2MP HD camera
• Night visionLow illumination IR supplement mode:3 m
• Backlight compensationSupport
• Digital noise reductionSupport
• WDRTrue WDR
• Field of viewHorizontal: 129° Vertical: 75°
• Video Compression StandardH.264
• StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion detectionSupport
• Flash-avoid frequency50 Hz, 60 Hz

• Door station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps
• Audio intercomTwo-way audio communication

• Door station/Network parameters
• Network protocolTCP/IP, RSTP
• Wired network10/100 Mbps Ethernet

• Door station/Device interfaces
• RS-485 1
• Alarm input4
• Debugging port1
• Grounding1
• TAMPER switch1

• Door station/General
• Power consumption＜ 10 W
• Working temperaturee -40° C to 53° C(-40° F to 127.4° F)
• Working humidity10% to 95%
• Dimension138 mm × 65 mm × 27 mm
• InstallationSurface mounting
• Protection level IP65
• Indicator2
• Power supply

  IEEE802.3af, standard PoE

  12 VDC

• Indoor station/System parameters
• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash 32 MB

• Indoor station/Display parameters
• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

• Indoor station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio qualityNoise suppression and echo cancellation
• Audio compression standardG.711 U
• Audio compression Rate64 Kbps

• Indoor station/Network parameters
• Wired network 10/100 Mbps self-adaptive
• Wireless networkWi-Fi 802.11 b/g/n
• ProtocolTCP/IP, SIP, RTSP
• RS-4851 RJ-45 10/100 Mbps self-adaptive

• Indoor station/Device interfaces
• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version

• Indoor station/General
• Power consumption≤ 6 W
• Working temperature‘-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Dimension (L x W x H)

  200 mm × 140 mm × 15.1 mm (7.9" ×

  5.5 × 0.6\")"
