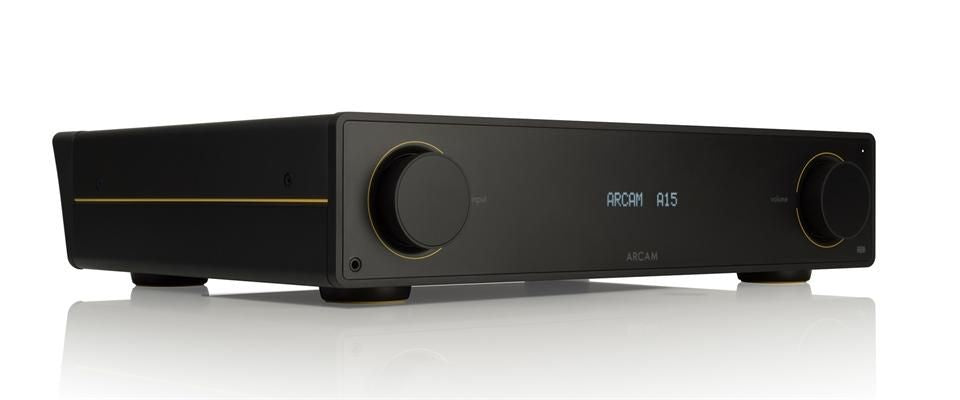

Arcam A15 Integrated Amplifier
Regular price
Rs. 140,900.00
Sale price
Rs. 137,000.00
Unit price
per
3% OFF
-
Description
-
Review
Description
| IN THE BOX | |
|---|---|
| Sales Package | Arcam A15 Integrated Amplifier |
| General
|
|||
|---|---|---|---|
| Brand | Arcam | ||
| Model | A15 | ||
| Color | black | ||
|
Continuous power output (0.5% THD), per channel
|
2 channels driven, 20Hz - 20kHz, 8? 80W
2 channels driven, 1kHz, 4? 120W
Harmonic distortion, 80% power, 8? at 1kHz 0.002%
|
||
|

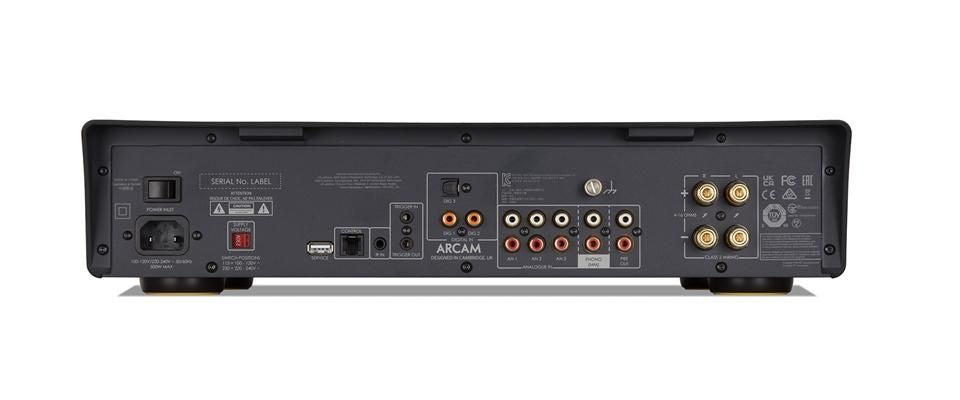

Analogue Inputs
|
Number of inputs 3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 106dB
Frequency response 20Hz—20kHz ± 0.2dB
|
||
|
Phono (MM) Input
|
Input impedance 47k? + 100pF
Frequency response (ref. RIAA curve) 20Hz—20kHz ± 1dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
|
||
|
Digital Inputs
|
Supported Sample Rates (kHz)
Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink) 192, 176.4, 96, 88.2, 48, 44.1
|
||
|
Bit depths (bit) 24, 16
|
Frequency response (fi lter 1) 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 109dB
|
||
|
Headphone Output
|
Maximum output level (RMS) into 32?/300? 2.5V/5Vrms
Load range 16? - 2k?
|
||
| Mains voltage | 100V or 110–120V or 220–240V, 50–60Hz | ||
| Power consumption (maximum) | 500W | ||
| Power consumption (standby) | <0.5W | ||
| Dimension | |
|---|---|
| Dimension | 431 x 344 x 98mm |
| Weight | 10kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
