Product Description
- The Ultra portable L1 Pro system, ideal for small venues like coffee shops and cafes.
- Features a C-shaped line array featuring 8 articulated 2†neodymium drivers.
- Bring more bass with less bulk with an integrated subwoofer featuring a 7†× 13†high-excursion RaceTrack driver.
- Now select between optimized system EQ presets for live music, recorded music, and more.
- Connect various audio sources easily via built-in mixer with two combo XLR-1/4†phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux input.
- Stream high quality bluetooth audio from compatible devices.
- Built-in three-channel mixer, compatible smartphone app for wireless control and wireless streaming.
L1 Pro 8 all set to play where ever you are, enables easier operating functions and faster setup.Its C-shaped line array funtion neodymium drivers. Pro-8 disperse 180-degree horizontal coverage with wide vertical which allows clear sound. Bose pro 8 adds more instruments and other audio source via dedicated ToneMatch port.It has one cable with both power and digital audio.It has flexible change system of volume and tone settings in app.In real time it has mixer and app with L1 mix app, connectivity that enhance your sound performance
Pro Bose L1 is suitable for small places like cafes, short trips with plus Bluetooth connectivity. Bose Pro allows you to adjust the level of volume, treble, and bass. It has an IEC power cord connection and USB-C connector for Bose service use. Here you can use a microphone for music and INST for a guitar.
Ultra Portable Line Array System
With Bose L1 Pro 8, just load in, set up, and play whenever you are ready, as this ultra-portable system is always ready to fill small venues like coffee shops and cafes with crystal clear sound and smooth tonal balance.
One Trip Portable Line Array

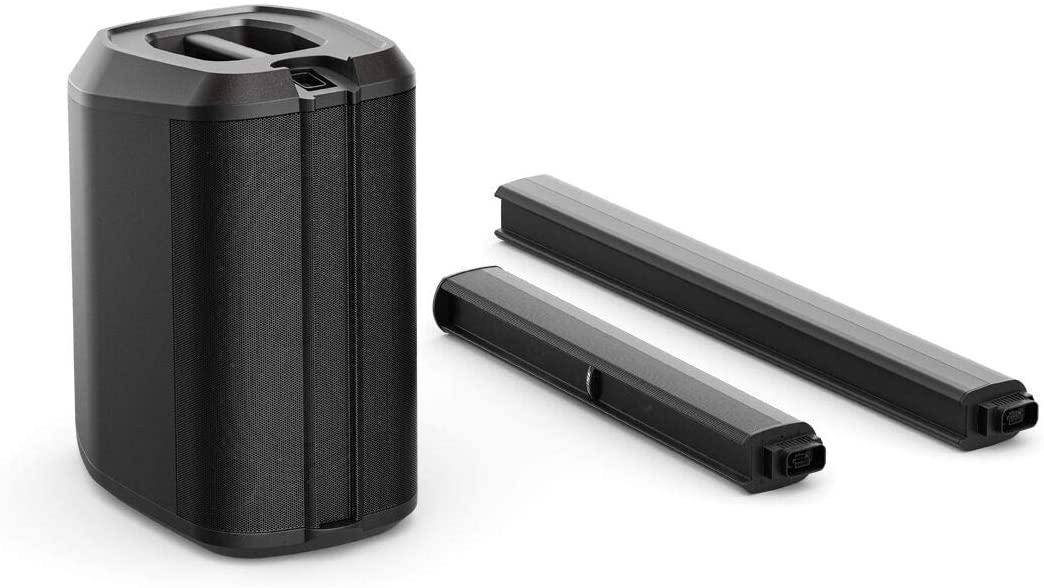

The L1 Pro 8 is easy to carry and easy to set up (and even easier to listen to). It weighs just 16 kilograms (35 pounds) and disassembles into three lightweight pieces.
Bass Without The Bulk
Bose L1 Pro 8 features an incredibly powerful design that fills out your sound and has an integrated subwoofer in L1 Pro 8 featuring a 7" × 13" RaceTrack driver.
Generous Coverage
The L1 Pro 8 has a C-shaped line array featuring 8 articulated 2†neodymium drivers. As with every Bose L1 system, you get legendary 180-degree horizontal sound coverage, allowing your audience to hear clearly.

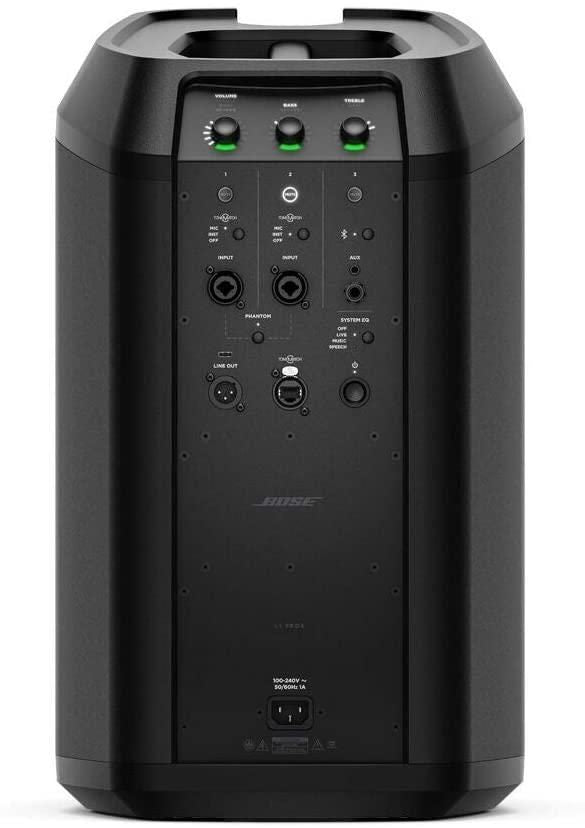

Built-In Mixer
L1 Pro system features a built-in mixer, so you can connect various instruments, microphones, and other sources easily. You get two combo XLR-1/4†phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux inputs, plus Bluetooth streaming capability.
Bose L1 App
With the L1 Pro 8 by Bose Mix app, you can adjust mixer settings instantly from your phone or even walk the room, hear how the mix sounds, and fine-tune as you go. Change volume and tone settings in the app and watch the LED encoder on your L1 Pro move to match.
| IN THE BOX | |
|---|---|
| Sales Package | L1 Pro8 System and User Documentation |
| General | |
|---|---|
| Brand | Bose |
| Model | L1 Pro |
| Color | black |
| Specifications | |
|---|---|
|
System Type
|
Self-powered line array with integrated bass module and onboard three-channel
digital mixer
|
| Frequency Response (–3 dB) | 45 Hz to 16 kHz |
| Frequency Range (–10 dB) | 33 Hz to 18 kHz |
|
Nominal Vertical Coverage Pattern
|
40° |
|
Vertical Beam Type
|
C-shape |
|
Nominal Horizontal Coverage Pattern
|
180° |
|
Calculated Maximum SPL @ 1 m,
continuous
|
112 dB |
| Calculated Maximum SPL @ 1 m, peak | 118 dB |
| Crossover | 200 Hz |
|
Amplification
|
Type Two-channel, Class D
Low Frequency Amp Channel 240 W
High / Mid Frequency Amp Channel 60 W
Cooling Convection cooling
|
|
AC Power
|
AC Power Input 100–240 VAC (±15%, 50/60 Hz)
Input: Electrical Type IEC
Initial turn on inrush current 15.8 A at 120 V; 30.1 A at 230 V
Inrush current after AC mains
interruption of 5 s 1.2 A at 120 V; 19.4 A at 230 V
|
|
LED Indicators
|
Standby, Channel Parameters, Signal/Clip, Mute, Phantom Power, ToneMatch,
Bluetooth LED, System EQ
|
|
Bluetooth Enabled
|
Yes |
| Bluetooth Types | AAC or SBC for audio streaming, LE for system control |
|
No of Channels
|
3 |
| Speaker Drivers | 7 x 13″ (sub), 8 x 2″ (array) |
|
Inputs
|
2 x XLR-1/4″ combo, 1 x 1/8″ (aux), 1 x 1/4″ (aux) |
| Outputs | 1 x XLR (DI) |
|
ToneMatch
|
Audio Type RJ-45 connector for ToneMatch cable connection, providing digital audio and
power connection for the optional T4S/T8S ToneMatch Mixer
|
| Dimension | |
|---|---|
| Dimension | 2000 × 317 × 456 mm |
| Weight | 17.4 kg |
| Warranty | |
|---|---|
| Warranty Type | Manufacturers |
| Warranty Period | 2 Years |
