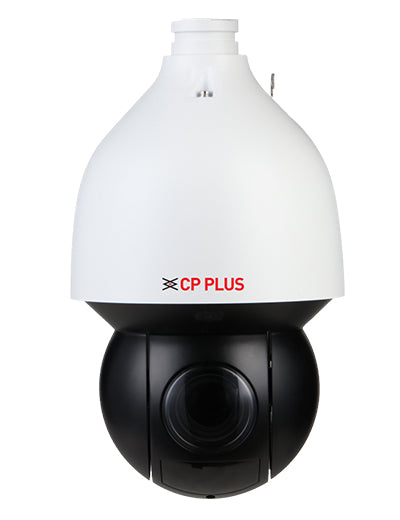

CP PLUS 2MP WDR 32x IR Network PTZ Camera – 180M Range – CP-UNP-E3221L18-DAQ

Name: CP PLUS 2MP WDR 32x IR Network PTZ Camera – 180M Range – CP-UNP-E3221L18-DAQ
Brand: CP PLUS
Price: 45000.0 INR
Availability: InStock

Rs. 65,000.00 Rs. 45,000.00

31% OFF

Call us

CP PLUS

In stock

sold in last hours

people are viewing this right now

Shipping calculated at checkout.

100% Original Guarantee

Secure Payment

GST Invoice Available

Free Next Day Delivery
if order by 2 PM

24/7 Customer Support

Guarantee safe & secure checkout

Tags:

CP PLUS 2MP WDR 32x IR Network PTZ Camera – 180M Range – CP-UNP-E3221L18-DAQ

Rs. 65,000.00 Rs. 45,000.00

31% OFF

Call us

Image Sensor	1/2.8” 2MP PS CMOS Image sensor (0.9071 centimeters)
Effective Pixels	1920 (H) × 1080 (V)
Max Aperture	F1.6–F4.0
S/N Ratio	≥55 dB
RAM	512 MB
ROM	256 MB
Minimum IR	Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 lux (IR light on)
Focal Length	4.5 mm–144 mm
Focus Control	Auto, semi-auto, manual
White Balance	Auto, Indoor, Outdoor, ATW, Manual, Sodium lamp, Natural light, Street lamp
Angle of View	H: 58.4°–3.0°, V: 33.4°–1.7°, D: 66.4°–3.4°
Close Focus Distance	0.1 m–1.5 m
Iris Control	Auto, Manual
Resolution	2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576), CIF (352 × 288)
DORI Distance	1986 m (Detect), 785 m (Observe), 398 m (Recognize), 198 m (Identify)
Electronic Shutter	1/1 s–1/30,000 s
Back Light Compensation	BLC/ HLC/ WDR(120dB)
Optical Zoom	32×
Digital Zoom	16x
Bit Rate	H.265:512-5632 (Kb/s) H.264:1792-8192 (Kb/s)
Image Rotation	180°
Pan/ Tilt Range	Pan: 0° to 360°, Endless, Tilt: –15° to +90°, Auto flip 180°
Power-off Memory	Support
IMD	Support
Day/Night	Auto (Electronic, ICR)/Color/B/W
Video Format	PAL
OSD	Camera title, Date & Time, PTZ Coordinate, Zoom, North, Pattern, Temperature, Preset, Location, Input Text, Text Alignment, Privacy Masking, Time Title, Font Properties, Custom Title, Exception Overlay
Manual Speed	Pan: 0.1°/s–300°/s, Tilt: 0.1°/s–200°/s
Noise Reduction	2D NR/ 3D NR
Preset Speed	Pan: 400°/s, Tilt: 300°/s
Image Stabilization	Electronic Image Stabilization (EIS)
Special Features	Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan
Privacy Mask	Up to 24 areas can be set, with up to 8 areas in the same view
Defog	Electronic
Idle Motion	Pattern, Preset, Scan, Tour
Stream Capability	Penta stream
IR Number	4 IR
IR	180 Mtr.
IR Control	Zoom Prio, Manual, Auto, Off
Gain Control (AGC)	Auto, Manual
Video Compression	AI Instastream, Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Sub Stream 1)
Bit Rate Control	CBR/VBR
Frame Rate	Main stream: 2MP (1920 × 1080)@1–25fps, 720p (1280 x 720)@1–25fps, D1 (704 x 576)@1 25fps Sub stream 1: D1 (704 x 576)@1–25fps, CIF (352 x 288)@1–25fps Sub stream 2: 2MP (1920 × 1080)@1–25fps, 720p (1280 x 720)@1–25fps, D1 (704 x 576)@1 25fps Sub stream 3: D1 (704 x 576)@1–25fps Sub stream 4: D1 (704 x 576)@1–25fps
Motion Detection	Support
Audio Compression	PCM, G.711A, G.711MU, G.726, MPEG2- Layer2, G.722.1, AAC
Auto Tracking	Support
ROI	Support
Ethernet	1 × RJ-45 (10/100 Base-T)
Audio Input	1 Channel
Audio Output	1 Channel
IVS (Perimeter Protection)	Crossing Virtual Fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Crowd Gathering, Missing Object, Loitering Detection, Calibration Verification, IMD, Face detection
Device Search Tool	IP finder
OTA (Over-The-Air)	Support
SDK and API	Support
Protocols	SFTP, IPv6, IPv4, DNS,RTCP, RTMP NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2/1.3, TCP/ IP, PPPoE, NAS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Alarm I/O	2 IN/ 1 OUT
Alarm Linkage	Capture, Recording, Send email, Preset, Tour, Pattern, Alarm digital output
Alarm Event	Motion/tampering detection, Defocus Detection, Audio detection, SD Card Exception(No SD card, Low SD card space, SD card error), Network Exception (Offline, IP Conflict), External Alarm, IMD, Security Warning, AI Events
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, 802.1x, Allow list/Block list, HTTPS, trusted upgrade, trusted boot, firmware encryption
Tracking Trigger Event	Crossing virtual fence, Tripwire, Intrusion, Abandoned Object, Fast Moving, Parking Detection, Loitering Detection
Browser	IE, Chrome, Firefox
Storage	SFTP, NAS, Mirco SD card (Max. 512GB)
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	24 VDC, 2.5 A ± 25% PoE+ (802.3at)
Power Consumption	Basic: 8 W Max: 18.5W (illuminator on)
User/ Host	20 (total bandwidth: 64 Mbps)
Weatherproof Standard	IP67, IK10, TVS 6000V lightning proof, surge protection, voltage transient protection
Operating Temperature	–40°C to +70°C
Operating Humidity	≤ 95% (RH)
Dimension	332 mm × 190 mm
Weight	4600g
