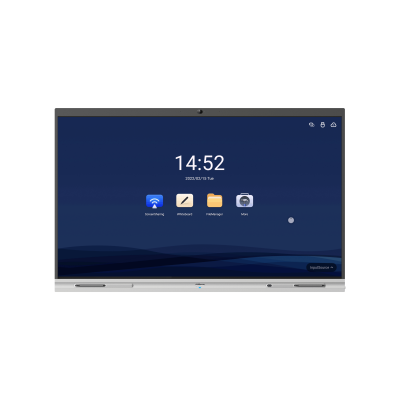

The CP Plus CP-URP-H86EN1-4K is a 86-inch 4K Ultra HD interactive display designed for educational and professional environments. It features a DLED panel with Zero Air Gap technology, delivering sharp, vivid visuals. The display supports wireless screen sharing, handwriting recognition, and quick file sharing via QR code. It operates on Android 11 with a quad-core A55 CPU, 8GB RAM, and 128GB storage. The infrared touch technology allows for 32 touch points with a response time of less than 10 ms. Connectivity options include multiple USB ports, HDMI inputs, RS-232, and dual-band Wi-Fi. The device also features built-in speakers, Bluetooth 5.2, and a light sensor for auto brightness adjustment. It supports both wall mount and floor-standing installations.
Display Size | 86 inch (218.44 cm) |
Aspect Ratio | 16:9 |
Backlight | DLED |
Resolution | 3840 x 2160 (4K) |
Effective Display Area | 86'': 1895 x 1066mm |
Brightness | 350 cd/m²; |
Contrast Ratio | Static Contrast: VA: 4000(typ.); IPS: 1200(typ.) |
Response Time | ≤6ms |
Glass Thickness | 4MM AG |
Display Color | 1.07Billion |
Viewing Angle | 178°(H)/178°(V) |
Refresh Rate | 60 Hz |
Surface Hardness | >7H |
Haze | 4-8% |
Transparency | 88%±3 |
Attachment Method | Zero Bonding |
Surface Treatment | Anti-Glare |
Screen sharing | CP Cast |
Color gamut | 72%NTSC |
BT | BT 5.0 |
Operating System | Android 13 |
CPU | A55 x 4 |
RAM | 8 GB |
ROM | 128 GB |
Wi-Fi | Wi-Fi 5 802.11a/b/g/n/ac |
Lifespan | ≥50000 hours |
Ports | Front: USB2.0 Type-B*1 USB3.0 Type-A *3 TYPE-C*1 (USB) HDMI IN *1 (4K 60fps) Rear: USB2.0 Type-A*1 USB3.0 Type-A *1 HDMI IN*2 (4K 60fps) RS232*1 USB Touch Type-B 2.0 *1 AV IN *1 AV OUT *1 Audio Out 3.5MM*1 SPDIF OUT Coax*1 RJ45*1 OPS slot*1 |
Touch Technology Type | IR |
Touch Points | Android 20 Windows 40 |
Valid Touch | Φ 2mm |
Writing Mode | Finger + Pen |
Speaker Power | 15W*2 |
Built-in Speaker | 2 |
Installation | Wall mount; mobile bracket |
Power Supply | AC100-240V |
Casing | Metal |
Dimensions | 2050mm x 1290mm x 200mm |
Weight | 68 kg |
