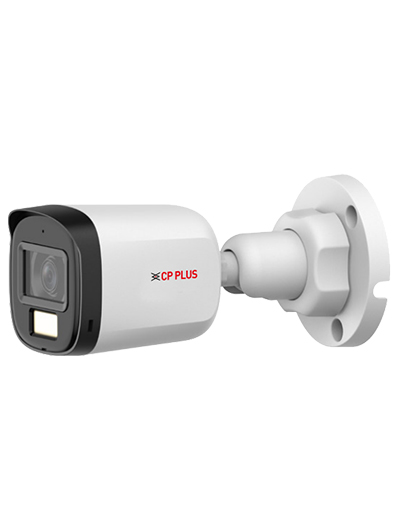

The CP-URC-TC51PL3C-L is a 5MP Dual Light Bullet Camera from CP PLUS, designed for high-definition outdoor surveillance. It combines advanced imaging technology with robust features to deliver clear video footage in various lighting conditions.

📷 Camera Specifications

• Image Sensor: 1/2.7” 5MP PS CMOS

• Effective Pixels: 2880 (H) × 1620 (V)

• Minimum Illumination:

  • Color: 0.02 lux @ F2.0 (30 IRE)

  • B/W: 0.002 lux @ F2.0 (30 IRE)

  • 0 lux with IR on

• Lens Options: Fixed 3.6mm lens (2.8mm and 6mm optional)

• Maximum Aperture: F2.0

• Lens Mount: M12

• Close Focus Distance:

  • 3.6mm: 1.3m

  • 2.8mm: 1.0m

  • 6mm: 2.8m

• Shutter Speed:

  • PAL: 1/25s to 1/100,000s

  • NTSC: 1/30s to 1/100,000s

• White Balance: Auto, Area White Balance

• Gain Control (AGC): Auto

• Backlight Compensation: BLC / HLC / DWDR

• Noise Reduction: 2D DNR

• Day/Night Functionality: Auto (ICR) / Color / B/W

• Mirror Function: Supported

• Privacy Masking: Up to 8 areas (rectangular)

• Angle Adjustment:

  • Pan: 0°–360°

  • Tilt: 0°–90°

  • Rotation: 0°–360°

• Angle of View:

  • 2.8mm lens: Horizontal 106°, Vertical 56°, Diagonal 125°

  • 3.6mm lens: Horizontal 92°, Vertical 48°, Diagonal 109°

  • 6mm lens: Horizontal 54°, Vertical 29°, Diagonal 62°

• DORI Distance (3.6mm lens):

  • Detect: 76.0m

  • Observe: 30.4m

  • Recognize: 15.2m

  • Identify: 7.6m

• IR Range: Up to 30 meters

• Warm Light Range: Up to 20 meters

• IR Control: Auto / Manual

• IR Mode: Smart IR & Warm Light, Warm Light Mode, IR Mode

• Dual LED Configuration: 2 IR LEDs + 2 Warm Light LEDs

• Audio: Built-in Microphone

🔌 Video & Connectivity

• Video Output: Selectable CVI / TVI / AHD / CVBS via one BNC port

• Supported Resolutions:

  • 5MP (2880 × 1620)

  • 4MP (2560 × 1440)

  • 2MP (1920 × 1080)

  • 960H (960 × 576 / 960 × 480)

• Frame Rates:

  • CVI: PAL 5MP @25fps, NTSC 5MP @25fps

  • AHD: PAL 4MP @25fps, NTSC 4MP @30fps

  • TVI: PAL 4MP @25fps, NTSC 4MP @30fps

  • CVBS: PAL 960H, NTSC 960H

• Compatibility: Supports multiple video formats for seamless integration with various DVRs

⚙️ Mechanical & Environmental

• Casing: Plastic

• Dimensions: 146.1mm × 70.0mm × 69.8mm

• Weight: 0.17 kg

• Power Supply: 12V DC ±30%

• Power Consumption: Max 4.0W (with WLED on)

• Operating Temperature: -40°C to +60°C (-40°F to +140°F)

• Operating Humidity: <95% RH (non-condensing)

• Storage Temperature: -40°C to +60°C (-40°F to +140°F)

• Storage Humidity: <95% RH (non-condensing)

• Ingress Protection: IP67 rated for outdoor use

🌟 Key Features

• Dual Light Night Vision: Combines infrared and warm light for superior night vision, providing clear images in complete darkness and enhanced visibility in low-light conditions.

• Active Deterrence: Features warm LED lights that activate in real-time to deter intruders, enhancing security by preventing potential threats before they escalate. Note: Active deterrence functions require SMD-supported DVRs.

• All-in-One HD Camera: Supports multiple video formats (HDCVI, HDTVI, AHD, CVBS) over a single coaxial cable, ensuring compatibility with various DVRs.

• Built-in Microphone: Captures high-quality audio, adding an extra layer of security by recording sound along with video.

• Long-Distance Transmission: Capable of transmitting video signals over extended distances without quality loss, ensuring reliable and clear footage from remote locations.
