Power Rating

65W + 65W (4 Ω, 1kHz, T.H.D. 0.7%)

Dynamic Power

80W + 80W (4 Ω)

Impedance

AUX: 200 mV/22 kΩ

THD

1kHz, 5W, 8Ω: AUX: 0.05%

No. of Channels

2-channel driving

SNR

10W, 8Ω, IHF-A: AUX: 86 dB

Tone Control

• SDB: 100Hz +8 dB
• Bass: 100Hz ± 10 dB
• Treble: 10kHz ± 10 dB

Frequency Response

10Hz-40kHz (+0.5 dB, -3 dB) (Source Direct: On)

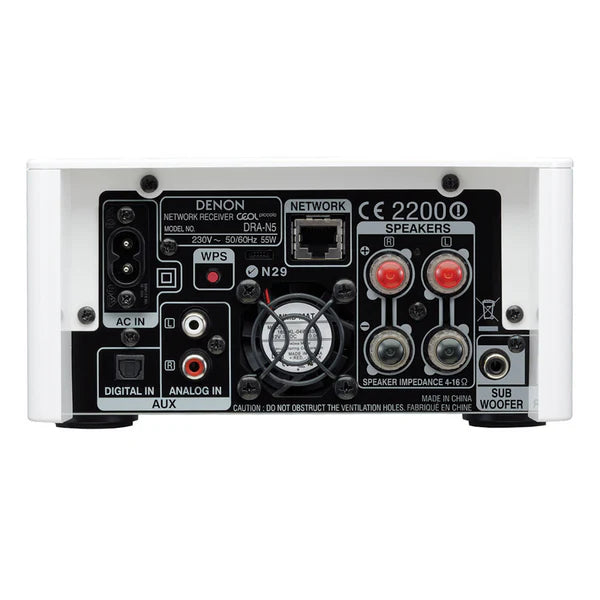

Inputs/Outputs

• Analog input x 1
• Digital optical input x 1
• Mono output (Subwoofer) x 1
• USB x 1
• Headphone x 1
• Network (Ethernet) x 1
• Dock connector x 1

Wireless LAN

• Network type (Wireless LAN standards):
• Conforming to IEEE 802.11b
• Conforming to IEEE 802.11g
• Conforming to Wi-Fi
• Transfer rate: DS-SS: 11 / 5.5 / 1Mbps (Automatic switching)
• OFDM: 54 / 48 / 36 / 24 / 18 / 12 / 9 / 6Mbps
• Automatic switching
• Security: SSID (Network name)
• WEP key (Network key) (64/128-bits)
• WPA-PSK (TKIP/AES)
• WPA2-PSK (TKIP/AES)
• Used frequency range: 2.412-2.462MHz
• No. of channels: Conforming to IEEE 802.11b: 11 ch (DS-SS) (Of which 1 channel used)
• Conforming to IEEE 802.11g: 11 ch (OFDM) (Of which 1 channel used)

Clock

• Clock type: Power line frequency synchronized method (Within ±60 seconds per month)
• Alarm: Everyday alarm / Once alarm : One system each

Sleep timer: Max. 90 minutes

Power Requirements

AC 120 V, 60Hz

Power Consumption

Standby mode: 0.3W

Network control on mode: 3W

Dimensions (WxHxD)

7.1 x 3.5 x 9.2" (180 x 90 x 234 mm)

Weight

4.9 lb. (2.2kg)
