Product Description

XPA HC-1 is a true monoblock power amplifier and features a single high-power XPAGen3 amplifier module, powered by its own dedicated massive switch mode power supply (SMPS).
Power output: 300 watts RMS into 8 Ohms | 600 watts into 4 Ohms.
Balanced and unbalanced inputs for compatibility with a wide variety of preamps and surround sound processors.
Audiophile quality Class A/B output stage.
Class A/B output stage with Optimized Class H power supply topology for improved efficiency.
Universal AC power automatically selects the proper line voltage for easy installation in a wide variety of locations.
Comprehensive yet transparent protection circuitry protects from most common fault conditions without degrading sound quality.

IN THE BOX
Sales Package	Amplifier and User Documentation

General
Brand	Emotiva
Model	XPA HC-1
Color	black

Specifications
Circuit Topology	The XPA HC-1 is a monoblock audio power amplifier, with a fully discrete, dual differential, high current, short signal path Class A/B amplifier section, Optimized Class Hâ„¢ power supply topology, and microprocessor-controlled fault protection The XPA HC-1 is powered by a high efficiency, audiophile grade, Switch Mode Power Supply (SMPS)
Audio Specifications	The XPA HC-1 features a single High-Powered Single Channel Amplifier Module
Audio Specifications	Power Output: 300 watts RMS; 20 Hz â€“ 20 kHz; THD <0.1%; 8 Ohms. 600 watts RMS; 20 Hz â€“ 20 kHz; THD<0.2%; 4 Ohms. Power Bandwidth (at rated power; 8 Ohm load): 20 Hz to 20 kHz (+ / â€“ 0.1 dB). Broad Band Frequency Response: 5 Hz to 80 kHz +0/-2 dB. THD + noise: < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms. Signal to Noise Ratio (8 Ohm load): > 120 dB; ref FTC rated power; unbalanced input (A-weighted). > 95 dB; ref 1 watt; unbalanced input (A-weighted). Minimum Recommended Load Impedance: 4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads). Damping Factor (8 Ohm load): > 500. Input Sensitivity (for rated power; 8 Ohm load): 1.7 V. Gain: 29 dB. Input Impedance: 33k Ohms (balanced). 23.5k Ohms (unbalanced).
Input And Output Connections	Input Connections: Unbalanced (RCA); balanced (XLR); independently selectable. Speaker Output Connections: Audiophile grade, gold plated, 5-way binding posts. Trigger: Trigger Input: 5 â€“ 12 V (AC or DC); <10 mA input current required. Trigger Output: 12 VDC; can drive any load up to 120 mA.
Power Requirements	Between 100 VAC and 250 VAC @ 50 / 60 Hz (automatically detected)

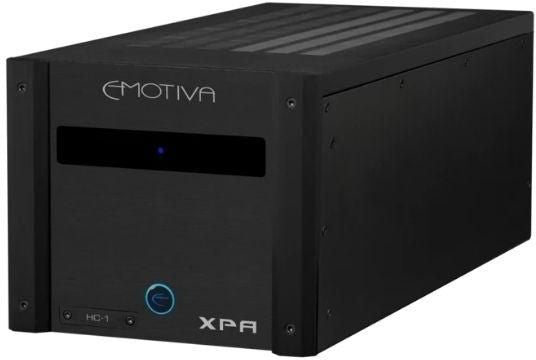

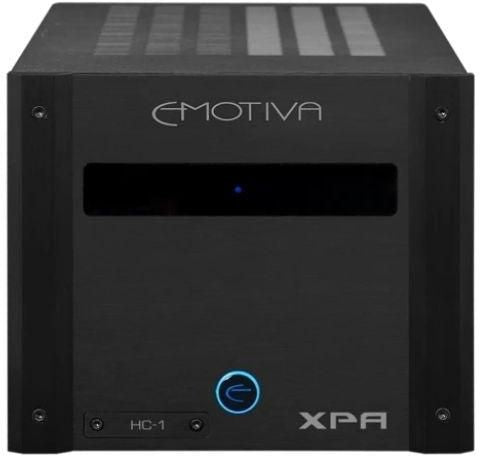

Front Panel Controls and Indicators	Standby: push button (halo ring changes color to indicate Standby or On). Status LED: one; blue. Status LED changes to red to indicate a fault condition

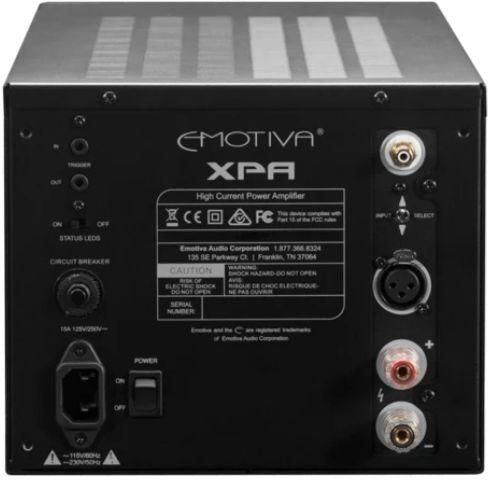

Rear Panel Controls	AC Power switch: rocker switch (switches AC main power). Status LED switch: disables front panel Status LED and dims Standby button halo. Input selector switch: metal toggle switch; selects between balanced and unbalanced input. Circuit Breaker: press button to reset the circuit breaker.
Protection	The XPA HC-1 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions

Dimension
Dimension	8-3/8â€ wide x 7-5/8â€ high x 19â€ deep (unboxed; including feet and connectors). 8-3/8â€ wide x 7â€ high x 18â€ deep (unboxed; without feet). 24-3/4â€ wide x 12â€ high x 14-1/2â€ deep (boxed).
Weight	21.5 lbs (unboxed) 28 lbs (boxed)

Warranty
Warranty Type	Manufacturers
Warranty Period	5 Years
