Luxman M-10X Power Amplifier
Regular price
Rs. 209,500.00
Sale price
Rs. 206,900.00
Unit price
per
1% OFF
-
Description
-
Review
Description
Product Description
- Uses LUXMAN Integrated Feedback Engine System (LIFES 1.0) for improved sound quality.
- Provides 150W per channel into 8?, with peaks up to 1,200W into 1?.
- Operates in pure Class A up to 12W for high-quality sound at low power levels.
- Features advanced 4x2 output with Darlington circuits and push-pull amplifier circuits.

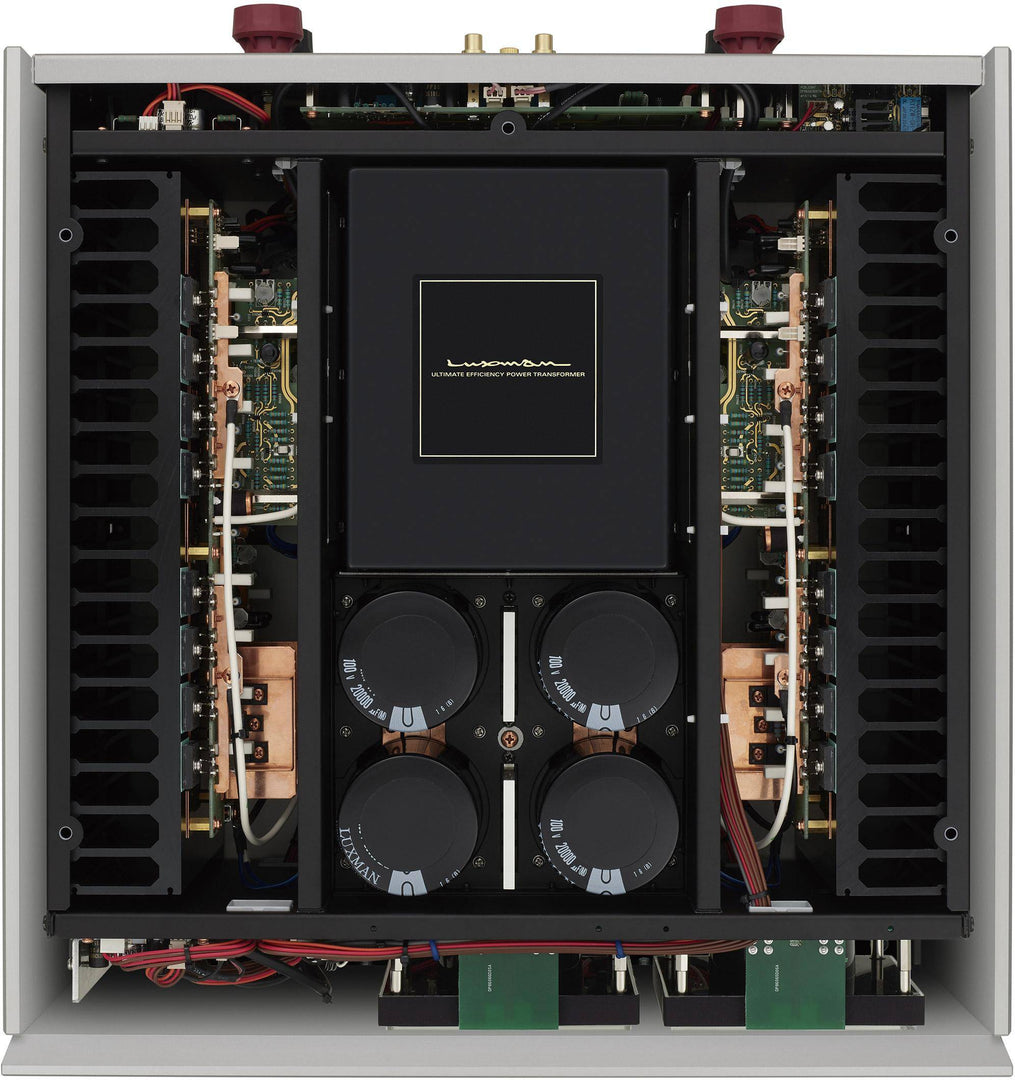

- Equipped with a 1,250VA transformer and 80,000?F filter capacitors per channel for stable power.
- Custom components like gold-plated circuit board traces reduce distortion.

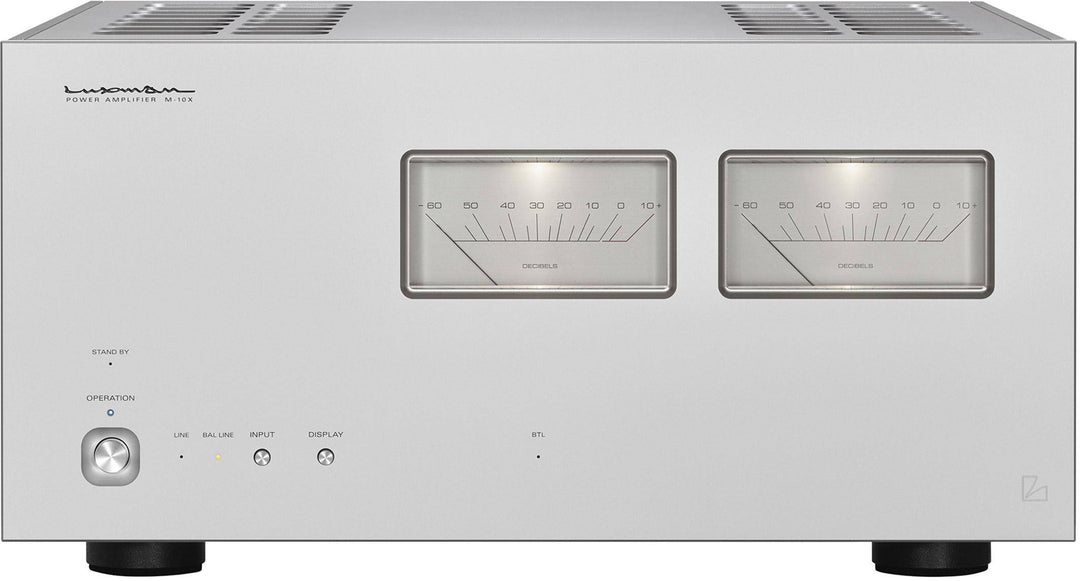

- Sturdy chassis with a white finish and analog level meters for a stylish design.
IN THE BOX | |
---|---|
Sales Package | Luxman M-10X Power Amplifier |
General | |
---|---|
Brand | Luxman |
Model | M-10X |
Color | Silver |
Rated output
|
150W + 150W (8?)/at stereo
300W + 300W (4?)/at stereo
600W (8?)/at monaural
|
Instantaneous max. output
|
1,200W + 1,200W (1?)/at stereo
2,400W (2?)/at monaural
|
Input sensitivity
|
1.24V/150W (8?)
GAIN 29.0dB
|
Input impedance
|
Unbalanced 51k?
Balanced 28k?
|
Frequency response
|
20Hz to 20kHz (+0, -0.1dB)
1Hz to 130kHz (+0, -3.0dB)
|
Total harmonic distortion
|
0.003% or less (1kHz/8?)
0.04% or less (20Hz to 20kHz/8?)
|
S/N ratio (IHF-A) | 117dB |
Amplification feedback circuit | LIFES 1.0 |
Output configuration | 3 stage Darlington 4 paralleled push-pull |
Damping factor | 600 |
Power consumption
|
540W
290W (under no signal)
1.0W (at standby)
|
Dimension | |
---|---|
Dimension | 440(W) x 224(H) x 488(D) mm |
Weight | 48.4 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
