Product features

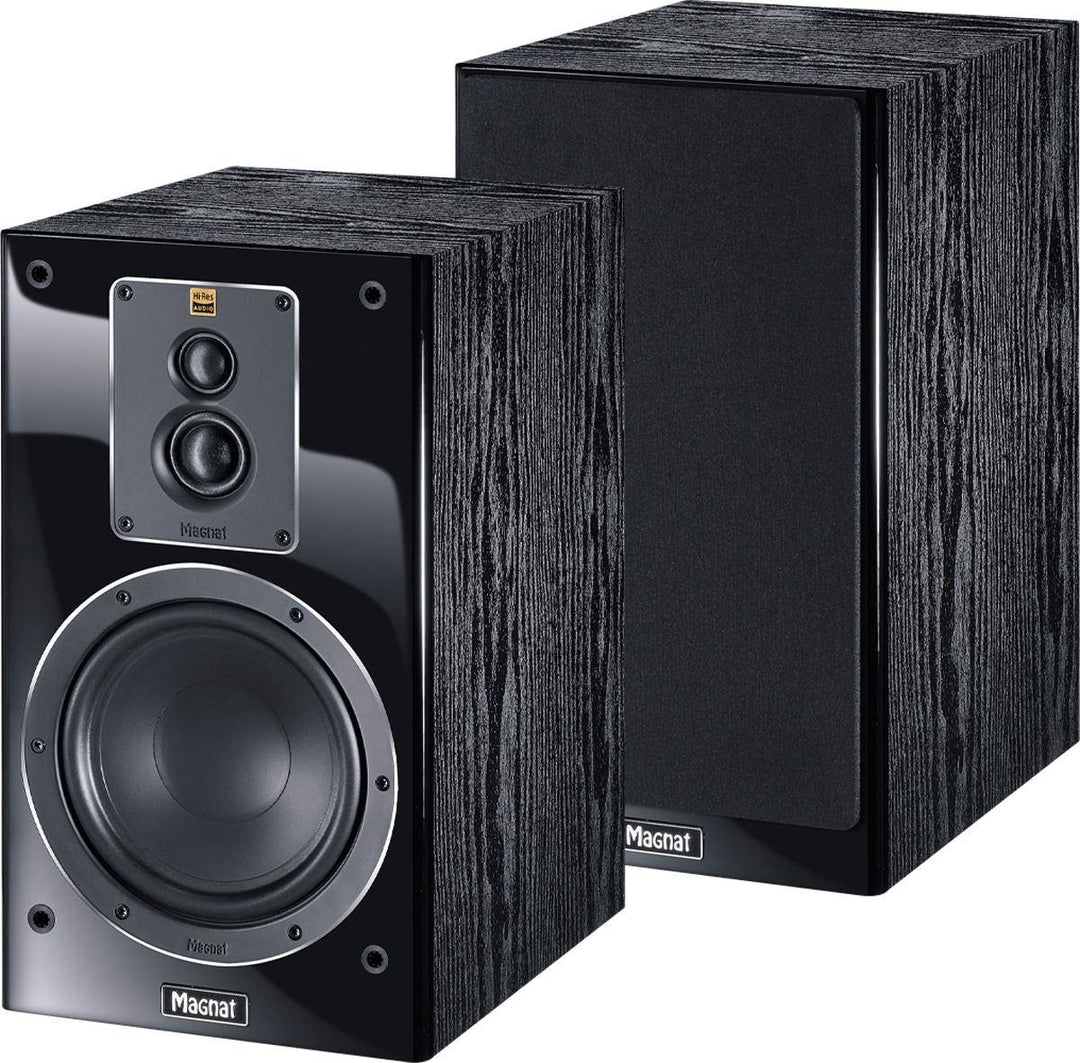

The Magnat Signature 503 boasts a visually stunning design, featuring a sleek and elegant cabinet constructed from high-quality materials. The attention to detail is evident in every aspect of its construction, from the finely finished wood veneer to the sturdy construction that minimizes unwanted resonance. The overall build quality reflects the commitment to excellence that Magnat is known for.

This loudspeaker system incorporates a three-way driver configuration, consisting of a dedicated tweeter, midrange driver, and woofer. Each driver is engineered to perform optimally within its specific frequency range, resulting in a seamless integration of sound across the spectrum. The drivers are carefully selected and matched to ensure precise audio reproduction.

IN THE BOX
Sales Package	Magnat signature 503 Bookshelf speaker and User documentation

General
Brand	Magnat
Model	Signature 503
Year
Color	black

Dimension
Dimension	205 x 365 x 282 mm.
Weight	6.1 Kilograms

Specification
PRINCIPLE	3 way bass reflex
DRIVERS	6.5“ woofer-midrange 1.2" dome-tweeter 0.75" super-tweeter
POWER HANDLING (RMS/MAX.)	100 / 170 watts
SENSITIVITY (2.8V/1M)	91 dB
IMPEDANCE	4-8 Ohms
FREQUENCY RESPONSE	32 - 53000 Hz  32 - 53000 Hz
CROSSOVER FREQUENCIES	2800 Hz / 17500 Hz
RECOMMENDED AMPLIFIER OUTPUT	> 20 Watts

Warranty
Warranty Type	Official Manufacturer Warranty
