Product features

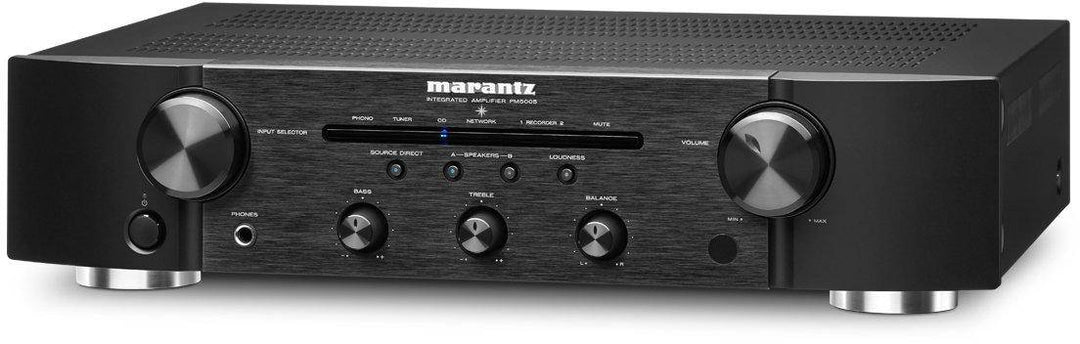

Here the Marantz has entered in the field of its first ever power Amplifier. The all analog circuitry is featured in the Marantz PM5005 stereo integrated Amplifier. The device is trusted to handle both eight ohms and four ohms that helps you to give high dynamic range along with true low impedance drive capability.



   The Amplifier include multiple analog inputs to connect turntables that includes MM phono input. Along with the headphone Amplifier jack present on front panel there is a dual input feature available for inputs and outputs. The device has a remote control available with additional functions button in order to directly control the compatible devices such as Marantz CD5005 player and Marantz Network audio players.

IN THE BOX
Sales Package	Integrated Amplifier, 5.5' AC power cord, Remote control (RC002PMCD), 2 "AAA" batteries, Owner's Manual on CD-ROM, Safety Instructions, Owner's Manual

General
Brand	Marantz
Model	PM5005
Color	black

Specifications
Speaker Surround Sound Channel Configuration	2
Audio Wattage	40 Watts
Signal To Noise Ratio	103 dB
Device interface - primary	Buttons

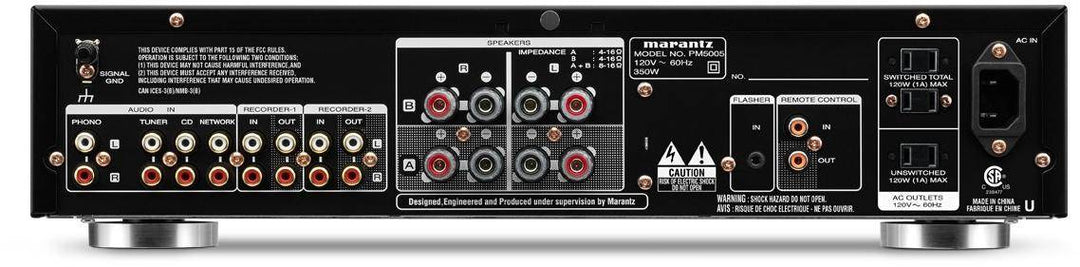

Special Features	4-ohm capability allows use with a wide range of speakers, 40 watts x 2 channels into 8 ohms (40-20,000 Hz) at 0.01% THD, Binding posts and front-panel A/B switching for two pairs of speakers, 2 sets of stereo RCA recording input/output loops, Metal chassis and front panel minimize distortion-induced vibration for cleaner sound, 1/4" headphone output, 55 watts x 2 channels into 4 ohms (40-20,000 Hz), Source Direct mode bypasses tone control circuits for cleaner sound, Front-panel tone controls (treble and bass), Signal-to-noise ratio: 102 dB (line in), 83 dB (phono), Loudness mode improves high- and low-frequency response at low volume levels, Current feedback amplification and Marantz's Hyper Dynamic Amplifier Module circuits offer accuracy, control, and a wide soundstage under high- and low-drive conditions, 4 stereo RCA audio inputs, including a phono input (for use with a moving magnet cartridge), Frequency response 10-50,000 Hz (+0dB, -1dB)
Compatible Devices	Digital-to-analog converter (DAC'S), DTH Setup box, Blu-ray Players, DVD Players, CD Players, Network Media Players, Gaming Consoles, Camcorders, Cameras, Smarphones, Tablets, Laptops, MP3 Players, Media Players, Turntable, Headphones,
Signal to Noise Ratio :High level	103dB (2V input)

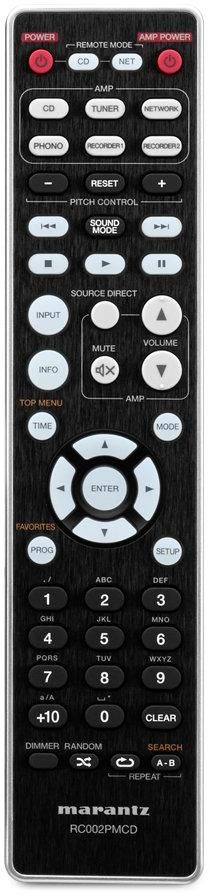

Remote Control	RC002PMCD

Dimension
Dimension	43.99 x 37.01 x 10.49 cm
Weight	6 kg 710 g

Warranty
Warranty Type	Manufacturer
Warranty Period	1 Year
