Power Output -  Stereo Mode (0.1% THD)

• 300 watts x 2, 8 Ω both channels driven
• 500 watts x 2, 4 Ω both channels driven

Power Output - Bridged Mode (0.1% THD)

• 1000 watts x 1, 8 Ω
• Bridged 4 Ω operation is not recommended

Power measurements parameters with 120VAC

0.1% THD, RMS continuous power,

full audio band (20 Hz - 20 kHz)

Current Capacity:

60 amps peak, per channel

Slew Rate

> 130 volts per microsecond

Frequency Response

• 5 Hz - 100 kHz, +0/-3 dB
• 20 Hz - 20 kHz, +0/-0.25 dB

Total Harmonic Distortion (THD)

• < 0.1 % at full power
• < 0.03 % at typical listening levels

Interchannel Crosstalk

• > 80 dB at 1 kHz
• > 70 dB at 20 kHz

Input Impedance

• Unbalanced: 33 kΩ
• Balanced: 66 kΩ,(33 kΩ per leg)

Input Sensitivity for 28.28 V Output into 8 Ω

• Unbalanced: 1 V
• Balanced: 1 V per leg

S/N Ratio

• > 115 dB, input shorted, IHF A-weighted
• > 110 dB, input shorted, unweighted

Damping Factor

> 1100 at 20 Hz

DC Trigger Requirements

+9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements

2 mV - 10 mV

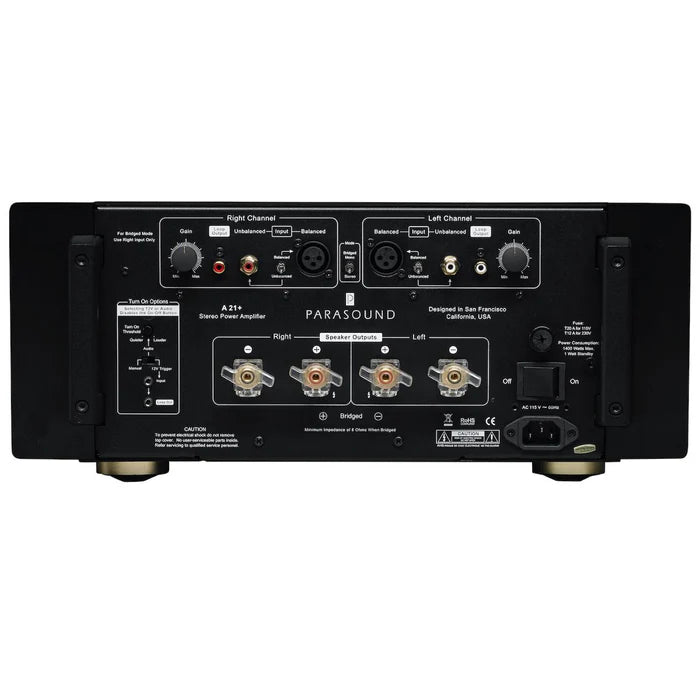

XLR Pin Identification

• 1 = Ground (Shield)
• 2 = Positive
• 3 = Negative (Return)

Dimensions

• Width: 17-5/8" (448 mm)
• Height without feet: 7-1/8" (181 mm)
• Height with feet: 7-3/4" " (197 mm)
• Depth: 20" (508 mm)
• Depth with cables: 21-1/2" (546 mm)

Weight

39.9Kg

Power Requirement

• Standby: 1 Watt
• Idle (no music playing): 160 Watts
• Typical Listening levels: 300 Watts
• Maximum: 1400 Watts

IM Distortion

< 0.04 %

Total Gain

29 dB
