Power Output -  Stereo Mode (0.06% THD)

• 160 watts x 2, 8 Ω both channels driven
• 240 watts x 2, 4 Ω both channels driven

Power Output - Stereo Mode (0.9% THD)

• 210 watts x 2, 8 Ω both channels driven
• 300 watts x 2, 4 Ω both channels driven

Power Output - Bridged Mode (0.06% THD)

• 500 watts x 1, 8 Ω
• Bridged 4 Ω operation is not recommended

Power Output -  Bridged Mode (0.9% THD)

• 600 watts x 1, 8 Ω
• Bridged 4 Ω operation is not recommended

Current Capacity:

45 amps peak, per channel

Slew Rate

> 130 volts per microsecond

Frequency Response

• 5 Hz - 100 kHz, +0/-3 dB
• 20 Hz - 20 kHz, +0/-0.25 dB

Total Harmonic Distortion (THD)

• < 0.06 % at full power
• < 0.03 % at typical listening levels

Interchannel Crosstalk

• > 85 dB at 1 kHz
• > 70 dB at 20 kHz

IM Distortion

< 0.04 %

Total Gain

29 dB

Input Impedance

• Unbalanced: 33 kΩ
• Balanced: 66 kΩ,(33 kΩ per leg)

Input Sensitivity for 28.28 V Output into 8 Ω

• Unbalanced: 1 V
• Balanced: 1 V per leg

S/N Ratio

• > 112 dB, input shorted, IHF A-weighted
• > 107 dB, input shorted, unweighted

Damping Factor

> 800 at 20 Hz

DC Trigger Requirements

+9 Vdc to +12 Vdc, 5 mA

Audio Trigger Requirements

2 mV - 10 mV

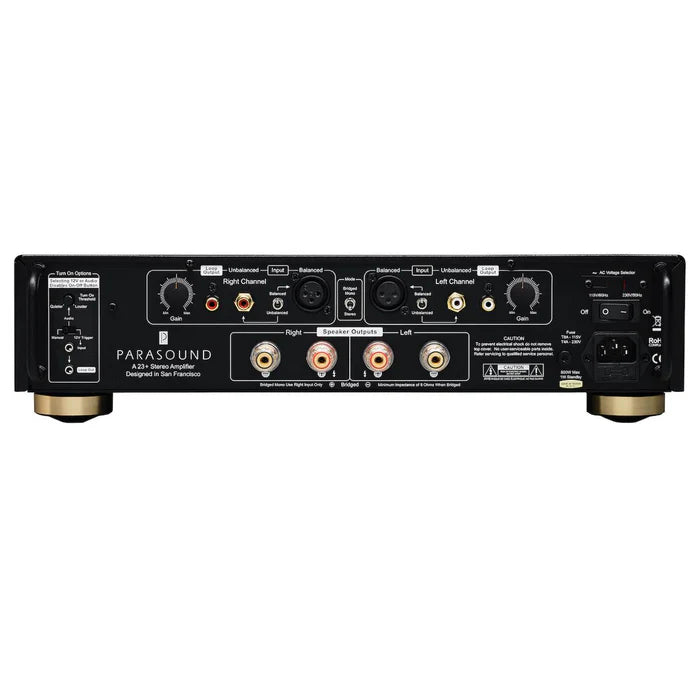

XLR Pin Identification

• 1 = Ground (Shield)
• 2 = Positive
• 3 = Negative (Return)

Dimensions

• Width: 17-1/4" (437 mm)
• Depth: 15"-1/4" (388 mm)
• Depth, with cables 17" (432 mm)
• Height, with feet: 4-1/8" (105 mm)
• Height, without feet: 3-1/2" (89 mm), 2U

Weight

14.4Kg

Power Requirement

• Power Requirement
• Standby: <1 Watt
• Idle (no music playing): 75 Watts
• Typical Listening levels: 125 Watts
• Maximum: 800 Watts
• 110-125 VAC 60 Hz or 220-250 VAC 50 Hz
• AC mains voltage is set on rear panel
