Power Output into 8 Ohm
|
80W Both Channels Driven, Nominal (THD+N <0.1%)
|
|
Power Output into 4 Ohm
|
130W Both Channels Driven, Nominal (THD+N <0.1%)
|
|
Inputs (Digital)
|
-
Digital 1 (D1) – Coax SPDIF (up to 192kHz/24bit)
-
Digital 2 (D2) – Optical SPDIF (max. 96kHz/24bit)
-
Digital 3 (TV) – Optical SPDIF (max. 96kHz/24bit)
-
Digital 4 (CD) – Coax SPDIF (up to 192kHz/24bit)
-
Digital 5 (Bluetooth) – Bluetooth (48kHz/16bit)
|
|
Inputs (Analogue)
|
-
A1 – Variable Input (no signal sense)
-
A2 – Fixed Input (with signal sense)
-
MM (Phono) - RIAA (equalised)
|
|

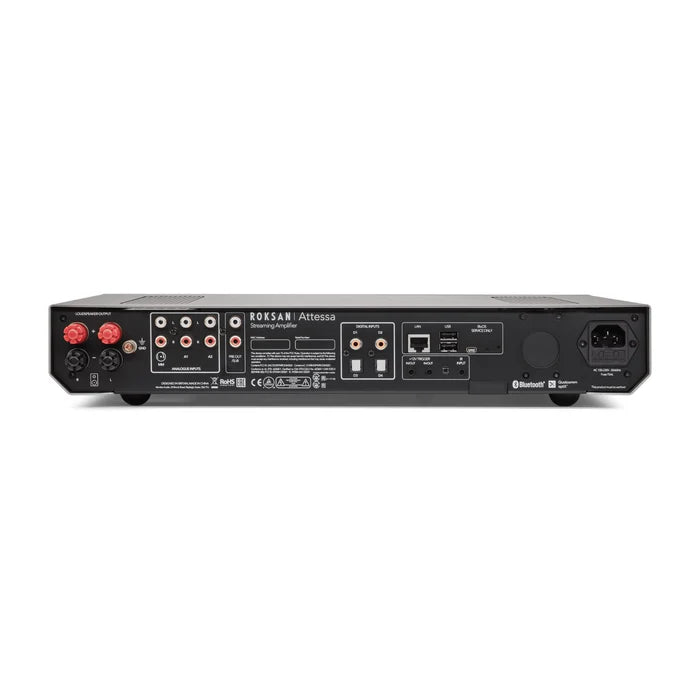

Outputs
|
-
1x pair Speaker binding posts (L&R)
-
1x pair of RCA Analogue (Pre-out/SUB)
-
3.5mm Stereo mini-jack headphone socket - 7.5Vrms drive suitable for all headphone types including high-impedance
|
|
Other
|
-
IEC mains power socket (3 pin)/Fuse holder
-
3.5mm mini-Jack – 12v trigger Input (On / Standby)
-
IR wired input 3.5mm jack
|
|
Construction
|
Formed Plated steel and bespoke machined anodised aluminium front panel.
|
|

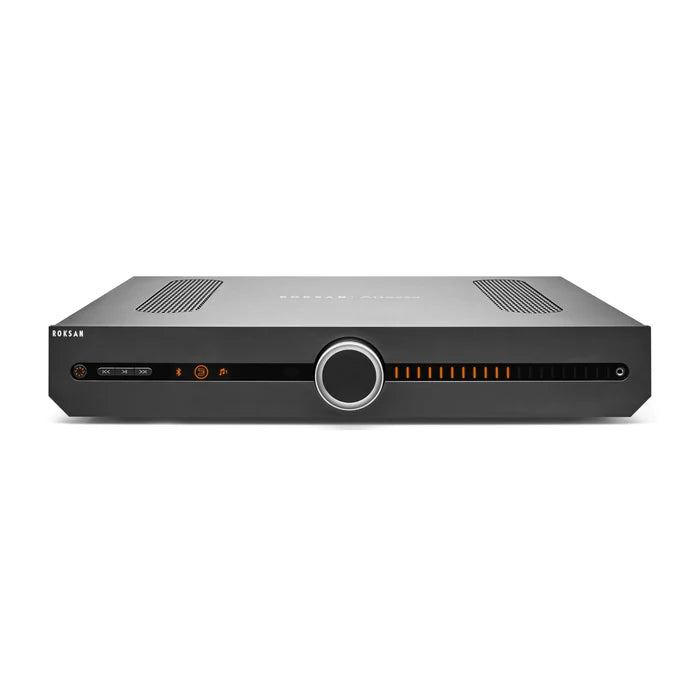

Primary Interface (on unit)
|
Dynamic Control Dial (with haptic feedback) to control volume and inputs
|
|
Secondary Interface (on unit)
|
Standby, Backward, Play/Pause, Forward
|
|
Other Interface
|

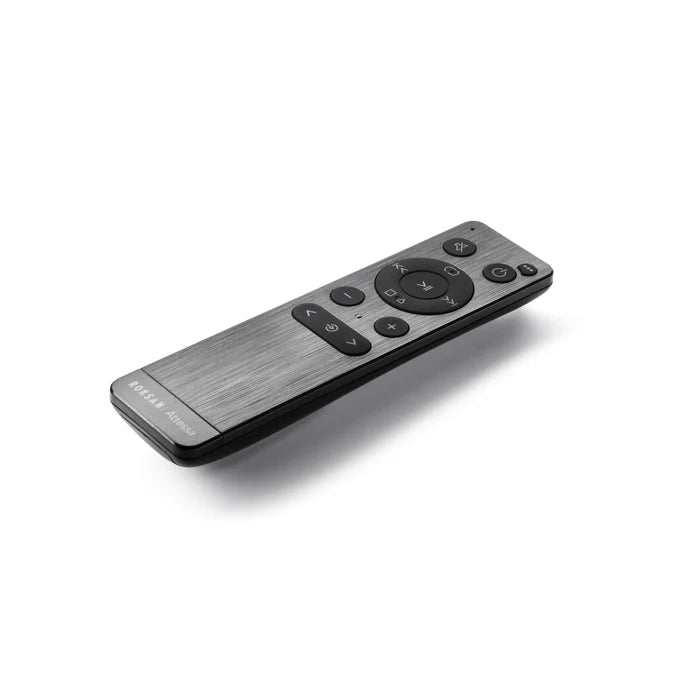

IR remote
|
|
Bluetooth
|
A2DP Audio profile / Codecs: SBC, aptX & AAC Bluetooth Range: 15m (typical)
|
|
Digital Coax Input
|
up to 24bit/192kHz PCM
|
|
Digital Optical Input
|
up to 24bit/96kHz PCM
|
|
MaestroUnite
|
-
System Creation and Control
-
Advanced System Setting
-
Over the Air Updates via Wi-Fi
|
|
Mains Transformer Rating
|
400VA
|
|
Dimensions (Including Encoder and Connections (W x H x D))
|
432 x 76 x 373 mm
|
|
Dimensions (Excluding Encoder and Connections (W x H x D))
|
432 x 76 x 346 mm
|
|
Weight
|
10.48 kg (23 lb)
|
|
Audio Formats
|
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
|
|
Hi-Resolution Audio Formats
|
MQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)
|
|
Sampling Rate
|
Up to 24 bit / 192kHz
|
|
Supported Operating Systems (Minimum Spec)
|
Windows 7 SP1, macOS 10.9 Mavericks, iOS 9.3, Android 5.0 Lollipop or above
|
|
Supported Cloud Services
|
Amazon Alexa, Amazon Music, Spotify Connect, TIDAL Connect, Deezer, Qobuz, HDTracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, Bugs
|
|
Free Internet Radio
|
TuneIn Radio, iHeartRadio, Calm Radio, Radio Paradise
|
|
Control Integrations
|
Crestron, Control4 (OS 3), Control4 (2.9.1), RTI, URC, Push, Lutron, ELAN, iPort
|
|
Format Support / Sampling Rate
|
PCM / up to 192KHz/24bit
|
