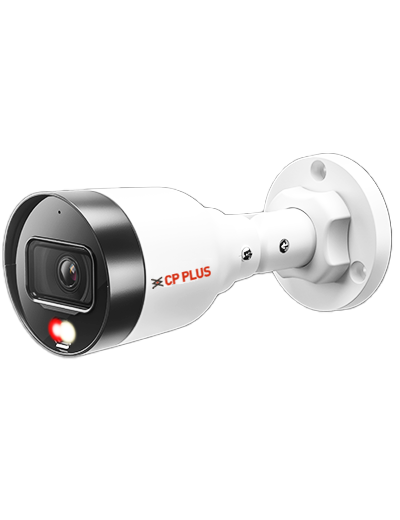

The CP-UNC-TA21L3C-LQ is a versatile and high-performance outdoor network bullet camera from the IlluMax series by CP PLUS. Designed for 24/7 surveillance, it delivers superior low-light performance by combining IR and warm light illumination, along with intelligent compression, audio support, and robust cybersecurity features—all housed within a rugged IP67-rated casing.

Key Features

• Imaging & Sensor

  • 1/2.8″ 2 MP (1920 × 1080) PS CMOS sensor with high sensitivity, offering crisp full-HD video at 25/30 fps.

• Dual Illumination (IR + Warm Light)

  • Delivers up to 30 meters of night visibility using both infrared and warm light, enhancing clarity and color accuracy in low light.

• Audio Capability

  • Built-in microphone enables audio recording to complement video.

• Advanced Video Compression

  • Supports efficient formats including InstaStream, H.265, H.264 (and variants), and MJPEG with triple-stream capability for flexible bandwidth and storage usage.

• Image Enhancement Technologies

  • Equipped with DWDR, Day/Night (ICR), 3D Noise Reduction, ROI, AWB, AGC, BLC, HLC, and digital watermarking for superior imaging.

• Flexible Mounting Angles

  • Supports Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° for easy positioning.

• Excellent Clarity with DORI Metrics

  • With a 3.6 mm lens: Detect up to ~58.9 m, Observe ~23.6 m, Recognize ~11.8 m, Identify ~5.9 m.

  • With a 2.8 mm lens (optional): Detect ~44.1 m, Observe ~17.7 m, Recognize ~8.8 m, Identify ~4.4 m.

Technical Highlights

Summary

The CP-UNC-TA21L3C-LQ is a robust and intelligent surveillance camera, excelling in full-color imaging even in complete darkness, thanks to its dual-light system. With powerful cybersecurity, advanced video compression, and flexible installation features, this bullet camera is well-suited for outdoor applications such as commercial buildings, retail premises, and residential complexes. Its reliable weatherproof design and smart functionality make it a durable choice for demanding environments.
