Key Features
- 2-Channel Amplifier Configuration
- Up to 300W of Power (150W x 2 Channels)
- HDMI, Optical, 3.5mm, Line In & Ethernet
- Wi-Fi, AirPlay 2, Chromecast & Bluetooth
- 192 kHz/24-Bit Built-In DAC
- Subwoofer Output
- DTS Play-Fi Support for Whole Home Audio
- 3.15" Wide OLED with Analog Controls
- Voice Control with Alexa, Siri & Google
- Front Headphone Jack

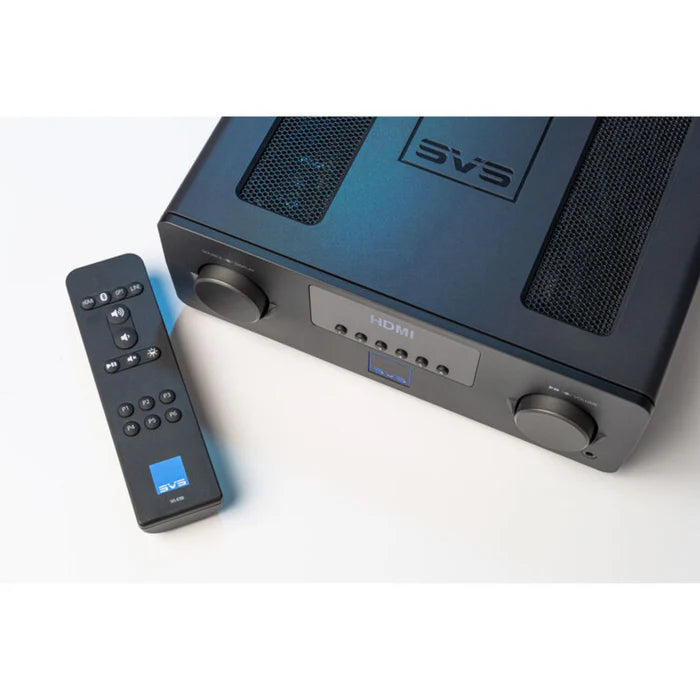

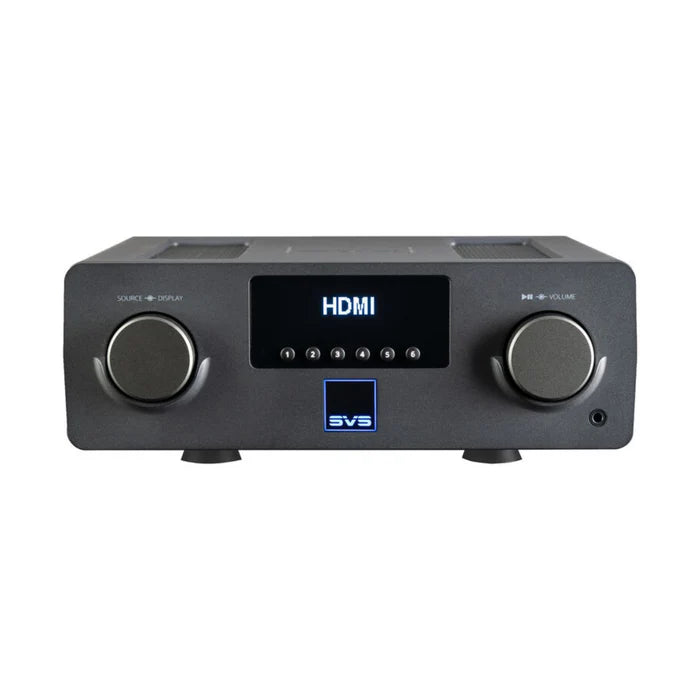

With a wide array of wired and wireless connection options, the Prime Wireless Pro SoundBase Integrated Amplifier from SVS supports traditional stereo audio or home theater integration as well as modern audio streaming. The SoundBase features a 192 kHz/24-bit DAC for audiophile-quality sound, and can power a pair of (optional) passive speakers up to 300W (150W x 2). You also have options when it comes to controlling the amplifier. You can use a mobile app, your voice, the included remote, or the front-panel controls via a 3.15" wide OLED.
Connectivity Options
If you opt for a wired connection to your TV and other components, the Prime Wireless Pro SoundBase provides an HDMI, Line In, Optical, 3.5mm AUX, and Ethernet connection. When you want to enjoy convenient wireless playback from a phone or tablet, you can utilize Wi-Fi, Apple AirPlay 2, Chromecast, or Bluetooth.
Subwoofer Out
Use the subwoofer output to add an optional subwoofer for even deeper bass.
Multi-Room/Whole Home Sound
Supporting DTS Play-Fi, you can use the DTS Play-Fi app to remotely control a multi-room or whole home audio solution when the PowerBase is combined with additional components.
Additional Features
- Supports Alexa, Siri, or Google Assistant for voice control
- HDMI ARC/eARC
- Six front panel preset controls for music services and playlists
- Supports Spotify Connect
- Front headphone jack
- 5-way binding posts support spades, banana plugs, or bare wire speaker connections
- Dual-volt switching power supply
- Detachable power cord
In the Box
- SVS Prime Wireless Pro SoundBase Integrated Amplifier

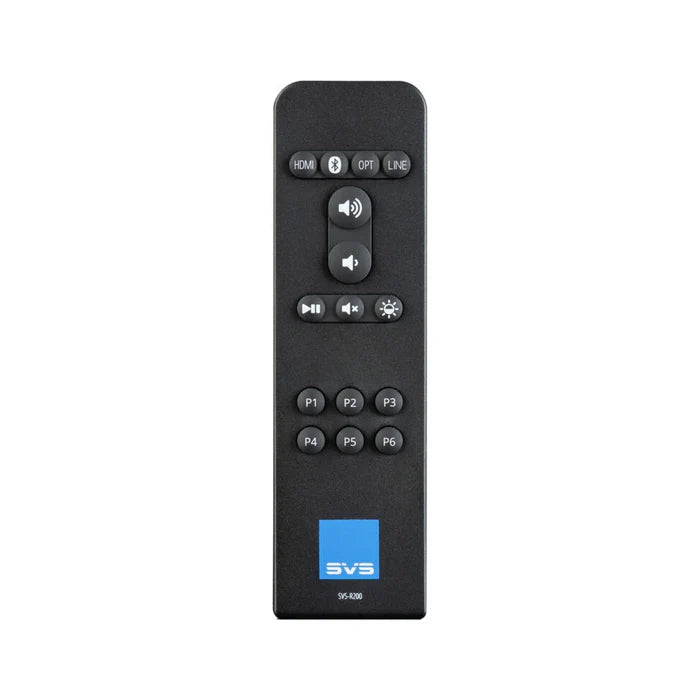

- Remote Control with Batteries
- Power Cord
- Limited 2-Year Warranty
Specification
|
Amplifier
|
-
Amplifier Type:Integrated Amplifier (Preamp/Power Amp Combo)
-
Channels:2.0
-
Amplifier Class:Class-D
-
Power Output per Channel:150 W at 4 Ohms
-
Speaker Impedance:Not Specified by Manufacturer
|
|
Audio Processing
|
|
|

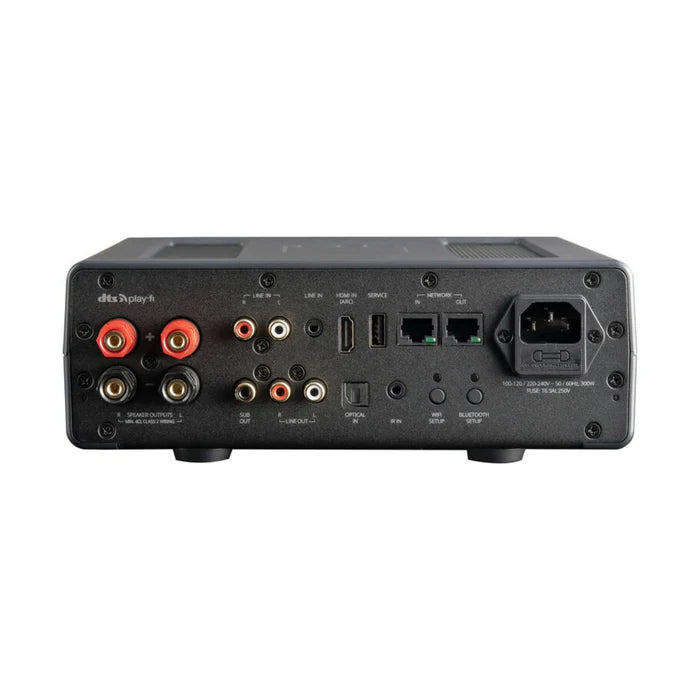

Connectivity
|
-
Rear A/V Inputs:1 x HDMI,1 x Stereo RCA,1 x 1/8" / 3.5 mm Aux,1 x Optical TOSLINK
-
Rear A/V Outputs:1 x RCA Subwoofer,1 x Stereo RCA
-
Front I/O:1 x 1/8" / 3.5 mm Headphone Output
-
Other Rear I/O:1 x RJ45,0 x 1/8" / 3.5 mm (Service)
-
Speaker Connectors:None
-
HDCP Support:None
-
Audio Return Channel (ARC):ARC, eARC
-
HDMI CEC:Yes
-
Input Impedance:Phono, RCA: 20 Kilohms
-
Signal to Noise Ratio:90 dB (1 V Input)
|
|
Wireless Connectivity
|
-
Wi-Fi:Yes
-
Bluetooth:5.0
-
Supported Audio Codecs:AAC, aptX
-
Wireless Audio Protocols:DTS Play-Fi, Spotify Connect
|
|
Control
|
-
Virtual Assistant:Works with Alexa, Works with Google Assistant, Siri
-
Mobile App Compatible:Yes: Android & iOS,As of December, 2022: Check with manufacturer for the most up-to-date compatibility
|
|
Power
|
-
AC Input Power:100 to 240 VAC, 50 / 60 Hz
|
|
Physical
|
-
Dimensions (W x H x D):L9.1 x 3.2 x 8.8" / 230.8 x 82.0 x 223.8 mm
|
|
Packaging Info
|
-
Package Weight:7 lb
-
Box Dimensions (LxWxH):12 x 12 x 6"
|
