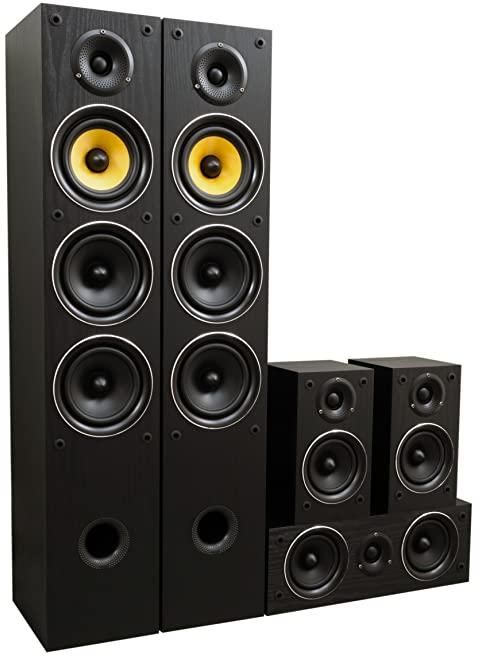

The Taga harmony TAV-506 V.2 is not just the same model as the previous one with a few cosmetic changes, but a completely redesigned construction that takes this speaker set to a whole new level in terms of sound performance. The biggest challenge for our designers and sound engineers was to combine the high-quality sound of a stereo system (for front floor standing speakers) with the amazing dynamic resolution of a home theatre. This seems like a pretty simple task, but few speaker makers can do it, and TAGA Home theatre system is one of them. It's not just about using the best components and designs. The true art behind the construction is the final adjustment to the tonal balance, where our sound engineers have proven their skill.Â
| Sales Package | 2 x TAV-506F v.2, 2 x TAV-506S, 1 x TAV-506C , User documentation |
| General | |
|---|---|
| Brand | taga-harmony |
| Model | TAV-506 |
| Year | 2022 |
| Color | Brown |

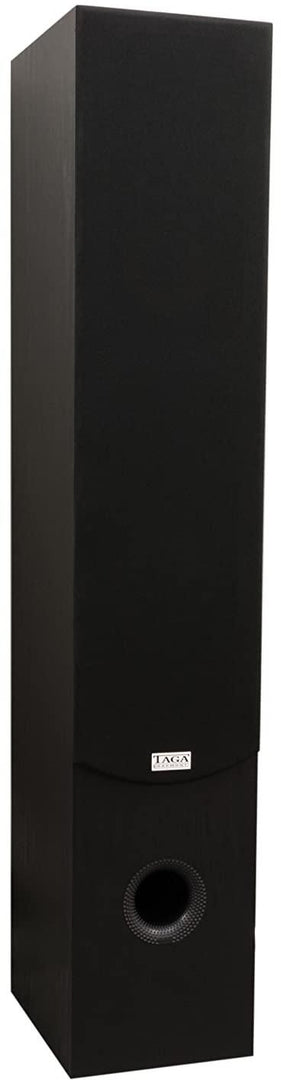

| Specifications (TAV-506F v.2 – Floorstanding Speakers) | |
|---|---|
| Design | 3-way, floorstanding, front bass-reflex |
| High-Frequency Drive | 25mm (1″), TWG faceplate, silk dome |
| Midrange Driver | 133mm (5.25″), glass fiber cone |
| Bass Driver | 2 x 133mm (5.25″), paper cone |
| Recommended Amplifier Power | 20-120W |
| Frequency Response | 42Hz-25KHz |
| Impedance | 6 ohm |
| Sensitivity | 89 dB |
| Dimensions (H x W x D) | 90 x 17 x 23,5 cm (excl. spikes) |
| Weight (net) | 20.4 kg pair |
| Specifications (TAV-506C v.2 – Center Speaker) | |
|---|---|
| Design | 2-way, center, double rear bassreflex |
| High-Frequency Driver | 25mm (1″), TWG faceplate, silk dome |
| Bass / Midrange Driver | 2 x 102mm (4″), paper cone |
| Recommended Amplifier Power | 20-100W |
| Frequency Response | 55Hz-25KHz |
| Impedance | 6 ohm |
| Sensitivity | 88 dB |
| Dimensions (H x W x D) | 14 x 40 x 14.5 cm |
| Weight (net) | 2.8 kg pc. |

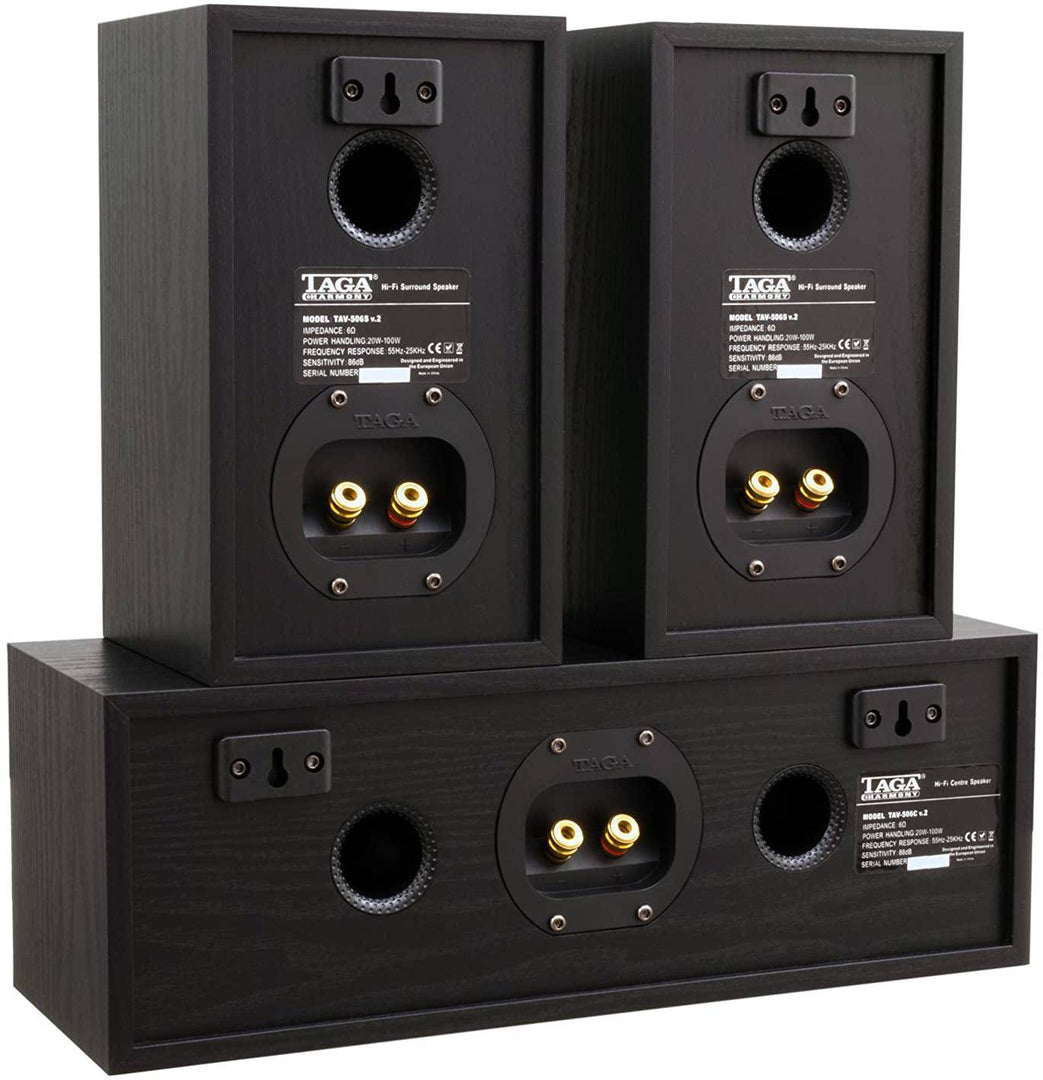

| Specifications (TAV-506S v.2 – Surround Speakers) | |
|---|---|
| Design | 2-way, surround, rear bass reflex |
| High-Frequency Driver | 25mm (1″), TWG faceplate, silk dome |
| Bass / Midrange Driver | 102mm (4″), paper cone |
| Recommended Amplifier Power | 20-100W |
| Frequency Response | 55Hz-25KHz |
| Impedance | 6 ohm |
| Sensitivity | 86 dB |
| Dimensions (H x W x D) | 24.5 x 14 x 14.5 cm |
| Weight (net) | 3.5 kg pair |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
