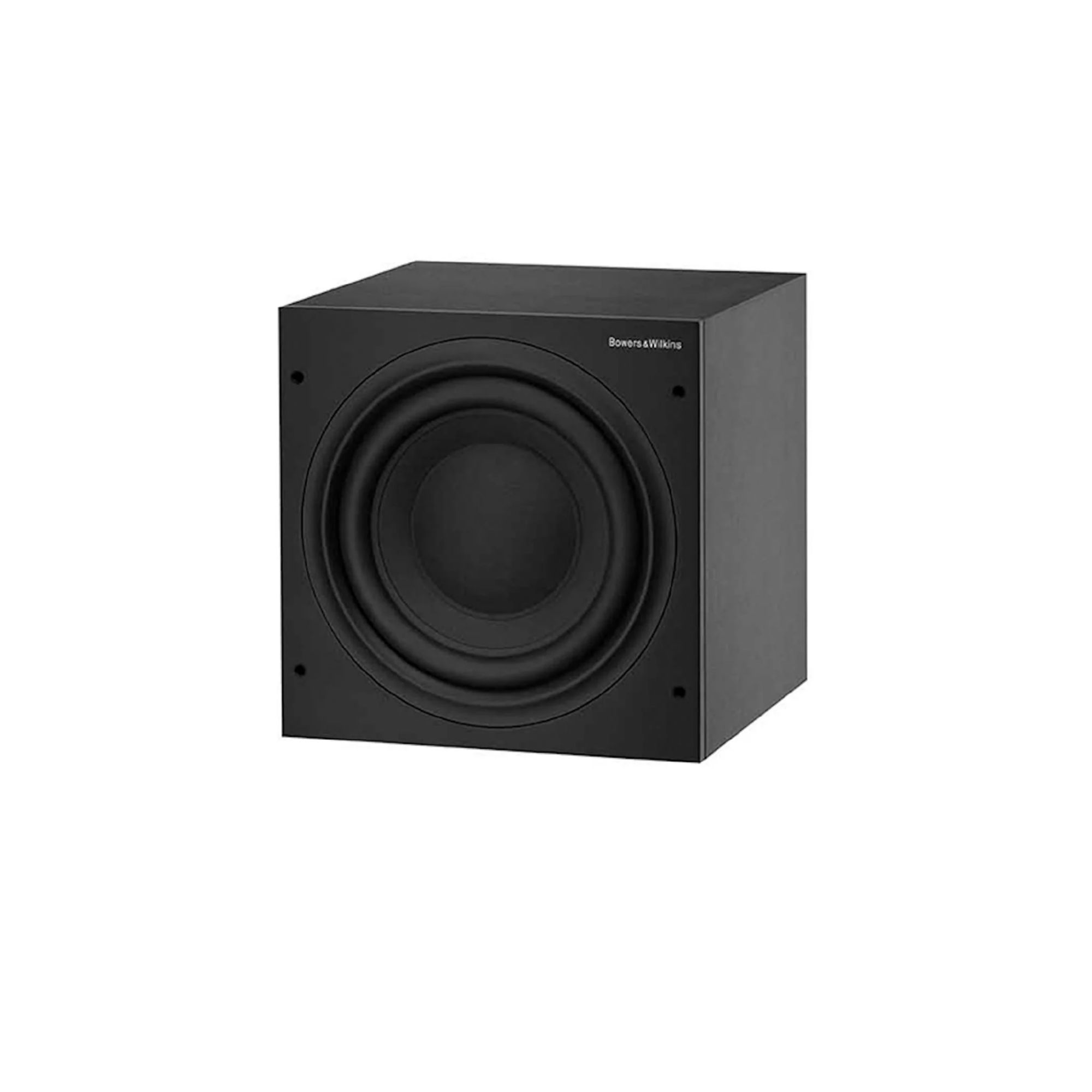

Bowers & Wilkins ASW610XP - Powered Subwoofer

Bowers & Wilkins ASW610XP - Powered Subwoofer


The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theater system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the unit's 500W amplifier, long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry, the unit remains cool and efficient under pressure. In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, aramid fibers and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet. Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimized; bass precision, power and enjoyment are maximized.


SKU: Bowers & Wilkins ASW610XP - Po

Categories: HOME THEATRE, SPEAKERS, Subwoofers


  • Input level (line in)
  • Input level (speaker in)
  • Low-pass filter frequency (line in only)
  • Low-pass filter bypass
  • Bass extension
  • Bass roll-off alignment
  • Auto sense on / standby
  • Phase switch


Active closed-box subwoofer system

Drive unit

ø250mm (10 in) paper / Aramid fiber cone long-throw

Frequency range

-6dB at 18Hz and 25 / 140Hz adjustable (EQ at A)

Frequency response

±3dB 25Hz – 40 / 140Hz adjustable (EQ at A)

Bass extension

  • -6dB at 18Hz (position A)
  • -6dB at 23Hz (position B)
  • -6dB at 28Hz (position C)


Power output: 500W

Rated power consumption

98W / 1W standby

Input impedance


Signal / noise



  • Line in (RCA Phono)
  • Speaker in (Binding post)
  • 12v trigger (3.5mm jack)
  • Low-pass filter
  • Active 4th-order, variable cut-off frequency


  • Height: 325mm (12.8in) not including feet or spikes
  • 337mm (13.3in) including feet
  • 353mm (13.9in) including spikes
  • Width: 325mm (12.8in)
  • Depth: 348mm (13.68in) not including grilles
  • 375mm (14.8in) including grilles and controls

Net weight

18.65kg (41.12 lb)

Cabinet finishes

  • Black
  • White

Grille finishes

  • Black
  • Grey
