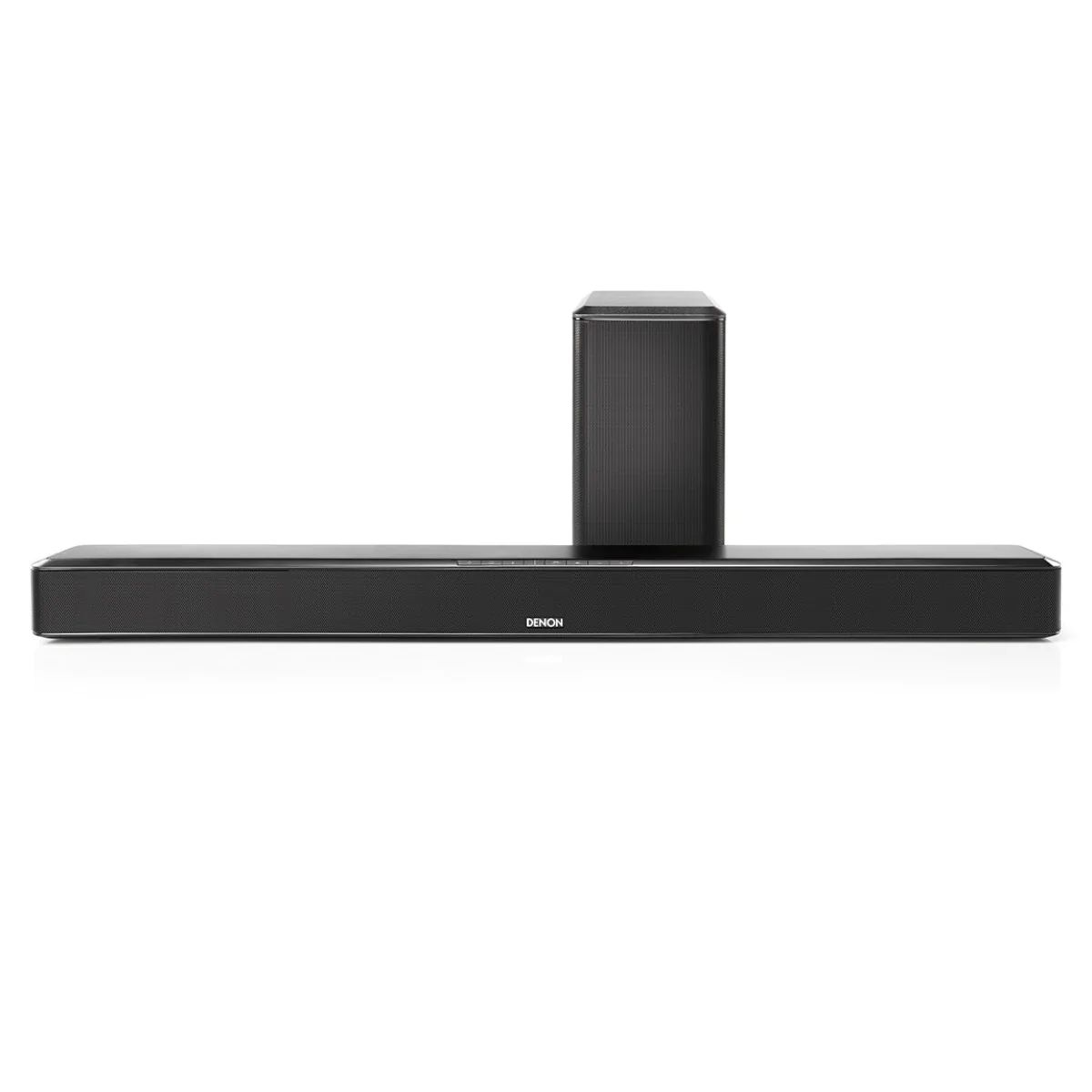

Denon DHT-S514H - Soundbar and Wireless Subwoofer

Denon DHT-S514H - Soundbar and Wireless Subwoofer



Featuring 175 watts of total system power, the DHT-S514 soundbar and wireless subwoofer together deliver true high fidelity sound with any TV for an enthralling listening experience. As today's flat panel TVs get thinner and thinner, so does their sound quality, and the DHT-S514 features a host of high performance components to deliver rich, enveloping wide range sound. The soundbar features dual 2"x5" precision drivers that reproduce the upper bass and midrange audio, delivering clear audio especially in the vocal range. There are also dual ½" dome tweeters that reproduce the entire treble range, with response extending to 20 kHz.


The matching wireless subwoofer features dual 5¼" woofers that work in tandem to deliver the authoritative deep bass found in today's movie and music soundtracks for distortion-free bass at any listening level. The compact subwoofer can be placed horizontally or vertically for the widest range of installation options.


Both the soundbar and the subwoofer feature advanced digital audio amplification that delivers crystal clear sound along with wide dynamic range, as well as providing high energy efficiency and operational stability for long life.

SKU: Denon DHT-S514H - Soundbar and

Categories: HOME THEATRE, SPEAKERS, Soundbars


Rated Output
Soundbar: 10 W x 2 (4 ohms, 200 Hz, 0.7% T.H.D)
Subwoofer: 49 W (4 ohms, 60 Hz, 0.7%T.H.D)


Frequency Range


40 Hz to 20 kHz


Speaker Size
Soundbar: 2 x 0.55" (13.97 mm) high-frequency tweeters
Soundbar: 2 x 2.02 x 5.00" (51.31 x 127.00 mm) HHRT mid-range drivers
Subwoofer: 2 x 5.23" (132.84 mm) low-frequency woofers


Sound Modes


Dialog, Music Wide, Movie Wide, Night Listening, BassTrac




Dolby Digital, DTS




Bluetooth 2.1 + EDR, A2DP, apt-X


Wireless Technology


Subwoofer: 2.4 / 5.2 / 5.8 GHz tri-band frequency


1 x HDMI
1 x Digital Optical
1 x Digital Coaxial
1 x 3.5 mm


1 x HDMI
1 x IR Blaster


Other Connectors
1 x Power (soundbar)
1 x Power (subwoofer)
1 x Service


ARC (Audio Return Channel)




Power Requirements


120 VAC, 60 Hz


Power Consumption
Soundbar: 24 VDC, 2.5 A, Standby: 0.5 W or less
Subwoofer: Active: 60 W


Dimensions (HxWxD)
Soundbar: 3.14 x 39.53 x 3.08" (79.76 x 1004.06 x 78.23 mm)
Subwoofer: 12.33 x 6.75 x 13.63" (313.18 x 171.45 x 346.20 mm)


Soundbar: 5.1 lb (2.3 kg)
Subwoofer: 13 lb (5.9 kg)
