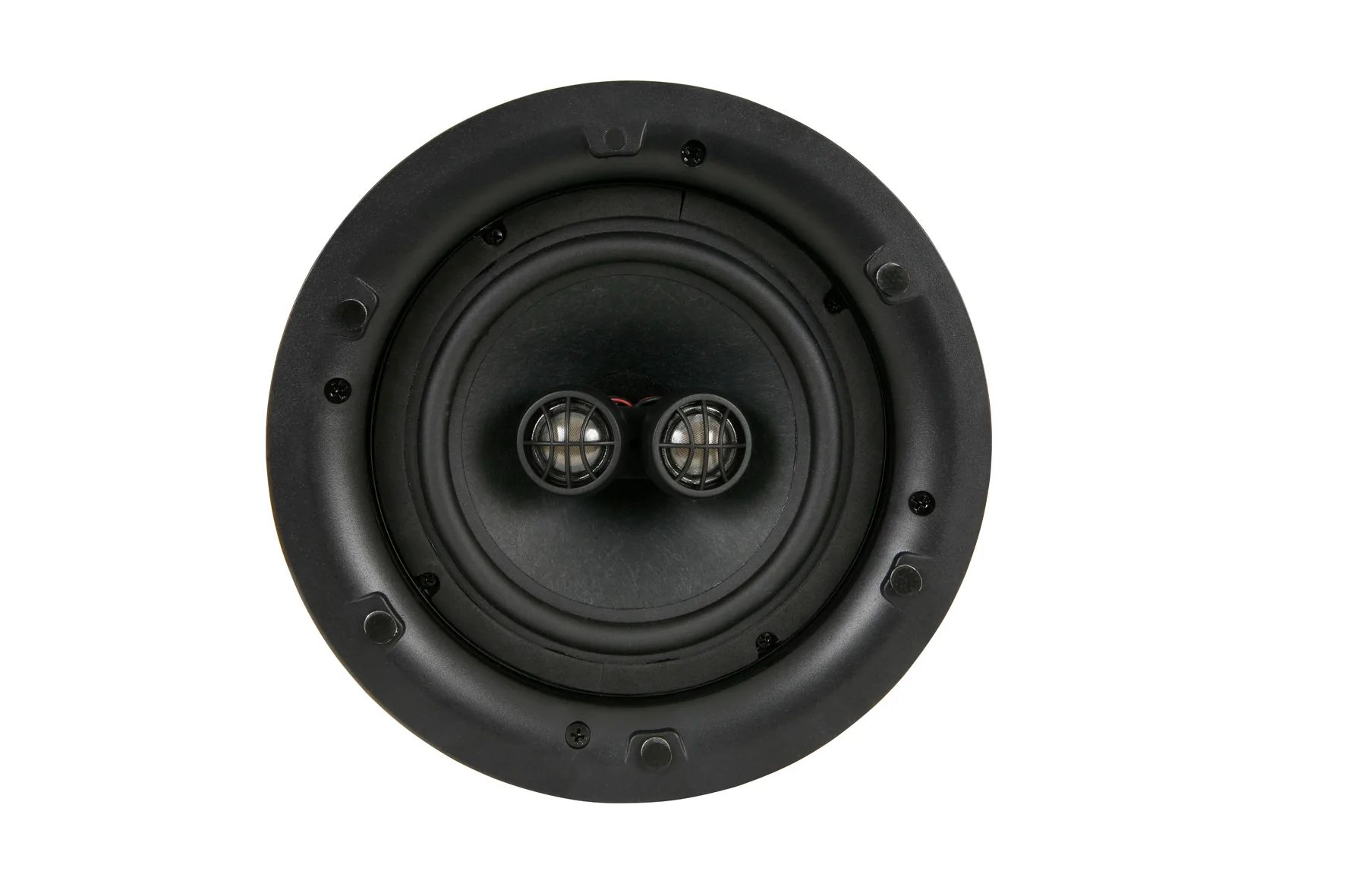

Connect both stereo channels to a single speaker. The bass driver have dual 4 ohm voice coils and two separate angled 20 mm tweeters for best stereo image.
A speaker in the classical round style. Only high class components are used and the speakerts can be used in most environments. This speaker has a small edge and the grille is attached to the frame with small neodymium magnets..
Perfect as extra speaker in small areas like kitchen, bath rooms or small rooms where two separate speaker are difficult to install.
Selectable tweeter level in two steps.
Sold as single units.
|Description / type||16,5 cm / 6,5" single stereo coaxial speaker|
|Impedance||2 x 4 ohm dual voice coil|
|Sensitivity||91 dB (1W/1m)|
|Frequency range||50 - 20 000 Hz|
|Recommended amplifier||20-120 Watt|
|Tweeter||2 x 20 mm / 0,8" silk dome tweeter|
|Woofer size||16,5 cm (6,5")|
|Cone material||Paper with rubber surround|
|Outer dimensions||234 mm / 9,21"|
|Cutout dimensions||205 mm / 8,07"|
|Mounting depth||103 mm / 4,06"|
|Baffle thickness||10-33 mm|
|Off-axis angle||+- 45 degrees in distributed audio systems|
|Finish / colour||White with magnet grille.|
|Weight||1,95 kg / 4,3 lbs|
|EAN Bar code||7331644624608|
