For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.
For applications that require audio coverage in multiple zones, K-array has designed a complete system that is capable of connecting all the speakers to one network.

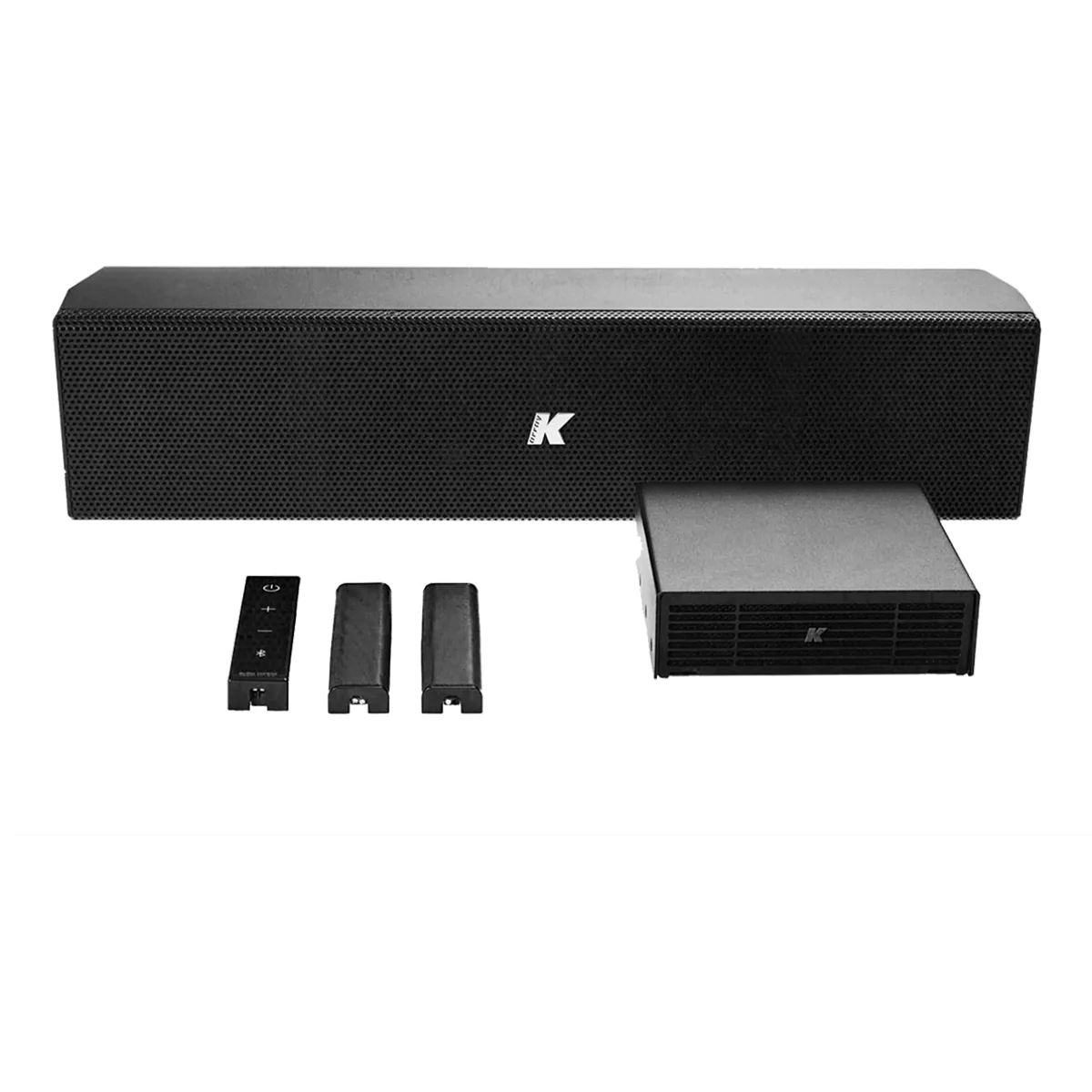

SKU: K-array Azimut - KAMUT2L
Categories: HOME THEATRE, SPEAKERS, On-Wall Speakers
Power Handling |
|
Impedance |
|
Frequency range | 45Hz – 19kHz (-10dB) |
SPL 1W/1mt |
|
Maximum SPL |
|
Horizontal | Subwoofer: omni, Mid-high speakers: 140° |
Vertical | Subwoofer: omni, Mid-high speakers: 20° |
Crossover Type | Internal digital crossover |
Low frequency | 2 x 4” Ferrite Magnet with 1” voice coil 2 x 4” Passive Radiator |
Mid-High frequency | 4 x 0.5” Neodymium Magnet with 0.5” voice coil |
Analog Balanced | Left: 3-pin phoenix, Right: 3-pin phoenix |
Analog Unbalanced | 3.5mm Jack Stereo |
Optic | Fibre Optic Jack Connector |
USB | 4 x USB 2.0 |
Bluetooth | 4.1 Bluetooth Low Energy |
Subwoofer | 4-pin phoenix (Ch1-Ch2 PBTL config) |
Mid-high speakers |
|
Wired Remote Control | 2-pin phoenix |
Hardware Control | 5-pin phoenix (4 x GPIO ports) |
Network | 10-100 Mbps Ethernet (RJ45), Wirelss LAN 802.11n |
Sample Rate | 96 kHz |
Bit Depth | 32 bit |
Amplifier Type | 4-channel Class-D audio amplifier |
Power | 4 x 50W @ 4Ω - 10% THD |
Azimut Config |
|
Protection Type | Output Short Protection,DC Offset, Overtemperature, Undervoltage and Overvoltage, 40V Load Dump,Open Ground and Power Tolerant |
Operating Range | 24Vdc - 5A |
Connector | 2.5mm power jack |
Dimensions |
|
Weight |
|
