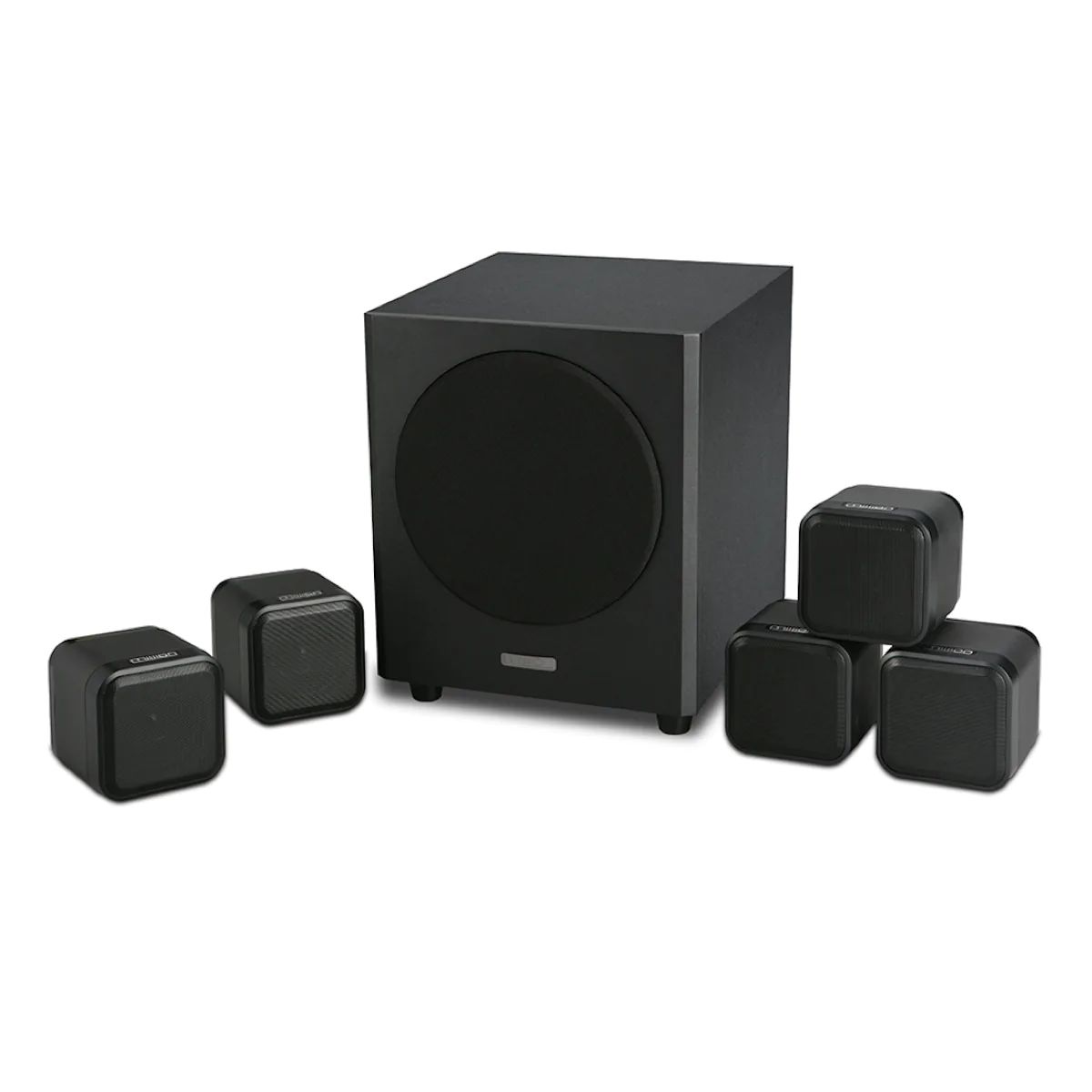

SKU: Mission Mcube + SE - 5.1 Speak
Categories: HOME THEATRE, 5.1 speakers packages
GENERAL DESCRIPTION |
Wide bandwidth bookshelf/surround speaker |
ENCLOSURE TYPE |
Closed box |
TRANSDUCER DRIVER |
3” Full range |
AV SHIELD |
No |
SENSITIVITY (2.83V@1M) |
85 dB |
RECOMMENDED AMPLIFIER POWER |
40-80 W |
NOMINAL IMPEDANCE |
8 Ohms |
MINIMUM IMPEDANCE |
3.6 Ohms |
FREQUENCY RESPONSE (+/-3dB) |
120Hz-20kHz |
BASS EXTENSION (-6dB) |
110 Hz |
CABINET VOLUME (in lites) |
0.52 L |
DIMENSION (H x W x D) in mm |
100 x 100 x 103 |
CARTON SIZE (L x W x H) in mm |
390 x 390 x 525 (packed in system, including subwoofer and 5 pcs satellite speakers) |
NET WEIGHT (Kg) |
12 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
GROSS WEIGHT (Kg) |
14 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
FINIS COLOUR |
Garphite black & ivory |
STANDARD ACCESSORIES |
Desk stand, user manual, guarantee certificate |
GENERAL DESCRIPTION |
Active closed-box subwoofer system |
ENCLOSURE TYPE |
Closed box |
TRANSDUCER COMPLEMENT |
8” (200mm) long throw bass driver |
INPUT SENSITIVITY |
200mV for maximum output |
AMPLIFIER POWER OUTPUT |
70W |
PEAK POWER OUTPUT |
150W |
PEAK SPL |
110 dB |
FREQUENCY RESPONSE |
40 Hz - 150 Hz |
BASS EXTENSION (-6dB) |
35 Hz |
CROSSOVER FREQUENCY |
35 Hz - 150 Hz |
SIGNAL TO NOISE RATIO (s/n) |
>85 dB |
SPECIAL FEATURES |
Phase inversion, Auto on/off, Low pass filter frequency adjustment |
DIMENSION (H x W x D) in mm |
328 x 268 x 294 |
CARTON SIZE (L x W x H) in mm |
390 x 390 x 525 (packed in system, including subwoofer and 5 pcs satellite speakers) |
NET WEIGHT (Kg) |
12 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
GROSS WEIGHT (Kg) |
14 Kg (Packed in a system, including subwoofer and 5 pcs satellite speakers) |
FINIS COLOUR |
Garphite black & ivory |
STANDARD ACCESSORIES |
Desk stand, user manual, guarantee certificate |
