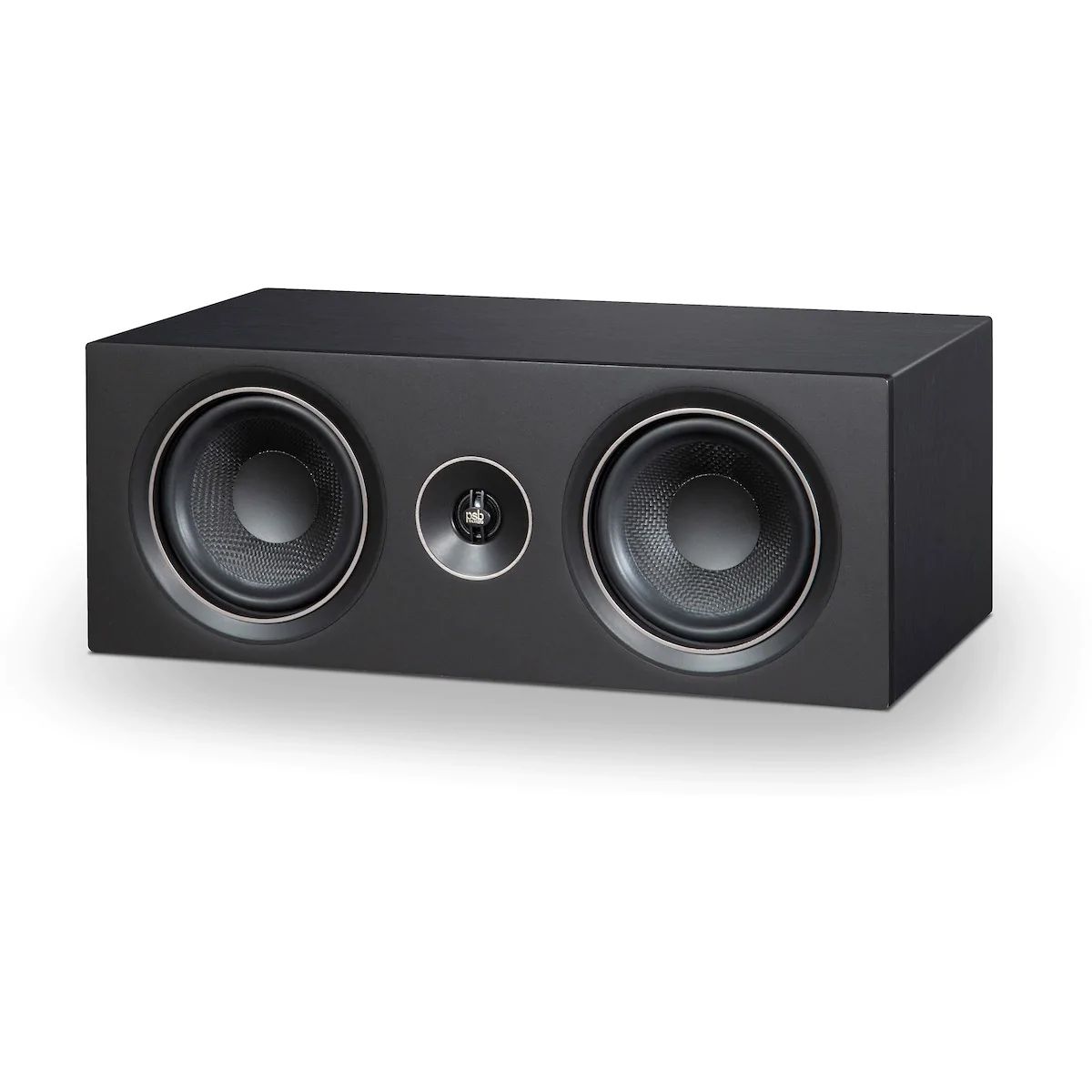

When paired with the Alpha Series’ newly designed tweeter, the C10’s custom 5¼” (133mm) woofer provides remarkable low-frequency response and the highest speaker efficiency in its class. The woofer is constructed from a special textured polypropylene compound that minimizes cone breakup and lowers distortion at full excursion. It’s also supported with dual layer voice coils and a bass reflex design that uses the rear-firing port tube to control the bass response down to room-shaking levels.
SKU: PSB Speakers Alpha C10 - Centr
Categories: HOME THEATRE, SPEAKERS, Centre Speakers
On Axis @ 0° ±3dB | 55-21,000Hz |
On Axis @ 0° ±1 1/2dB | 65-20,000Hz |
Off Axis @ 30° ±1 1/2dB | 65-10,000Hz |
LF Cutoff -10dB | 37Hz |
Anechoic Chamber | 88dB |
Listening Room | 90dB |
Nominal | 8 Ohms |
Minimum | 6 Ohms |
Recommended | 15 – 120 Watts |
Program | 60 Watts |
Tweeter (Nominal) | 3/4” (19mm) Black Anodized Aluminium Dome with Ferrofluid and Neodymium Magnet |
Woofer (Nominal) | 2 x 5 1/4” (133mm) Textured Polypropylene Cone with Rubber Surround |
Crossover | 2,500Hz, LR4 |
Internal Volume | 0.44 cu ft (12.5L) |
Design Type | Tuned Port Bass Reflex 2” (49mm) Rear Port |
Size (W x H x D) |
|
Weight |
|
