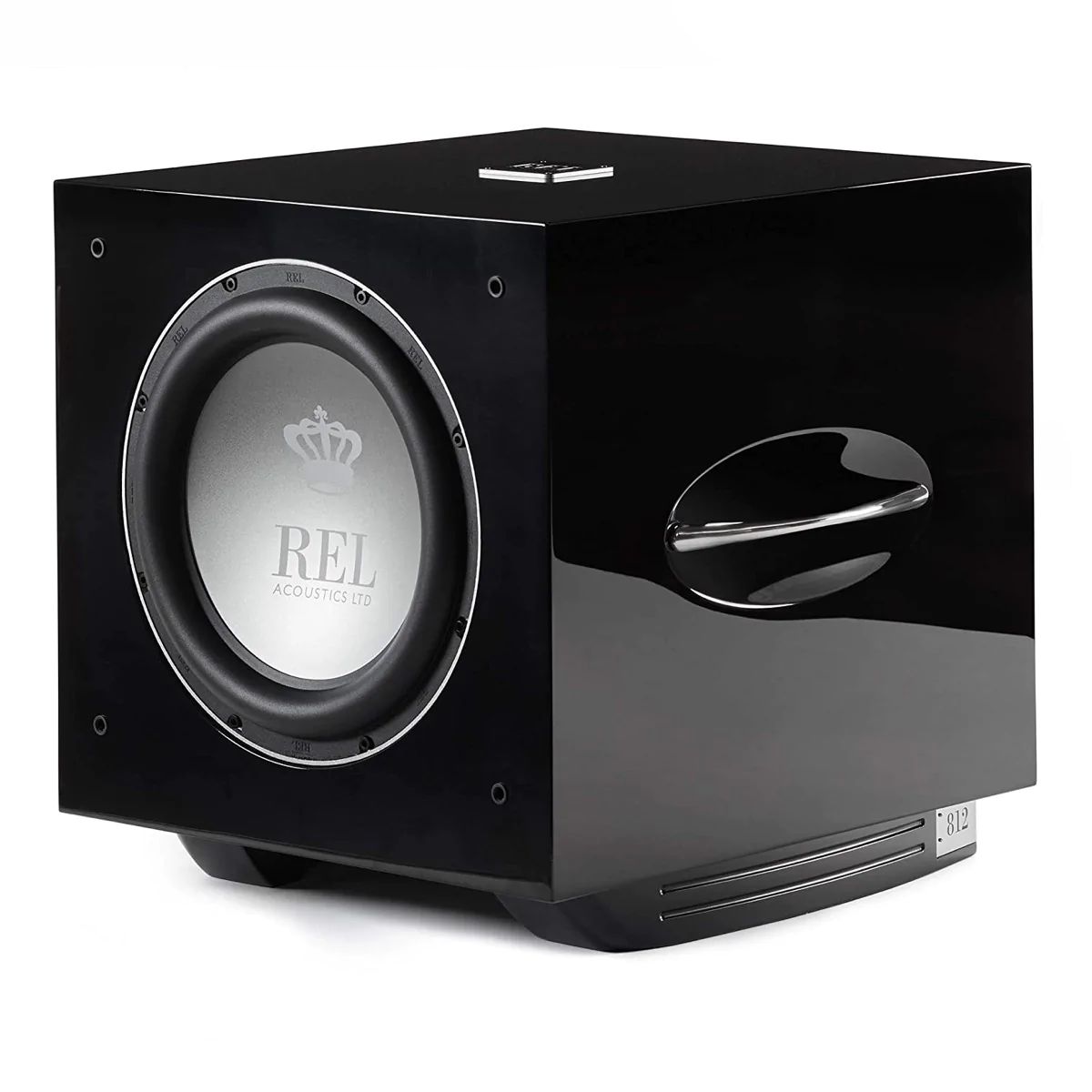

For S/812, every aspect of the previous generation’s inner workings were examined without regard to its critical and customer-driven success. REL turned a fresh eye to power requirements, driver improvements, and specialty filters, upgrading each to extract all the extra performance possible. All this alongside the cabinet refinements necessary for those upgrades to emerge cleanly. This latest S range is a triumphant development that has exceeded every expectation of our design team.
REL’s requirements were for far stronger deep bass output between 19-35 Hz, vastly improved theatre dynamics, and an even more open and spacious soundfield which benefits both music and film. Turned to REL’s NextGen5 amplifier, tuned to 800 watts, with huge reserves of power beyond this, added a light film of carbon fibre to the rear of the driver to handle the extra power, and developed two new sets of custom filters to extract the utmost in brute force and spaciousness. Finally, imbued 812 with the ability to be stacked in 4- or 6-unit line arrays.
SKU: REL Acoustics S/812 - Active S
Categories: HOME THEATRE, SPEAKERS, Subwoofers
Type | Front-firing active driver, down-firing passive |
Active Driver Size & Material | 12 in., 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis |
Passiver Radiator Size & Material | 12 in., 300mm Carbon/Carbon flat cone structure, steel chassis |
Low Frequency Extention | -6dB at 19 Hz |
Input Connectors | High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR |
Output Connectors | High Level Neutrik Speakon, LFE RCA, LFE XLR |
Power Output | 800 Watts (RMS) |
Amplifier Type | NextGen3 Class D |
Wireless Capability | Yes- REL AirShip system [required] . Sold separately. |
Fully Electronic Set Safe | Yes |
D.C Fault | Yes |
Output Short | Yes |
Mains Input Voltage | 220-240 volts, 110-120 volts for certain markets |
Fuses | 5 Amp 220 volts operation, 9 Amp 120 volts operation |
Dimensions (W X H X D) | 17.5 x 18 x 20 in. (430 x 455 x 514 mm) |
Weight | 34Kg |
Mains Lead | Yes |
Neutrik Speakon | Yes (10 Meters Nominal) |
Interconnect | Yes |
Users Manual | Yes |
