T/5x builds on its predecessor’s reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to REL’s legendary reliability. Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theatre a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theatre without needing to change a single setting. Magic? No, superior engineering.
Standby Mode switch is only included on 220V units.

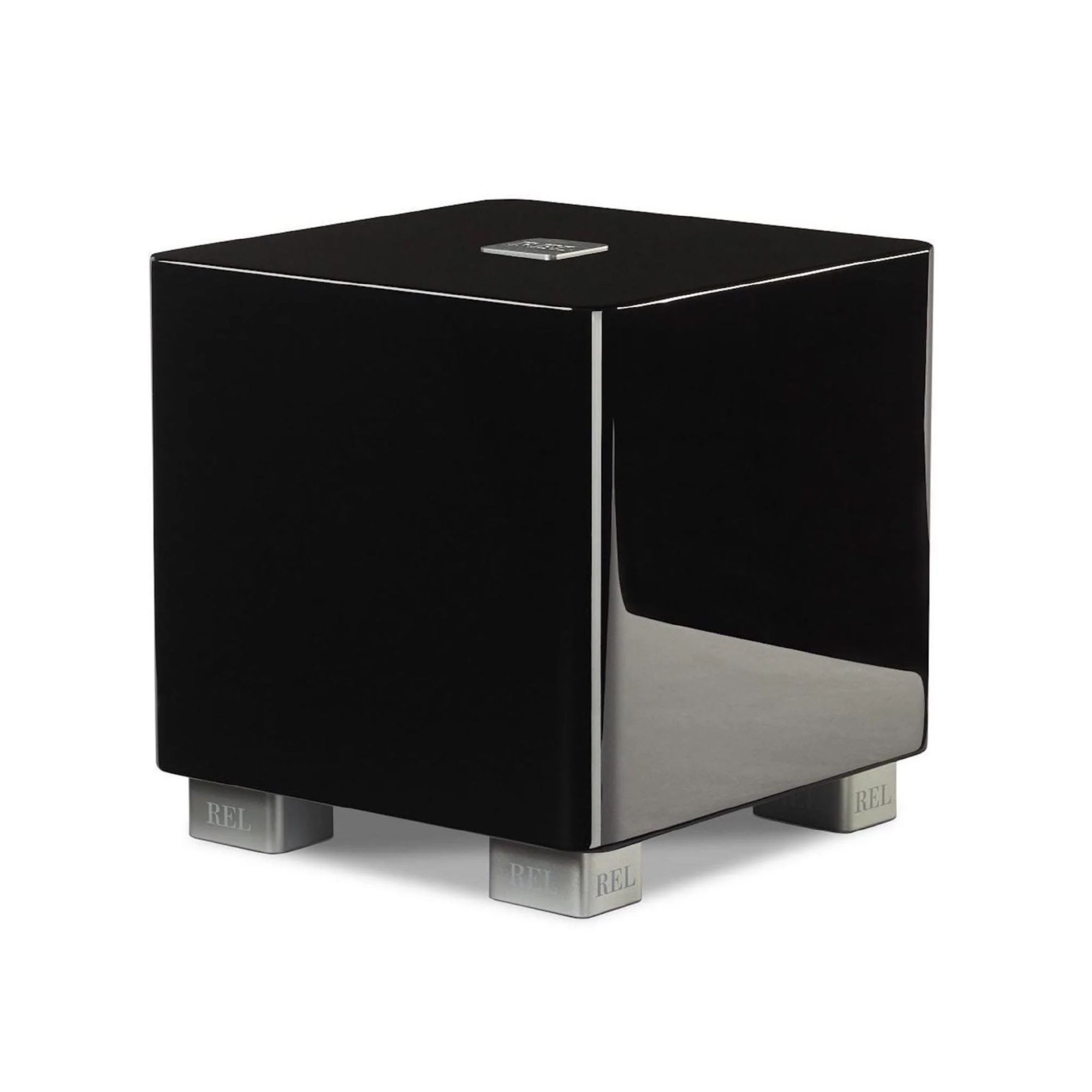

SKU: REL T/5x - 8" Active Subwoofer
Categories: HOME THEATRE, SPEAKERS, Subwoofers
TYPE | Closed Box, down-firing driver |
ACTIVE DRIVER SIZE & MATERIAL | 8 in. FibreAlloy™, 200mm long-throw, inverted alloy dust cap, steel chassis |
PASSIVE RADIATOR SIZE & MATERIAL | N/A |
LOW FREQUENCY EXTENTION | -6dB at 32 Hz |
INPUT CONNECTORS | High Level Neutrik Speakon, Low Level single RCA, LFE RCA |
OUTPUT CONNECTORS | N/A |
POWER OUTPUT | 125 watts (RMS) |
AMPLIFIER TYPE | Class A/B |
WIRELESS CAPABILITY | Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip |
FULLY ELECTRONIC SET SAFE | Yes |
D.C. FAULT | Yes |
OUTPUT SHORT | Yes |
MAINS INPUT VOLTAGE | 220-240 volts, 110-120 volts for certain markets |
FUSES | 1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation |
Dimensions (W x H x D) | 11.8 x 12 x 12.3 in., (300 x 307 x 313 mm) |
NET WEIGHT | 31.5 lbs. (14.3 kg) |
FINISH | High Gloss Black, High Gloss White, 5 coats |
MAINS LEAD | Yes |
NEUTRIK SPEAKON | Yes (10 Meters Nominal) |
USERS MANUAL | Yes |
