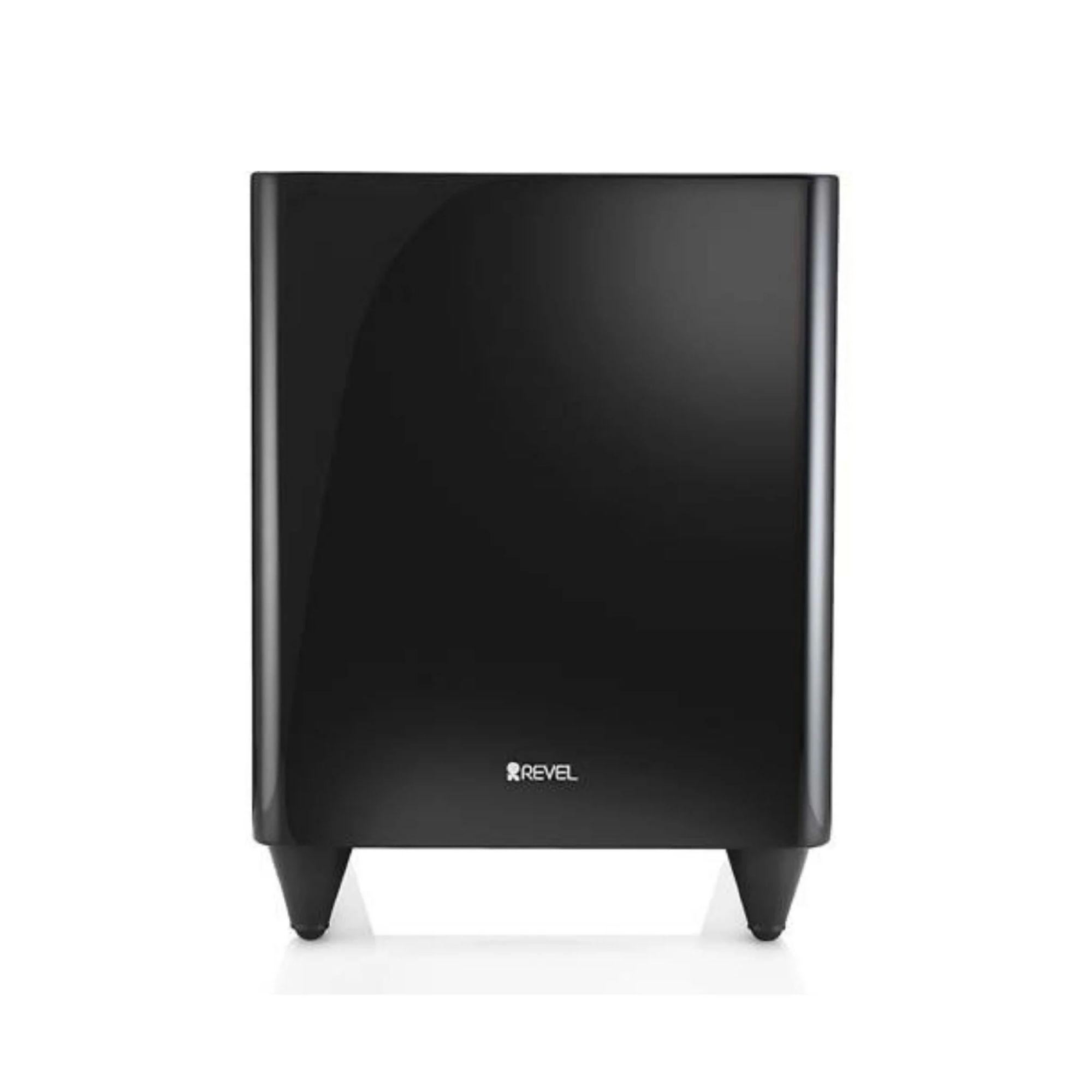

The B8 features an 8-inch down-firing cone transducer and built-in high-performance 200-watt amplifier for impactful and memorable sound quality deserving of the Revel name. The B8 is available in two automotive-grade, high-gloss finishes – white and black – for stylish and elegant appearance. The wireless transmitter and space-efficient design allow you to place it anywhere in your room without having to run a cable to it. Add a B8 to your M8 SP2 and SP5 Satellite Packages for a complete, multi-channel Revel home theater system at unprecedented affordability. The B8 can also be used to complement your Revel Concerta2 and Architectural Series loudspeakers.
SKU: Revel Concerta B8 - Active Sub
Categories: HOME THEATRE, SPEAKERS, Subwoofers
Frequency Response | 45Hz – 200Hz |
Amplifier Power | 200 Watts (continuous), 400 Watts (peak) |
Controls | Volume, Phase, Base Boost |
Depth | 4-1/2" (113mm) |
Connections | LFE (RCA-type); left and right line-level (RCA-type) |
Enclosure Type | Sealed |
External Trigger Input Voltage | 3-30 Volts, AC or DC |
Low Frequency Transducer | 8-inch (200mm) Down-firing Cone |
Subwoofer Power Requirement | 120V, 60Hz (USA), 220V – 240V, 50/60Hz (EU) |
Subwoofer Power Consumption | < 0.5W |
Subwoofer Dimensions (H/W/D) | 13 29/32” x 10 ½” x 10 ½” (353mm x 267mm x267mm) |
Subwoofer Weight | 9Kg |
Transmitter Power Requirement | 100 – 240V AC, 50/60Hz |
Transmitter Power Consumption | < 0.5W |
Transmitter Unit Dimensions (H/W/D) | 1 3/8” x 5” x 3 1/2” (35mm x 127mm x 89mm) |
Transmitter Unit Weight | 0.117Kg |
Transmitter Frequency Range | 2403 – 2472mHz |
Max Transmitting Power | 10dB |
