Black ash and piano gloss black finish options
Single set of 5-way binding posts
Dual 1” wide-flared rear-firing ports
Cloth grille with pin/cup retention system
Elastomer stick-on bumper feet (adds 3mm to height)

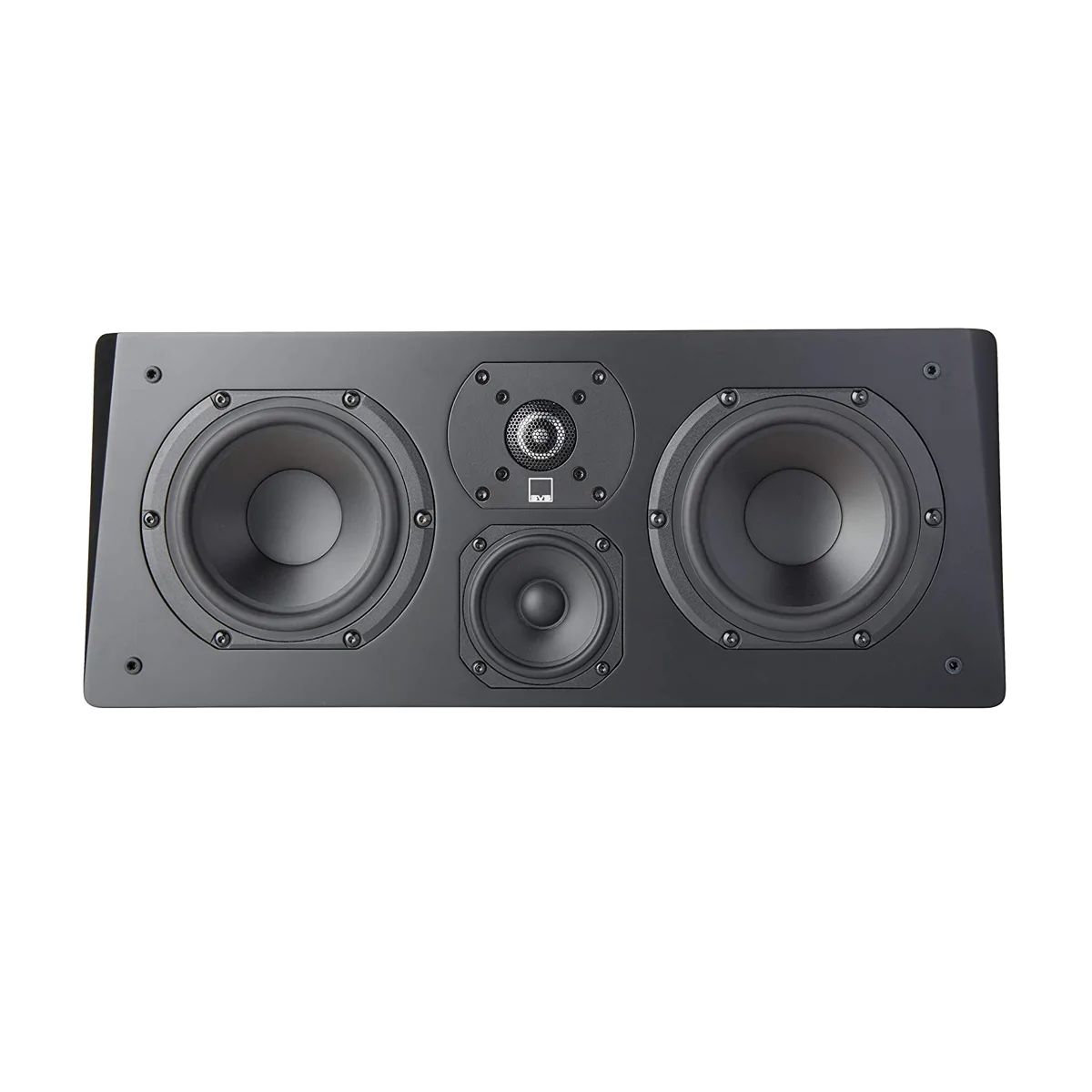

Center Channel Loudspeaker
Cabinet Dimensions: 7.6" (H) X 18.6" (W) X 8.6" (D)
Overall Dimensions: 7.7" (H) X 18.6" (W) X 9.2" (D) (includes grille and bumper feet)
Shipped Dimensions: Shipped Dimensions: 12.2" (H) X 23" (W) X 13.4" (D)
Weight Unboxed: 20.2 pounds
Shipped Weight: 23.3 pounds
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome for exceptional transient response
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
Long stroke motor and suspension for high output
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs
3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)
Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
FEA-optimized cabinet and bracing eliminates resonances
