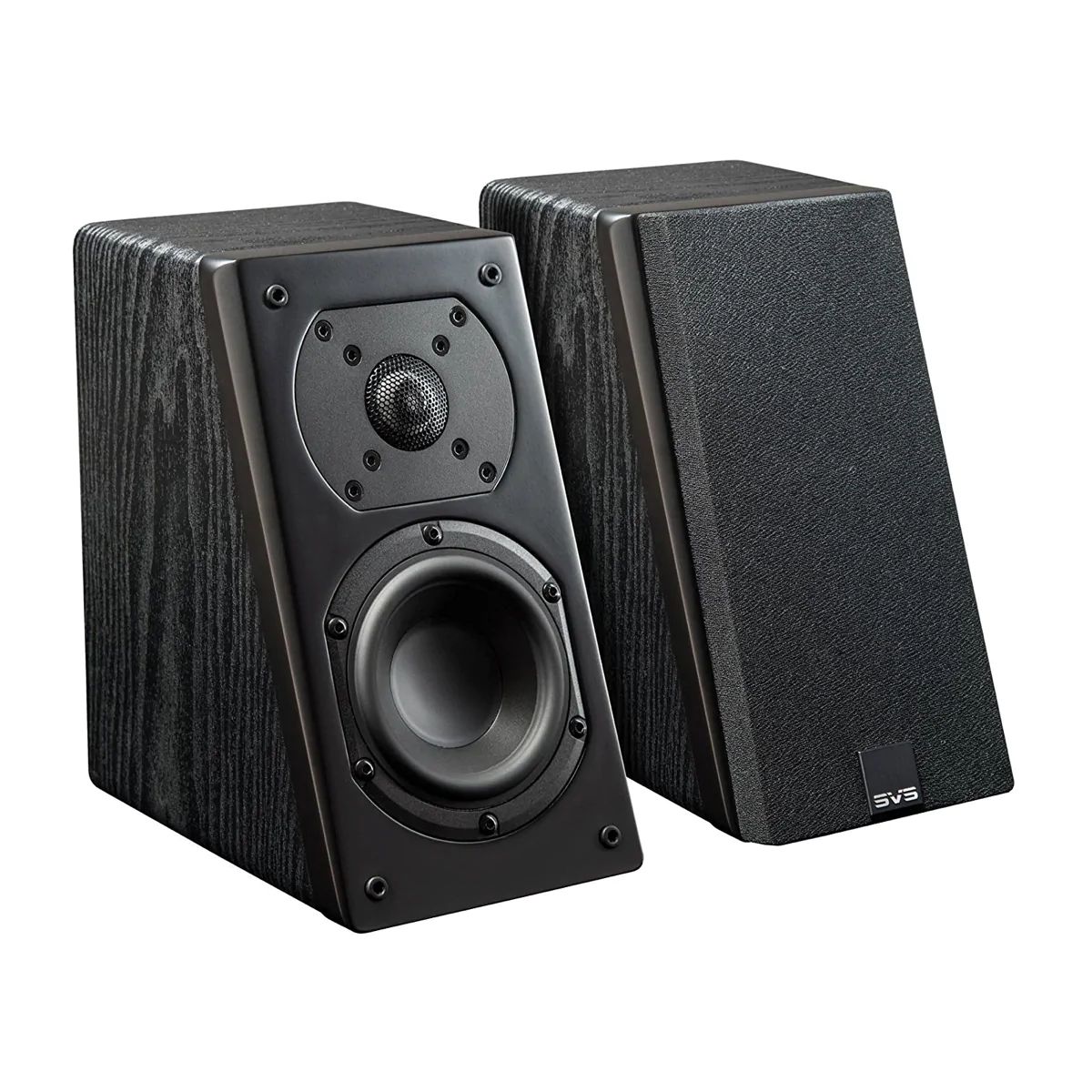

Black Ash, Black Piano Gloss and White Piano Gloss finish options
Single set of 5-way binding posts
1” wide-flared rear-firing port
Cloth grille with pin/cup retention system
Magnetic SVS Logo which can be removed and oriented according to speaker application.
Elastomer stick-on bumper feet (adds 3mm to height)
Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions
1/4" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.
Cabinet Dimensions: 9.25" (H) X 5.44" (W) X 7.88" (D)
Overall Dimensions: 9.4" (H) X 5.44" (W) X 8.33" (D) (includes grille, binding posts and bumper feet)
Overall Dimensions: 9.25" (H) X 5.44" (W) X 8.98" (D) (includes grille and SVS Multi-Angle Wall Bracket)
Shipped Dimensions: 9.30" (H) X 12" (W) X 18" (D)
Weight Unboxed: 7.8 pounds
Shipped Weight: 20 pounds
FEA-optimized diffuser for airy and unveiled presentation
Aluminum dome for exceptional transient response
Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
Vented voice coil former minimizes air compression artifacts
Crossover & Cabinet Specs
2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
Crossover network delivers outstanding phase coherency and time domain behavior
Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes)
Acoustically transparent and FEA optimized grilles minimize diffraction
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved off-axis high frequency response
FEA-optimized cabinet and extra thick MDF bracing eliminate resonances
Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
