This unique Yamaha proprietary sound field creation technology, was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilising its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing that vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of those concert halls on home equipment. Immerse yourself in the astounding realism of your movies, and enter a world of profound theatre sound.

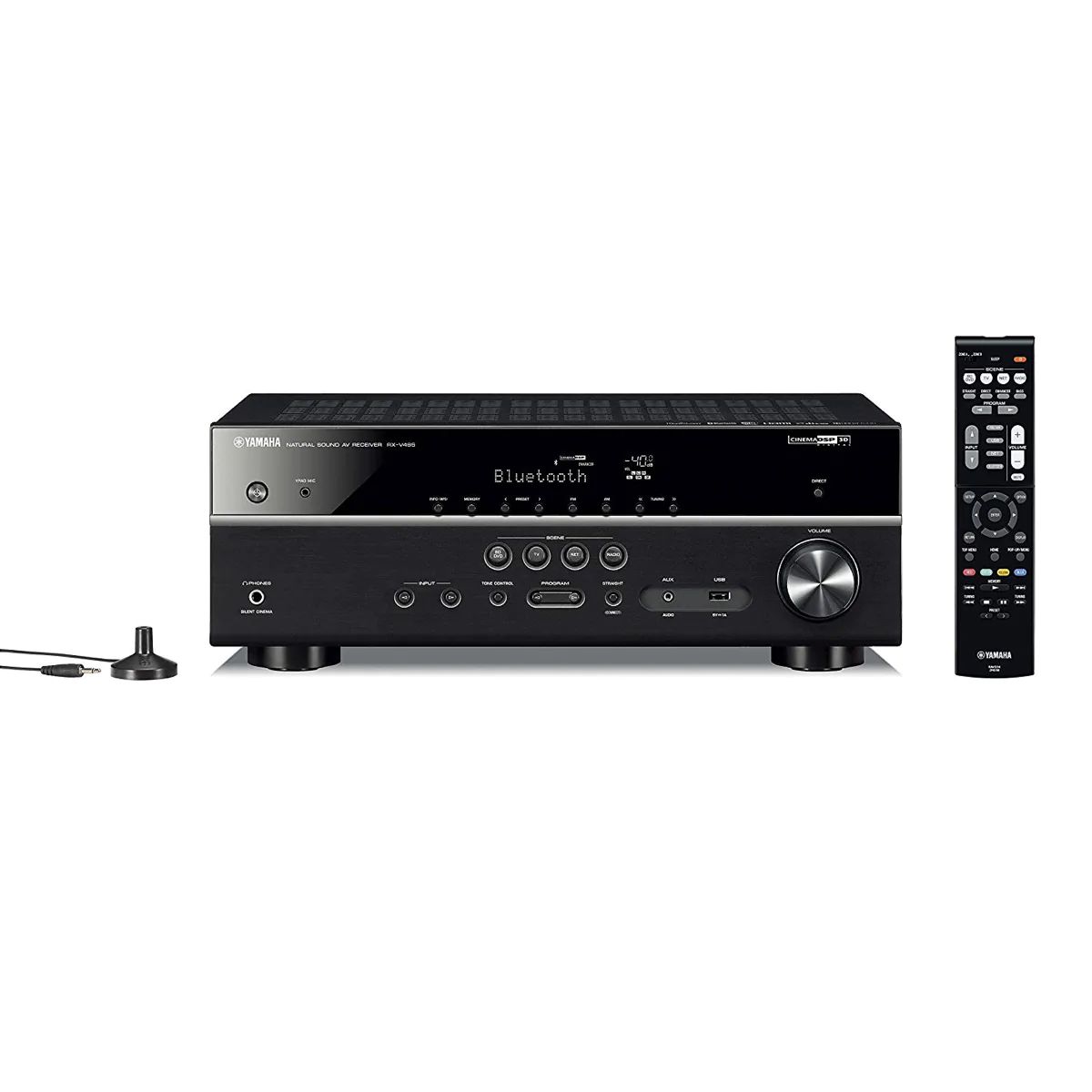

SKU: Yamaha RX-V485 - 5.1-Channel A
Categories: HOME THEATRE, AV RECEIVERS
Channel | 5.1 |
Rated Output Power (1kHz, 1ch driven) | 115 W (6 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.09% THD) |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 145 W (6 ohms, 10% THD) |
Dynamic Power per Channel (8/6/4/2 ohms) | - / 110 / 130 / 160 W |
CINEMA DSP | Yes (3D) |
DSP Programs | 17 |
Dialog Level Adjustment | Yes |
Virtual Presence Speaker | Yes |
SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) |
Dolby TrueHD | Yes |
Dolby Digital Plus | Yes |
DTS-HD Master Audio | Yes |
File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz |
Compressed Music Enhancer | Yes (incl. enhancer for Bluetooth®) |
YPAO sound optimization | Yes |
Adaptive DRC (Dynamic Range Control) | Yes |
Initial Volume & Maximum Volume Setting | Yes |
Bi-amp capability | Yes |
Audio Delay | Yes (0-500 ms) |
DA Converter | Burr-Brown 384 kHz / 32-bit DAC x 4 |
4K Ultra HD Pass-through and upscaling | Yes (4K / 60p, 4:4:4) |
HDMI 3D passthrough | Yes |
HDMI Audio Return Channel | Yes (via future firmware update) |
HDMI upscaling | Yes (HDMI® to HDMI) |
Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes |
MusicCast | Yes |
HDMI Input/Output | 4 / 1 (HDCP2.2, HDR10 / Dolby Vision / HLG and BT.2020 compatible) |
HDMI CEC | Yes |
USB Input | USB Memory, Portable Audio Player |
Network Port | Yes |
Wi-Fi | Yes (2.4 / 5 GHz) |
AirPlay | Yes |
Bluetooth | Yes (SBC / AAC) |
Front AV Input | USB / Mini Jack |
Digital Audio Input/Output: Optical | 1 / 0 |
Digital Audio Input/Output: Coaxial | 2 / 0 |
Analog Audio Input/Output | 4 (front 1) / 0 |
Composite Video Input/Output | 3 / 1 |
Preout | Subwoofer |
Headphone Output | 1 |
FM/AM Tuner | Yes |
On-screen display | Yes (colour OSD) |
SCENE | SCENE (4 sets) |
App Control | Yes (iPhone / iPad / Android phone / tablet) |
Remote Control | Yes |
Zone B Output | Yes |
Standby Power Consumption (IR only) | ≤0.1W |
Auto Power Standby | Yes |
ECO mode | Yes |
Dimensions (W x H x D) | 435 x 161 x 327 mm (with antenna: 435 x 235.5 x 327 mm); 17-1/8” x 6-3/8” x 12-7/8” (with antenna: 17-1/8” x 9-2/8" x 12-7/8”) |
Weight | 7.8 kg; 17.2 lbs. |
