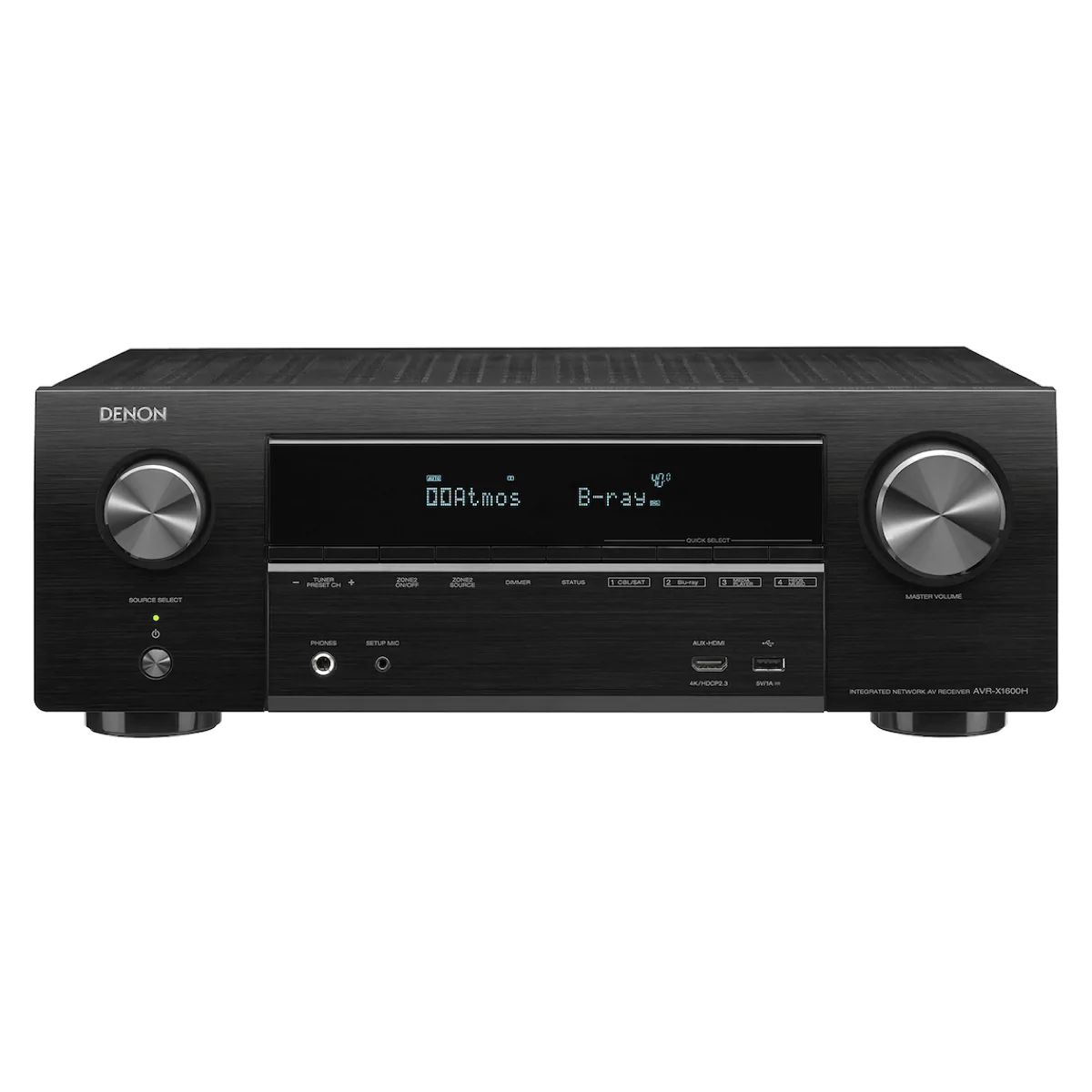

SKU: Denon AVR-X1600H - 7.2 Channel
Categories: HOME THEATRE, AV RECEIVERS
Channels |
7.2 (Object-Based Configuration:: 5.2.2) |
Power Output per Channel | 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD 120 W at 6 Ohms / 1 kHz / 0.7% THD |
Frequency Response |
10 Hz to 100 kHz +1/-3 dB (Direct Mode) |
Speaker Impedance |
4 to 16 Ohms |
DTS Compatibility |
DTS:X |
Dolby Compatibility |
Dolby Atmos |
Auro 3D Support |
No |
Upmixing Technology |
DTS Virtual:X |
HDR Compatibility |
HDR10, Dolby Vision, Hybrid Log Gamma |
Pass-Through Support |
4K60p 4:4:4 (BT.2020) |
Rear A/V Inputs |
5 x HDMI
2 x Optical TOSLINK
1 x Digital Coaxial
2 x RCA Composite
3 x Stereo RCA (Phono) with Ground Screw |
Rear A/V Outputs |
1 x HDMI
1 x RCA Composite
2 x RCA Subwoofer Pre-Out
1 x Stereo RCA Zone 2 Pre-Out |
Front I/O |
1 x 1/4" / 6.35 mm Headphone Output
1 x USB Type-A
1 x 1/8" / 3.5 mm Setup Mic Input
1 x HDMI |
Other Rear I/O |
1 x FM Antenna Terminal
1 x AM Antenna Terminal
1 x RJ45 (Ethernet) Input
1 x 1/8" / 3.5 mm (IR) Input |
Speaker Connectors |
7 x Binding Post Pairs |
HDCP Support |
Version 2.2 |
HDMI CEC |
Yes |
Input Impedance |
47 kOhms |
Input Sensitivity |
200 mV |
Signal to Noise Ratio |
98 dB (A-Weighted / Direct Mode) |
Wi-Fi/Bluetooth |
Yes |
Tuner Type |
AM, FM |
Radio Frequencies |
AM: 520 to 1611 kHz
FM: 87.5 to 108 MHz |
Dimensions (W x H x D) |
17.1 x 6.0 x 13.3" / 434.3 x 152.4 x 337.8 mm |
Weight |
19 lb / 8.6 kg |
