On-screen Display
This system features a high-precision font, letting you view detailed information of your music contents, and has multi-lingual capability for viewing in English, Japanese, French, German, Spanish, Russian, Italian, or Chinese.
AV Setup Guide
No worries, no confusion. Use this special app and get expert assistance with cable connections between the AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments

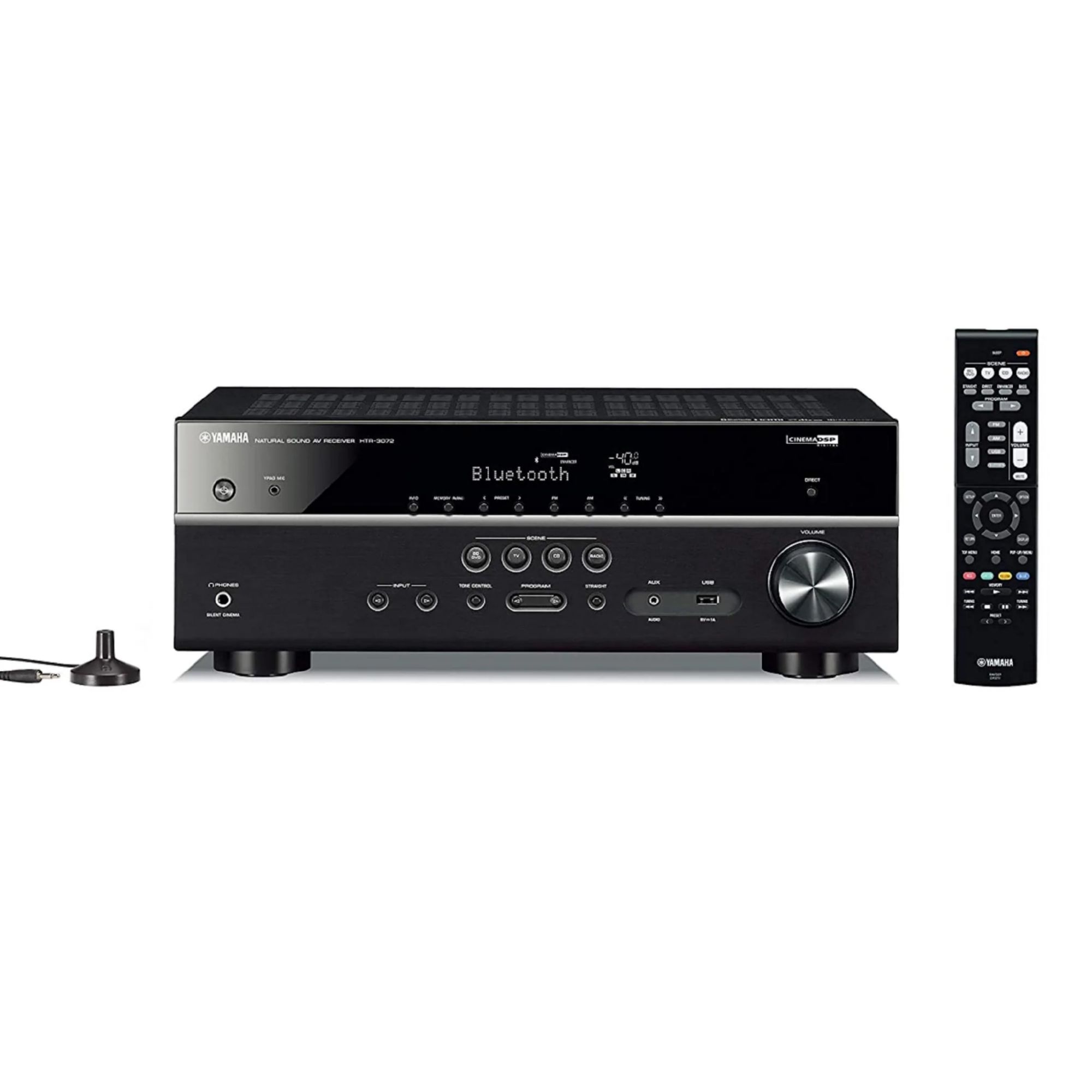

SKU: Yamaha HTR 3072 - 5.1 Channel
Categories: HOME THEATRE, AV RECEIVERS
Standby Power Consumption (IR only) | ≤0.2W |
Auto Power Standby | Yes |
ECO mode | Yes |
Dimensions (W x H x D) | 435 x 161 x 315 mm; 17-1/8” x 6-3/8” x 12-3/8” |
Weight | 7.7Kgs |
Channel | 5.1 |
Rated Output Power (1kHz, 1ch driven) | 100 W (6 ohms, 0.9% THD) |
Rated Output Power (20Hz-20kHz, 2ch driven) | 70 W (6 ohms, 0.09% THD) |
Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 135 W (6 ohms, 10% THD) |
Dynamic Power per Channel (8/6/4/2 ohms) | - / 110 / 130 / 150 W |
On-screen display | Yes (colour OSD) |
SCENE | SCENE (4 sets) |
Remote Control Unit | Yes |
